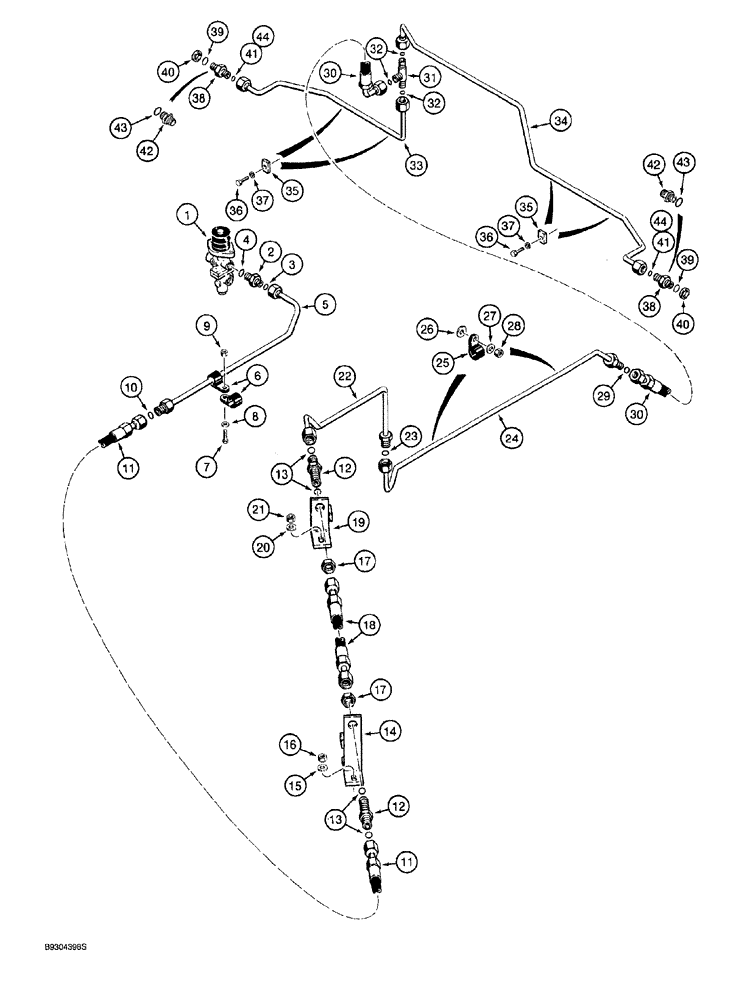

Запчасти Case 921 (7-016) - MAIN BRAKE HYDRAULIC CIRCUIT, MAIN BRAKE VALVE TO FRONT AXLE (07) - BRAKES

1

L129699

VALVE

ASSY., brake, main, see Figure 7-026

1шт.

2

201-115

HYD CONNECTOR,1" - 14 Male ORFS x 3/4" - 16 Male ORB

ADAPTER straight, 1-14 face seal x 3/4-16 inch O-ring boss, Includes: Ref. 3, 4

2шт.

3

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

5

L129765

TUBE,15.87 mm OD

brake valve upper port to hose

1шт.

6

129083R1

CLAMP

P-type, 5/8 inch ID, Replaces: 49885

2шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

8

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

9

231-1446

NUT,3/8" - 16, Gr 5

Replaces: 131-217

1шт.

10

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

11

L129776

HOSE ASSY.

25-5/8 inch (750 mm) long, Serial Range: tube-adapter

1шт.

12

201-123

HYD CONNECTOR,1"-14, Blkhd, ORFS

ADAPTER straight, 1-14 inch face seal x bulkhead face seal, Includes: Ref. 13

2шт.

13

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

14

L129300

SUPPORT

BRACKET mounting, hose, rear chassis

1шт.

15

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

16

231-1446

NUT,3/8" - 16, Gr 5

Replaces: 131-217

2шт.

17

201-919

BHD LOCK NUT,1" - 14

2шт.

18

L129762

HOSE ASSY.

17-13/16 inch (452 mm) long, Serial Range: adapter-adapter

1шт.

19

102803A1

SUPPORT

BRACKET mounting, hose, front chassis, Replaces: L128846

1шт.

20

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

1шт.

21

231-1448

NUT,1/2"-13, GB

hex, self-locking, NC, Replaces 131-217

1шт.

22

L129786

TUBE,15.87 mm OD

adapter to front chassis

1шт.

23

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

24

L129788

TUBE,15.87 mm OD

front chassis to front brake hose

1шт.

25

129083R1

CLAMP

P-type, 5/8 inch ID, Replaces: 49885

2шт.

26

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

2шт.

27

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

28

231-1446

NUT,3/8" - 16, Gr 5

2шт.

29

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

30

L129763

HOSE ASSY.

12-5/8 inch (320 mm) long, front chassis, Serial Range: tube-tee

1шт.

31

201-409

TEE,13/16"-16 ORFS

13/16-16 inch face seal branch x face seal x face seal, Includes: Ref. 32

1шт.

32

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

33

L129624

TUBE,12.7 mm OD

brake, left-hand front

1шт.

34

L129622

TUBE,12.7 mm OD

brake, right-hand front

1шт.

35

L129191

CLAMP

TAB brake tube retaining

4шт.

36

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

37

492-11025

LOCK WASHER,1/4"

4шт.

38

L128668

ADAPTER

straight, special, Includes: Ref. 39 - 41, no longer available, order Ref. 42

2шт.

39

100055A1

O-RING,151mm ID x 26mm Width

adapter

1шт.

40

S301414

BACK-UP RING

1шт.

41

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end

1шт.

42

120782A1

ADAPTER

straight, special, Includes: Ref. 43

2шт.

43

120879A1

O-RING,0.546" ID x 0.685" OD x 0.139"

O-RING adapter

1шт.

44

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Not included with 120782A1 adapter

2шт.
