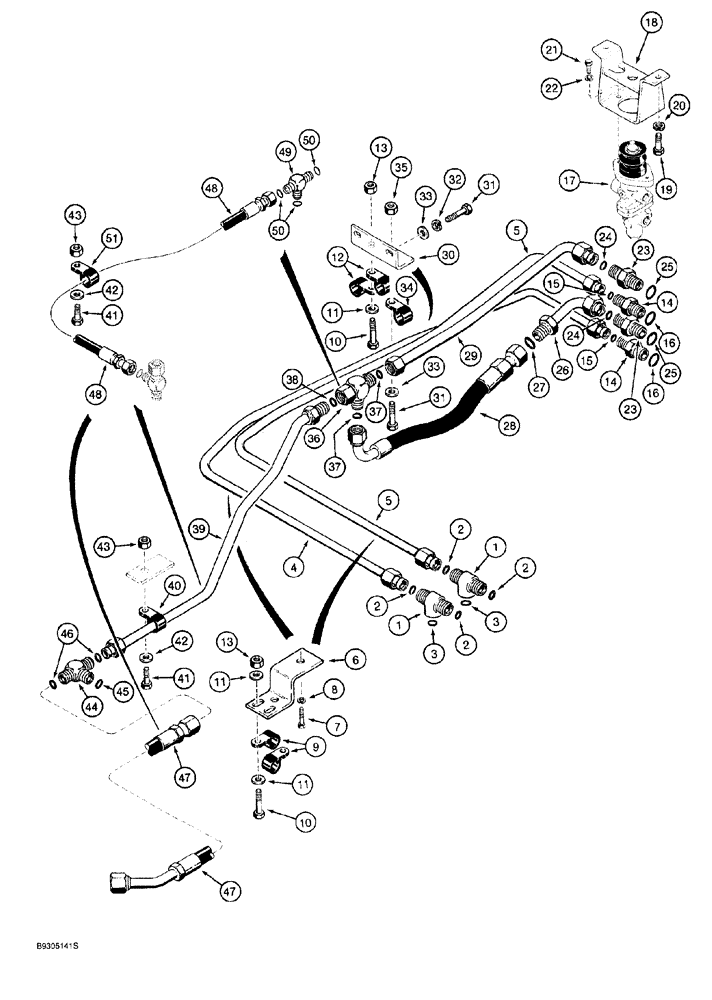

Запчасти Case 921 (7-014) - MAIN BRAKE HYDRAULIC CIRCUIT, TEE TO MAIN BRAKE VALVE (07) - BRAKES

1

L129806

TEE

special, Includes: Ref. 2, 3

2шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end

2шт.

4

L129771

TUBE,12.7 mm OD

to main brake valve upper port

1шт.

5

L129769

TUBE,12.7 mm OD

to main brake valve lower port

1шт.

6

L129538

SUPPORT

BRACKET mounting, tube

2шт.

7

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

8

492-11031

LOCK WASHER,5/16"

2шт.

9

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

P-type, Replaces S77322

4шт.

10

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

5шт.

11

496-21041

WASHER,13/32" x 13/16" x .089", HDN

9шт.

12

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

P-type, Replaces S77322

2шт.

13

231-1446

NUT,3/8" - 16, Gr 5

Replaces: 131-217

5шт.

14

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes Ref. 15, 16

2шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

17

L129699

VALVE

ASSY., brake, main, see Figure 7-026

1шт.

18

1990621C2

GUIDE

BRACKET brake rod

1шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

20

492-11038

LOCK WASHER,3/8"

2шт.

21

326-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

2шт.

22

492-11031

LOCK WASHER,5/16"

2шт.

23

201-115

HYD CONNECTOR,1" - 14 Male ORFS x 3/4" - 16 Male ORB

ADAPTER straight, 1-14 face seal x 3/4-16 inch O-ring boss, Includes: Ref. 24, 25

2шт.

24

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end

1шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

26

L129778

TUBE,15.87 mm OD x 122, 63 mm L

main brake valve to brake return hose

1шт.

27

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

28

L129789

HOSE ASSY.

23-7/8 inch (605 mm) long, brake return, Serial Range: tube-tee

1шт.

29

L129780

TUBE,15.87 mm OD

main brake valve to tee

1шт.

30

L128742

SUPPORT

BRACKET mounting, tube

1шт.

31

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

32

492-11038

LOCK WASHER,3/8"

2шт.

33

496-21041

WASHER,13/32" x 13/16" x .089", HDN

3шт.

34

129083R1

CLAMP

P-type, 5/8 inch ID

1шт.

35

231-1446

NUT,3/8" - 16, Gr 5

Replaces: 131-217

1шт.

36

201-433

TEE,1"-14 ORFS x 1"-14 Sw Run

1-14 inch face seal branch x face seal x swivel face seal, Includes: Ref. 37, 38, Serial Range: -JAK0026022

1шт.

37

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end

2шт.

38

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

39

L129782

TUBE,15.87 mm OD

brake return, tee to tee, Serial Range: -JAK0026022

1шт.

40

129083R1

CLAMP

P-type, 5/8 inch ID, Serial Range: -JAK0026022

1шт.

41

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

42

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

43

231-1446

NUT,3/8" - 16, Gr 5

Replaces: 131-217

1шт.

44

201-436

TEE,1"-14 x 13/16"-16 Br, ORFS

13/16-16 face seal branch x 1-14 inch face seal x face seal, Includes: Ref. 45, 46, Serial Range: -JAK0026022

1шт.

45

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Branch end

1шт.

46

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Run end

2шт.

47

L129773

HOSE ASSY.

25 inch (635 mm) long, to reservoir, Serial Range: -JAK0026022

1шт.

48

108168A1

HOSE ASSY.

65-3/4 inch (1670 mm) long, to reservoir, Start Serial: JAK0026022

1шт.

49

201-415

TEE,1"-14 ORFS

1-14 inch face seal branch x face seal x face seal, Includes: Ref. 50, Start Serial: JAK0026022

1шт.

50

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

51

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

hose, uses Refs. 41 , 42, and 43 hardware, Start Serial: JAK0026022

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.
