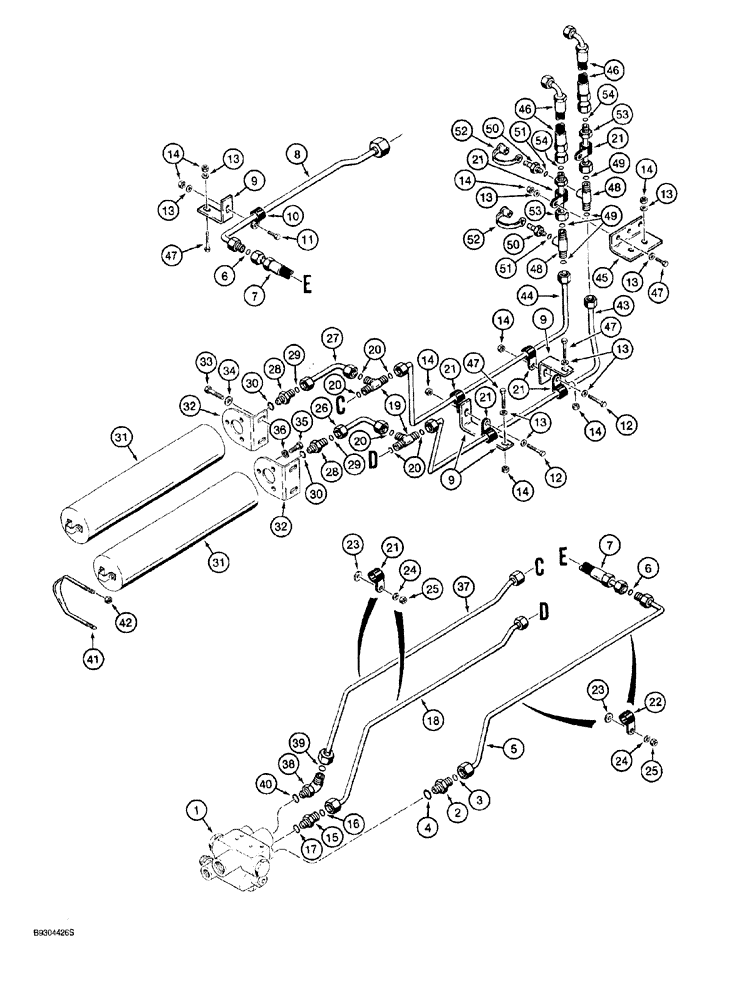

Запчасти Case 921 (7-010) - MAIN BRAKE HYDRAULIC CIRCUIT, ACCUMULATOR VALVE TO TEE AND COOLER BYPASS VALVE (07) - BRAKES

1

L128116

VALVE

ASSY., accumulator, parts list Figure 7-022, see Figure 7-008 for mounting hardware

1шт.

232531A1R

REMAN-HYD VALVE

921, Reman for New P/N L128116

1шт.

232531A1C

CORE-VALVE HYD

Return Number

1шт.

2

201-131

HYD CONNECTOR,1"-12 ORFS x 9/16"-18 ORB

ADAPTER straight, 1-14 face seal x 1-1/16-12 inch O-ring boss, Includes: Ref. 3, 4

1шт.

3

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss end

1шт.

5

L129174

TUBE,15.87 mm OD

to cooler bypass valve at accumulator valve

1шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

7

L128657

HOSE ASSY.

tube to tube, 31-3/8 inch (796 mm) long

1шт.

8

L129176

TUBE,15.87 mm OD

to cooler bypass valve at cooler bypass valve

1шт.

9

L129205

SUPPORT

BRACKET mounting, tube

3шт.

10

129083R1

CLAMP

P-type, 5/8 inch ID

1шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

12

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

13

496-21041

WASHER,13/32" x 13/16" x .089", HDN

12шт.

14

231-1446

NUT,3/8" - 16, Gr 5

Replaces: 131-217

9шт.

15

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes Ref. 16, 17

1шт.

16

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

18

L128627

TUBE,12.7 mm OD

to lower accumulator

1шт.

19

201-409

TEE,13/16"-16 ORFS

13/16-16 inch face seal branch x face seal x face seal, Includes: Ref. 20

2шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

21

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

P-type, Closed, Replaces S77322

8шт.

22

129083R1

CLAMP

P-type, 5/8 inch ID, Replaces: 49885

2шт.

23

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

4шт.

24

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

25

231-1446

NUT,3/8" - 16, Gr 5

Replaces: 131-217

4шт.

26

L128629

TUBE,12.7 mm OD x 110, 82 mm L

to lower accumulator

1шт.

27

L128633

TUBE,12.7 mm OD x 147, 64 mm L

to upper accumulator

1шт.

28

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes Ref. 29, 30

2шт.

29

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end

1шт.

30

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

31

L129905

ACCUMULATOR

ASSY., brake, see Figure 7-028

2шт.

32

L129001

SUPPORT

BRACKET mounting, accumulator

2шт.

33

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

34

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

4шт.

35

414-814

BOLT,Hex, 1/2" - 20 x 7/8", Gr 5

6шт.

36

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

37

L128631

TUBE,12.7 mm OD

to upper accumulator

1шт.

38

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Incl. Ref. 39, 40

1шт.

39

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end

1шт.

40

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

41

L128472

U-BOLT

special, accumulator retaining

2шт.

42

231-1446

NUT,3/8" - 16, Gr 5

Replaces: 131-217

4шт.

43

L130019

TUBE,12.7 mm OD

to tee with quick disconnect coupling

1шт.

44

L130021

TUBE,12.7 mm OD

to tee with quick disconnect coupling

1шт.

45

L128638

SUPPORT

BRACKET mounting

1шт.

46

L129763

HOSE ASSY.

12-5/8 inch (320 mm) long, tubes at accumulator valve to tubes at main brake valve

2шт.

47

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

5шт.

48

L129806

TEE

special, Includes: Ref. 49

2шт.

49

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end

2шт.

S243647

COUPLING

ASSY., quick disconnect, Includes: Ref. 50 - 52

2шт.

50

NSS

NOT SOLD SEPARAT

COUPLING quick disconnect

1шт.

52

S301201

CAP

dust, Aero-Quip stamped on coupling, if used

1шт.

52

H434163

DUST CAP

PD361 stamped on coupling, if used

1шт.

53

L130023

TUBE,12.7 mm OD x 160 mm L

tee with quick disconnect coupling to lower port brake valve hose

2шт.

54

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

51

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
