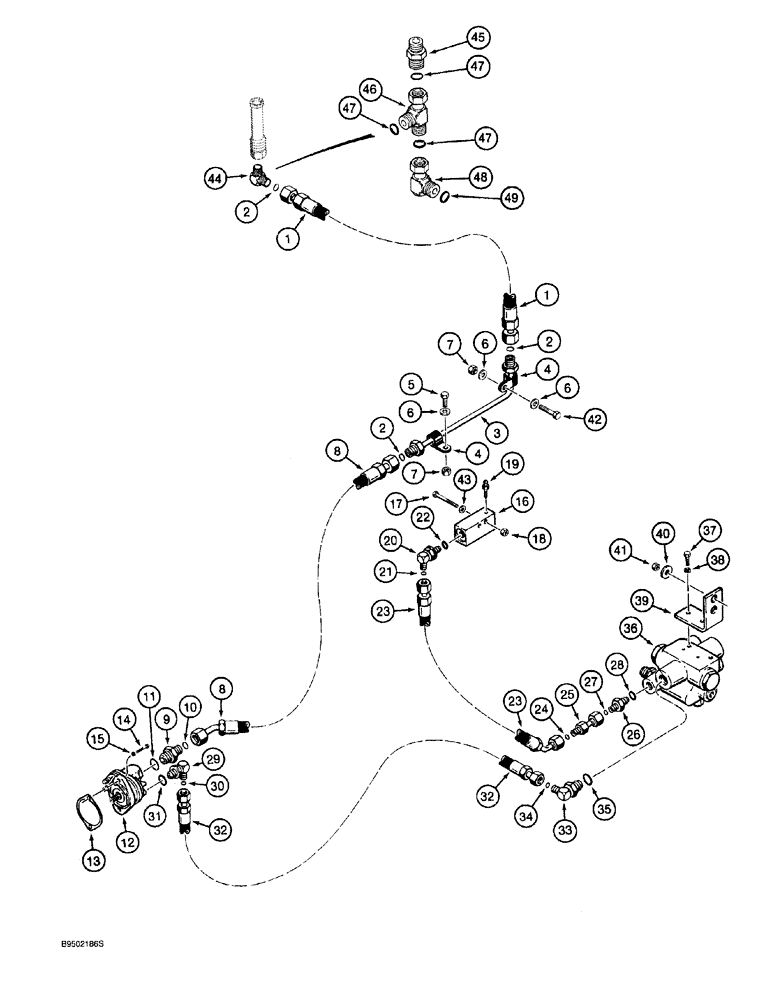

Запчасти Case 921 (7-008) - MAIN BRAKE HYDRAULIC CIRCUIT, RESERVOIR TO PUMP TO ACCUMULATOR VALVE (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
L128500
HOSE ASSY.
23 inch (584 mm) long, brake motor supply at reservoir
1шт.
2
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
3шт.
3
L129929
TUBE,15.87 mm OD x 407, 121 mm L
brake motor supply
1шт.
4
129083R1
CLAMP
P-type, 5/8 inch ID
2шт.
5
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
2шт.
6
496-21041
WASHER,13/32" x 13/16" x .089", HDN
3шт.
7
231-1446
NUT,3/8" - 16, Gr 5
Replaces: 131-217
2шт.
8
L129657
HOSE ASSY.
23-1/16 inch (585 mm) long, tube to brake motor
1шт.
9
201-114
HYD CONNECTOR,1" - 14 Male ORFS x 1-5/16" - 12 Male ORB
ADAPTER straight, 1-14 face seal x 1-5/16-12 inch O-ring boss, Includes: Ref. 10, 11
1шт.
10
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
Face end
1шт.
12
L129931
PUMP
ASSY., brake, see Figure 7-024
1шт.
13
A58617
GASKET
brake pump motor
1шт.
14
L125431
HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 8.8
hex socket, special, 10 - 1.5 x 35 mm
2шт.
15
892-11010
LOCK WASHER,M10
2шт.
16
L128941
BLOCK ASSY.
MANIFOLD brake system bleed
1шт.
17
413-440
BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5
2шт.
18
231-1444
NUT,1/4"-20, GB
Replaces 131-71
2шт.
19
A41491
BLEEDER,1/4" - 28 x 23.37mm
air bleed
1шт.
20
201-324
ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS
Includes Ref. 21, 22
1шт.
21
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
Face end
1шт.
23
L129348
HOSE ASSY.
12-13/16 inch (325 mm), Serial Range: long,-manifold
1шт.
24
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
1шт.
25
L129403
TUBE,6.35 mm OD x 50 mm L
TUBE to manifold hose
1шт.
26
201-119
FITTING,9/16" - 18 Male ORFS x 3/4" - 16 Male ORB
ADAPTER straight, 9/16-18 face seal x 3/4-16 inch O-ring boss, Includes: Ref. 27, 28
1шт.
27
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
Face end
1шт.
28
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
Boss end
1шт.
29
201-326
ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB
ELBOW, 90°, 13/16-16 face seal x 7/8-14 inch adj O-ring boss, Includes: Ref. 30, 31
1шт.
30
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
Face end
1шт.
31
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
Boss end
1шт.
32
L128606
HOSE ASSY.
17-3/4 inch (450 mm) long, pump to accumulator valve
1шт.
33
201-327
ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 1-1/16" - 12 Male ORB
90°, 13/16-16 face seal x 1-1/16-12 inch adj O-ring boss, Includes: Ref. 34, 35
1шт.
35
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
Boss end
1шт.
36
L128116
VALVE
ASSY., accumulator, see Figure 7-022
1шт.
232531A1R
REMAN-HYD VALVE
921, Reman for New P/N L128116
1шт.
232531A1C
CORE-VALVE HYD
Return Number
1шт.
37
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
2шт.
38
492-11038
LOCK WASHER,3/8"
2шт.
39
L129987
BRACKET
mounting
1шт.
40
496-21066
WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk
Hardened
2шт.
41
231-1448
NUT,1/2"-13, GB
hex, self-locking, NC
2шт.
42
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
1шт.
43
495-21031
WASHER,1/4"
flat, 5/16 x 3/4 x 1/16 inch
1шт.
44
L129305
FITTING
ELBOW, 90°, special, includes O-ring, models with standard steering
1шт.
45
127811A1
FITTING
ADAPTER special, models with auxiliary steering
1шт.
46
201-418
TEE,1-7/16" - 12 ORFS x 1-7/16" - 12 ORFS x 1-7/16" - 12 ORFS
1-7/16-12 inch face branch x face x swivel face, models with auxiliary steering
1шт.
47
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
3шт.
48
201-368
ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1-7/16" - 12 Female ORFS
90°, 1-14 face seal x 1-7/16-12 inch swivel face seal, models with auxiliary steering
1шт.
49
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
22
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
Boss end
1шт.
Выбрано товаров: 51
