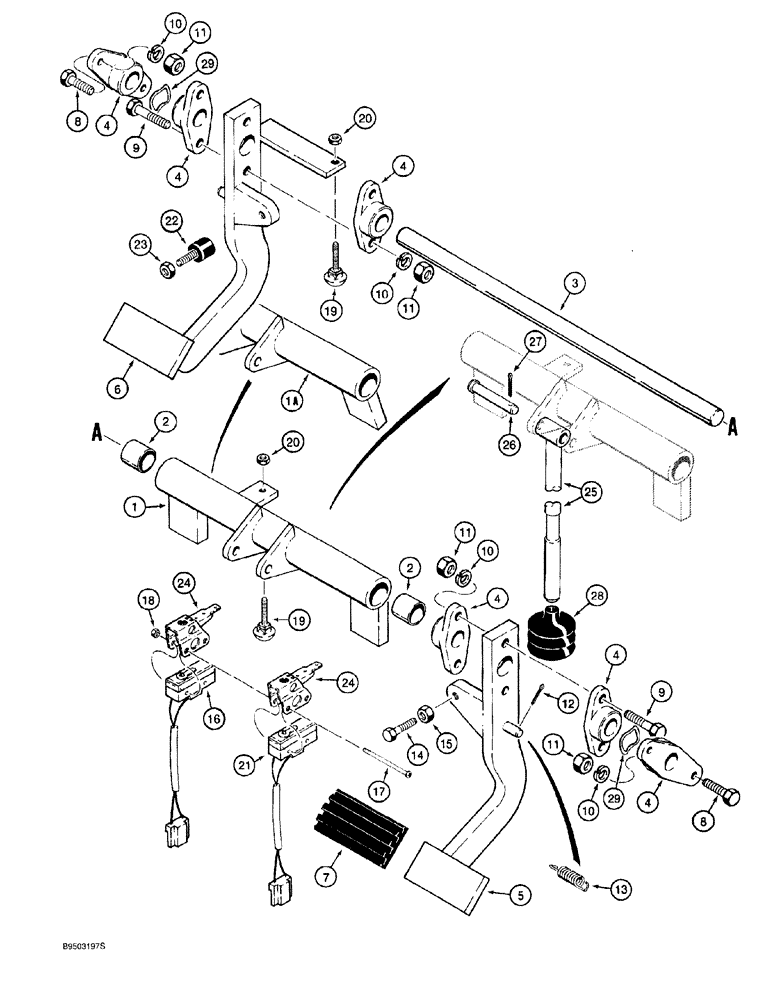

Запчасти Case 921 (7-006) - BRAKE PEDALS AND BRAKE SWITCHES (07) - BRAKES

1

1344312C2

SHAFT ASSY.

brake, outer, pedal mounting, Includes: Ref. 2, used on models with cabs and canopies, Serial Range: -JEE0041769

1шт.

1a

113658A1

SHAFT ASSY.

brake, outer, pedal mounting, Includes: Ref. 2, used on models with cabs and canopies, Start Serial: JEE0041769

1шт.

2

1280291C1

BUSHING,19.13mm ID x 22.3mm OD x 19.05mm L

3/4 inch (19 mm) diameter

2шт.

3

1339999C3

SHAFT

brake, inner

1шт.

4

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

BEARING brake pedal

6шт.

5

1970044C1

PEDAL

brake, right hand

1шт.

6

1977913C1

PEDAL

brake, left hand

1шт.

7

1958503C1

PROTECTIVE COVER

PAD pedal

2шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

9

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

10

492-11038

LOCK WASHER,3/8"

8шт.

11

425-106

NUT,3/8"-16, Cl 5

8шт.

12

432-616

COTTER PIN,3/32" x 1"

4шт.

13

1970023C1

SPRING

brake pedal, mounts to clevis pin in upper pedestal cover

2шт.

14

537326R1

BOLT

BOLT hex, special, 5/16 NC x 1-1/4 inch

2шт.

15

425-105

NUT,5/16"-18, G5

2шт.

16

A187827

IGNITION SWITCH

SWITCH - brake, declutch

1шт.

17

440-10636

SCREW,Cross Pan Hd, #6-32 x 2 1/4"

SCREW machine, pan Phillips, No. 6 NC x 2-1/4 inch

2шт.

18

225-14106

NUT,#6-32

2шт.

19

A181036

SQUARE BOLT

carriage, special

2шт.

20

425-144

JAM NUT,Jam, 1/4"-20, G5

2шт.

21

A187830

SWITCH

SWITCH - brake lamps

1шт.

22

F44935

BUMPER

stop, brake pedal, mounted to cab or canopy

2шт.

23

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

24

A187828

ACTIVATOR

ACTUATOR switch, brake lamp and declutch

2шт.

25

1344307C3

ROD

brake valve

1шт.

26

27-6225

CLEVIS PIN,3/8" x 2 1/4"

clevis, hardened, 3/8 x 2-1/4 inch

1шт.

27

432-616

COTTER PIN,3/32" x 1"

1шт.

28

A145931

BELLOWS

BOOT brake rod

1шт.

29

G49413

WASHER

wave, if used

2шт.
