(2-003C) - RADIATOR ASSEMBLY

Запчасти Case 921 (2-003C) - RADIATOR ASSEMBLY (02) - ENGINE

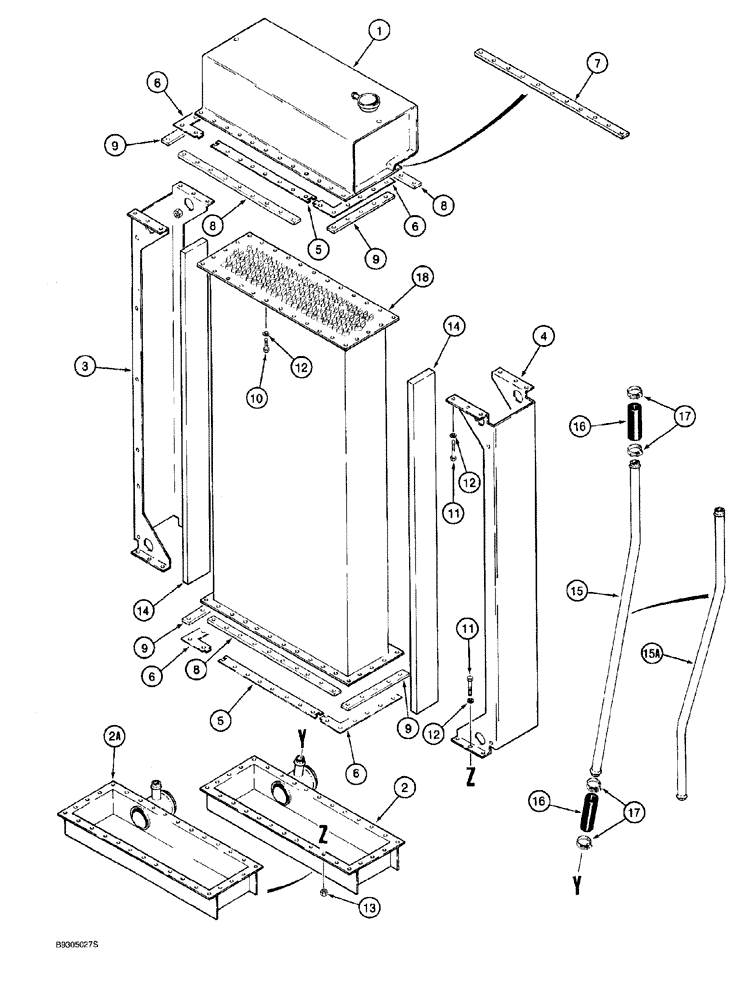

Схема запчастей Case 921 - (2-003C) - RADIATOR ASSEMBLY (02) - ENGINE
11
17
16
14
18
14
16
12
6
15
5
13
4
9
3
9
11
17
9
9
8
7
6
8
15a
6
6
12
10
2
2a
12
5
1
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

L129697

RADIATOR

ASSY., engine cooling, Includes: Ref. 1 - 18, Serial Range: -JAK0026022

1шт.

106518A1

RADIATOR

ASSY., engine cooling, Includes: Ref. 1 - 18, Start Serial: JAK0026022

1шт.

1

106491A1

RESERVOIR

radiator, upper

1шт.

2

106492A1

RESERVOIR

radiator, lower, Serial Range: -JAK0026022

1шт.

2a

117978A1

RESERVOIR

radiator, lower, Start Serial: JAK0026022

1шт.

3

106493A1

FRAME

left-hand, with 12 weld nuts

1шт.

4

106494A1

FRAME

right-hand, with 4 weld nuts

1шт.

5

106495A1

STRIP-GASKET

strip, upper and lower reservoirs

4шт.

6

106496A1

GASKET

end, upper and lower reservoirs

4шт.

7

106498A1

CONNECTING STRIP

PLATE tapped, 572 mm long

1шт.

8

106499A1

CONNECTING STRIP

PLATE reinforcement, 524 mm long

4шт.

9

106500A1

CONNECTING STRIP

PLATE reinforcement, 206 mm long

4шт.

10

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

36шт.

11

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

24шт.

12

492-11031

LOCK WASHER,5/16"

60шт.

13

329-105

NUT,5/16"-18, G8

48шт.

14

106501A1

STIFFENER

INSULATOR vibration dampner, core

2шт.

15

106502A1

TUBE,25.4 mm OD, 246.5, 780 mm Length

bypass, Serial Range: -JAK0026022

1шт.

15a

117979A1

TUBE,25.4 mm OD, 1020, 152 mm Length

bypass, Start Serial: JAK0026022

1шт.

16

106630A1

RADIATOR HOSE

2шт.

17

106515A1

MOUNTING CLIP

CLAMP hose

4шт.

18

106503A1

RADIATOR

CORE, includes header

1шт.
