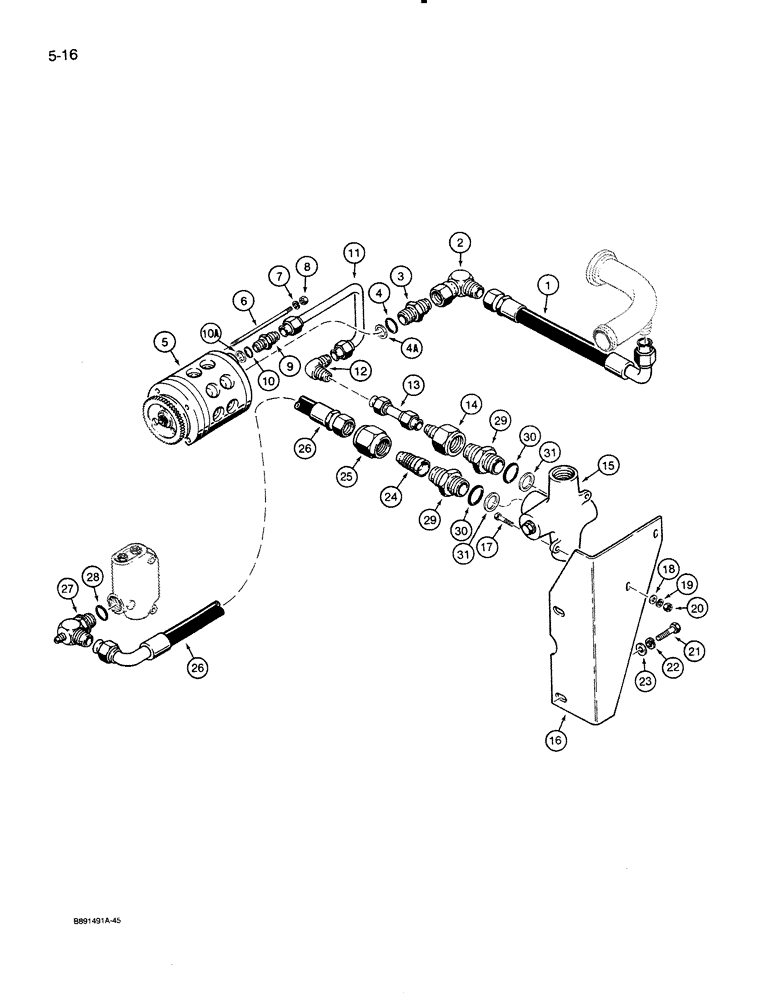

Запчасти Case 821 (5-016) - AUXILIARY STEERING HYDRAULIC CIRCUIT AUXILIARY STEERING HYDRAULIC CIRCUIT PRIOR TO P.I.N. JAK0024165 (05) - STEERING

1

L125585

HOSE

- 440 mm long, steering pump to auxiliary pump

1шт.

2

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 deg, 1-5/16-12 inch flare x swivel flare

1шт.

3

L123803

FITTING

ADAPTER - 1-5/16-12 flare x 33 mm O-ring boss, Includes: Ref. 4 and 4A

1шт.

4

238-6122

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

1шт.

4a

S301045

OIL SEAL

RING - backup

1шт.

5

L117961

PUMP, HYDRAULIC

PUMP - auxiliary, ground drive, parts list Figure 5-022

1шт.

6

L125628

STUD

- 8 mm x 170 mm long, auxiliary pump

4шт.

7

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

8

825-1408

NUT,M8, Cl 8

4шт.

9

L123801

FITTING

ADAPTER - 1-1/16-12 flare x 22 mm O-ring boss, Includes: Ref. 10 and 10A

1шт.

10

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

10a

S301044

OIL SEAL

RING - backup

1шт.

11

L125614

PIPE,19.04 mm OD x 213, 131 mm L

TUBE - at auxiliary pump to auxiliary steering valve

1шт.

12

218-476

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC

- 90 degree, 1-1/16-12 inch flare

1шт.

13

L125778

TUBE,19.04 mm OD x 128 mm L

- auxiliary pump to auxiliary valve, at valve

1шт.

14

218-727

REDUCER,37 Degree, 1 5/8"-12, Fem x 1 1/16"-12 Male

ADAPTER - reducing, 1-5/8-12 str thread x 1-1/16-12 inch flare

1шт.

15

L125515

SELECTOR

VALVE - auxiliary steering, parts list Figure 5-024

1шт.

16

L125620

SUPPORT

BRACKET - mounting, auxiliary steering valve

1шт.

17

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

18

D41740

WASHER

- flat, 25/64 x 1 x 7/64 inch, hardened

2шт.

19

492-11038

LOCK WASHER,3/8"

2шт.

20

425-106

NUT,3/8"-16, Cl 5

2шт.

21

614-20045

BOLT,Hex, M20 x 2.5 x 45mm, Cl 8.8, Full Thd

- hex, 20 mm - 2.5 x 45 mm

2шт.

22

892-11020

LOCK WASHER,M20

WASHER, LOCK, M20

2шт.

23

895-11020

WASHER,M20 x 37 x 3

- flat, 22 x 37 x 3 mm

2шт.

24

218-788

REDUCER,37º, 1 1/4" x 1" Tube

ADAPTER - reducing, 1-1/4 tube OD x 1-5/16-12 inch flare, Includes: Ref. 25

1шт.

25

218-349

TUBE NUT,37 Degree, 1 5/8"-12, Type B

NUT - hex, 1-5/8 NF

1шт.

26

L125581

HOSE

- 750 mm long, supply, auxiliary steering valve to flow control valve

1шт.

27

218-5579

TEE,37 Degree, 9/16"-18, 1 5/16"-12, O-Ring Run, 1 5/16"-12

- 1-5/16-12 fl branch x adj O-ring x 9/16-18 inch flare, Includes: Ref. 28

1шт.

28

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

29

L125575

FITTING

ADAPTER - 1-5/8-12 inch flare x 42 mm O-ring boss, Includes: Ref. 30 and 31

2шт.

30

238-6128

O-RING,0.103" Thk x 1.487" ID, -128, Cl 6, 90 Duro

1шт.

31

S301047

BACK-UP RING,1.728" ID x 1.961" OD x 0.8"

RING - backup

1шт.
