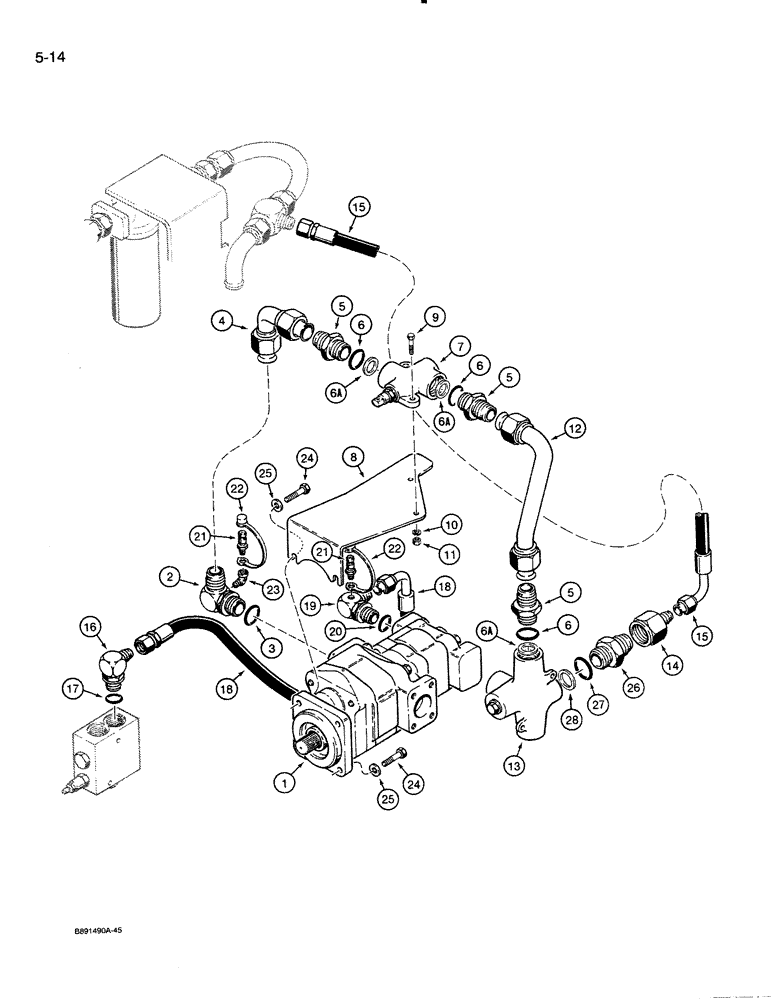

Запчасти Case 821 (5-014) - AUXILIARY STEERING HYDRAULIC CIRCUIT EQUIPMENT PUMP TO AUXILIARY STEERING VALVE AND UNLOADING VALVE (05) - STEERING

1

L126103

PUMP, HYDRAULIC,5.4 CC

PUMP ASSEMBLY - steering and equipment, parts list Figure 8-020

1шт.

L126103R

REMAN-HYD PUMP

821

1шт.

L126103C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

L125346

FITTING

ELBOW - 90 degree, special, Includes: Ref. 3

1шт.

3

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

4

L125612

PIPE,31.75 mm OD x 107, 107 mm L

TUBE - supply, pump to check valve

1шт.

5

L125575

FITTING

ADAPTER - 1-5/8-12 inch flare x 42 mm O-ring boss, Includes: Ref. 6

3шт.

6

238-6128

O-RING,0.103" Thk x 1.487" ID, -128, Cl 6, 90 Duro

1шт.

6a

S301047

BACK-UP RING,1.728" ID x 1.961" OD x 0.8"

RING - backup

1шт.

7

L126569

VALVE

ASSEMBLY - check, flow indicator, parts list Figure 5-026

1шт.

8

L125630

SUPPORT

BRACKET - mounting, flow indicator check valve

1шт.

This bracket does not have the ring welded to the end of it that the old L125619 had. Ring was not required, and was removed because it caused too much rub wear.

1шт.

9

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

10

492-11038

LOCK WASHER,3/8"

2шт.

11

425-106

NUT,3/8"-16, Cl 5

2шт.

12

L125616

PIPE,31.75 mm OD x 324, 133 mm L

TUBE - supply, check valve to auxiliary steering valve

1шт.

13

L125515

SELECTOR

VALVE ASSEMBLY - auxiliary steering, parts list Figure 5-024

1шт.

14

218-1704

REDUCER,37 Degree, 1 7/8"-12, Fem x 1 1/16"-12 Male

ADAPTER - 1-7/8-12 fem straight thread x 1-1/16-12 inch flare

1шт.

15

L125584

HOSE

- 975 mm long, return, auxiliary steering, Serial Range: valve-filter

1шт.

16

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, 1-1/16-12 flare x 1-5/16-12 adj O-ring boss, Includes: Ref. 17

1шт.

17

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

18

L125905

HOSE

- 535 mm long, pump to unloading valve

1шт.

19

R49557

FITTING

ELBOW - 90 degree, special, with check port, Includes: Ref. 20

1шт.

20

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

21

H434164

COUPLING

COUPLER - quick disconnect

2шт.

22

H434163

DUST CAP

CAP - dust

2шт.

23

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

- street, 90 degree, 1/8 inch PT

1шт.

24

828-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

- hex, 12 - 1.75 x 45 mm

4шт.

25

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

26

L125574

FITTING

ADAPTER - 1-7/8-12 inch flare x 48 mm O-ring boss, Includes: Ref. 27 and 28

1шт.

27

238-6132

O-RING,0.103" Thk x 1.737" ID, -132, Cl 6, 90 Duro

1шт.

28

S301046

OIL SEAL

RING - backup

1шт.
