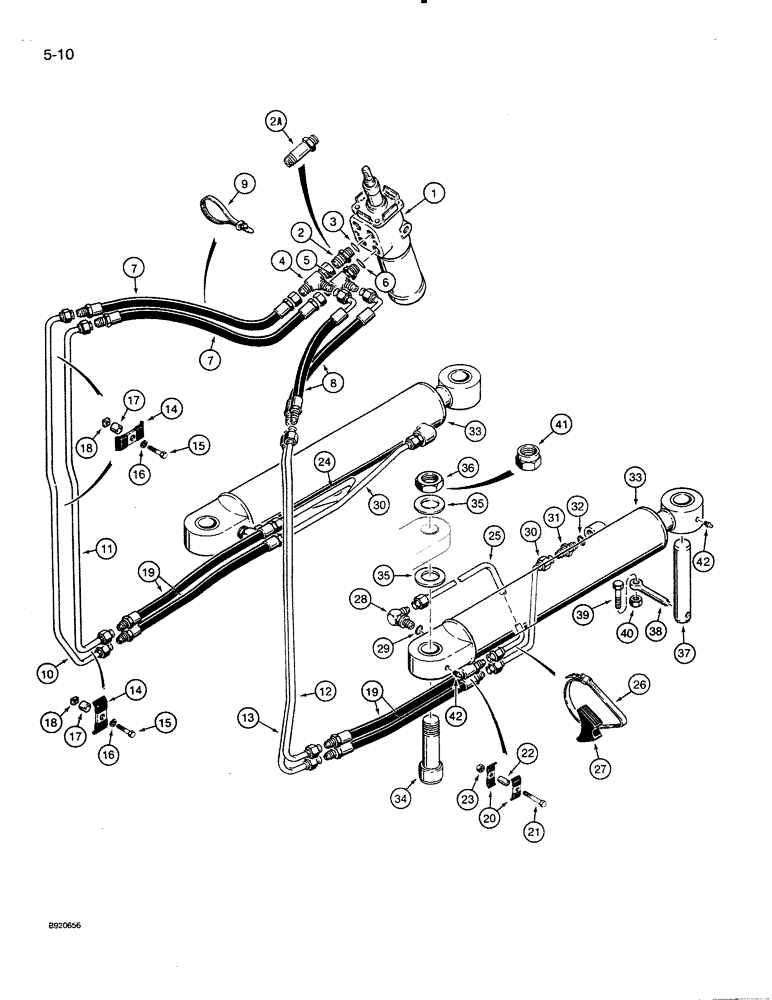

Запчасти Case 821 (5-010) - STEERING HYDRAULIC CIRCUIT, STEERING CONTROL VALVE TO CYLINDERS (05) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY - steering control, for correct assembly and components, see Figure 5-006

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADARefeRefef. 3

1шт.

2a

218-5031

HYD CONNECTOR,3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, 2-3/4 inch long, Includes: Ref. 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 218-5059 or 218-5031 adapter

1шт.

4

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare br x flare x swivel straight thread, Includes: Ref. 6

1шт.

5

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch flare branch x flare x adj O-ring boss, Includes: Ref. 6

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

7

L125807

HOSE

- 645 mm long, left-hand cylinder, Serial Range: valve-tubes

2шт.

8

L125806

HOSE

- 645 mm long, right-hand cylinder, Serial Range: valve-tubes

2шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

10

L125316

PIPE,15.9 mm OD x 634, 513 mm L

TUBE - steering, upper left-hand, to rod end of cylinder

1шт.

11

L125318

PIPE,15.9 mm OD x 797, 168 mm L

TUBE - steering, lower left-hand, to closed end of cylinder

1шт.

12

L125322

PIPE,15.9 mm OD x 702, 329 mm L

TUBE - steering, upper right-hand, to closed end of cylinder

1шт.

13

L125320

PIPE

TUBE - steering, lower right-hand, to rod end of cylinder

1шт.

14

S9702

CLAMP

- tube

6шт.

15

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

6шт.

16

492-11038

LOCK WASHER,3/8"

6шт.

17

D76209

SPACER

- tubes

6шт.

18

84899

SQUARE NUT,Sq, 3/8"-16, G2

- square, 3/8 inch NC

6шт.

19

L125323

HOSE,12.7mm ID x 475mm L, SAE 100R2

- 475 mm long, tubes from valve to tubes at cylinders

4шт.

20

D40236

CLAMP

- hose

4шт.

21

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

2шт.

22

D143412

SPACER,10.31mm ID x 15.81mm OD x 23.88mm L

- 0.94 inch thick, hose, at tubes to cylinders, if used

2шт.

22

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

- 0.85 inch thick, hose, at tubes to cylinders,if used

2шт.

23

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

2шт.

24

L125544

PIPE,12.7 mm OD x 318, 105 mm L

TUBE - left-hand, to closed end of cylinder

1шт.

25

L125548

PIPE,12.7 mm OD

TUBE - right-hand, to closed end of cylinder

1шт.

26

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - tube retaining, 5 inch, tube to cylinder

2шт.

27

D38648

BLOCK

INSULATOR - rubber, clamp

2шт.

28

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 29

2шт.

29

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

30

L125325

PIPE,12.7 mm OD x 250, 141 mm L

TUBE - right and left-hand cylinders, to rod end

2шт.

31

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 32

2шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

33

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering, see Figures 5-030 or 5-032 for correct cylinder assembly and parts list

2шт.

34

L125887

PIN

- cylinder mounting, closed end, 113 mm long, if used

2шт.

Ref. 34 - to accomodate for excessive wear in bore, substitute with expander pin p/n 187152A1. (Base end of cylinder only).

1шт.

34

L129696

PIN,34.92mm OD x 152mm L

- cylinder mounting, closed end, 123 mm long, if used

2шт.

35

L125890

WASHER

- special, flat, hardened

4шт.

36

131-42

NUT,1 3/8"-12

NUT - hex, self-locking, 1-3/8 inch NF, no longer used, order Ref. 41, L129389, shown below

2шт.

37

L125419

PIN,34.92mm OD x 195mm L

- cylinder mounting, rod end

2шт.

Ref. 37 - to accomodate for excessive wear in bore, substitute with expander pin p/n 187153A1. (Rod end of cylinder only).

1шт.

38

R17756

ROD,12.7mm OD x 109.54mm L

- retaining, mounting pin

2шт.

39

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

40

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

41

L129389

LOCK NUT

NUT - hex, self-locking, 1-3/8 inch NF, special

2шт.

42

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, 1986978C1 cylinder

4шт.
