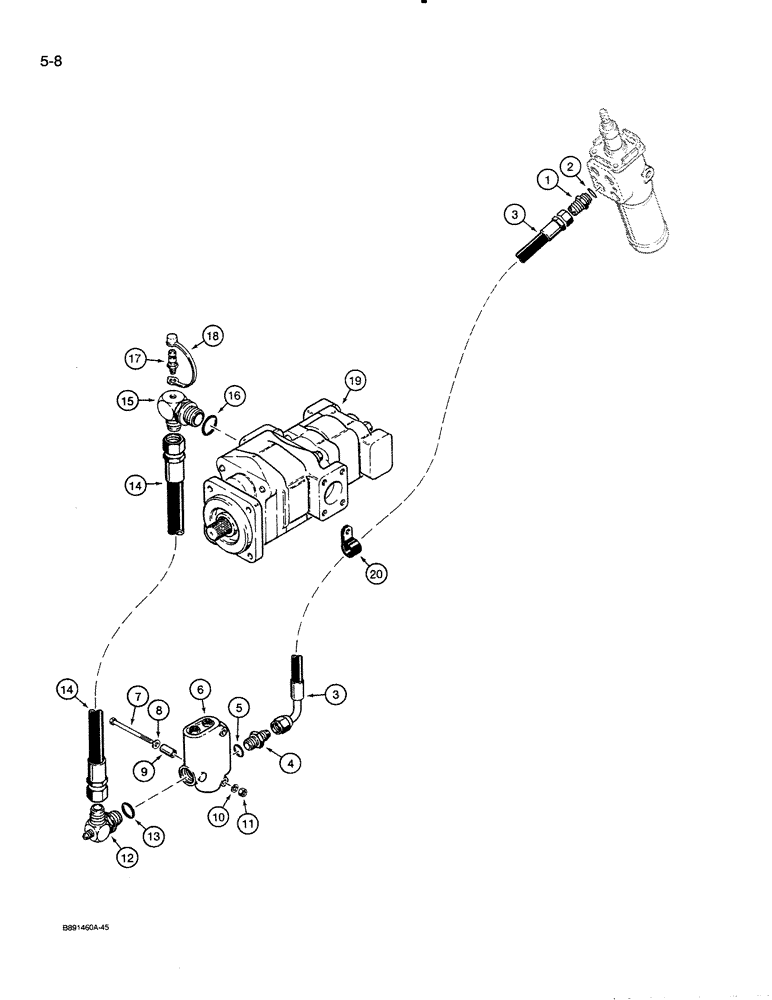

Запчасти Case 821 (5-008) - STEERING HYDRAULIC CIRCUIT, PUMP TO STEERING CONTROL VALVE (05) - STEERING

1

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss, Incl. Ref. 2

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

L125804

HOSE

- 1675 mm long, hose at flow control valve to steering control valve

1шт.

4

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 inch flare x 1-1/16-12 O-ring boss, Includes: Ref. 5

1шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

6

L126106

VALVE

ASSEMBLY - flow control, parts list Figure 5-028

1шт.

7

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- 5/16 NC x 4-1/2 inch

2шт.

8

D41740

WASHER

- flat, 25/64 x 1 x 7/64 inch, hardened

2шт.

9

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- valve

2шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

12

218-5579

TEE,37 Degree, 9/16"-18, 1 5/16"-12, O-Ring Run, 1 5/16"-12

- 1-5/16-12 fl branch x adj O-ring x 9/16-18 inch flare, Includes: Ref. 13

1шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

14

L125849

HOSE

- 535 mm long, pressure, pump to flow control valve

1шт.

15

L125817

ELBOW

- 90 degree, special, Includes: Ref. 16

1шт.

16

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

17

H434164

COUPLING

COUPLER - quick disconnect

1шт.

18

H434163

DUST CAP

CAP - dust

1шт.

19

L126103

PUMP, HYDRAULIC,5.4 CC

PUMP ASSEMBLY - steering and equipment, parts list Figure 8-020

1шт.

L126103R

REMAN-HYD PUMP

821

1шт.

L126103C

CORE-HYDRAULIC PUMP

Return Number

1шт.

20

R11860

CLAMP

- hose, if used

1шт.
