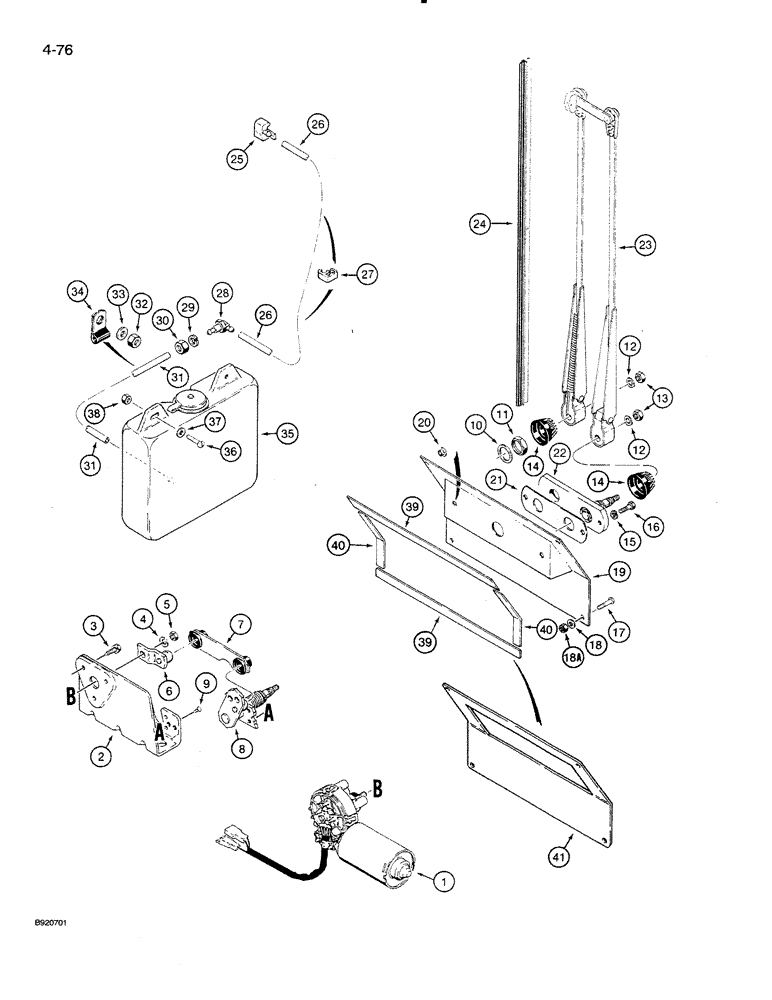

Запчасти Case 821 (4-076) - CAB FRONT WIPER (04) - ELECTRICAL SYSTEMS

A187534

WIPER MOTOR

MOTOR ASSEMBLY - with bracket, front windshield wiper, 24 volt, Includes: Ref. 1 - 9

1шт.

All of the above Refs. shown are included in L36339 canopy windshield and wiper kit on Figure 9-114.

1шт.

1

A187535

WIPER MOTOR

MOTOR - 24 volt, windshield wiper, included in A187534 motor assembly

1шт.

All of the above Refs. shown are included in L36339 canopy windshield and wiper kit on Figure 9-114.

1шт.

2

N8359

SUPPORT

BRACKET - wiper

1шт.

All of the above Refs. shown are included in L36339 canopy windshield and wiper kit on Figure 9-114.

1шт.

3

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

SCREW AND WASHER ASSEMBLY - mounting

3шт.

All of the above Refs. shown are included in L36339 canopy windshield and wiper kit on Figure 9-114.

1шт.

4

N8361

SPRING WASHER

- spring, retaining

1шт.

All of the above Refs. shown are included in L36339 canopy windshield and wiper kit on Figure 9-114.

1шт.

5

L112090

NUT

- hex, 8 mm, retaining

1шт.

All of the above Refs. shown are included in L36339 canopy windshield and wiper kit on Figure 9-114.

1шт.

6

N8360

SUPPORT

ARM - drive

1шт.

All of the above Refs. shown are included in L36339 canopy windshield and wiper kit on Figure 9-114.

1шт.

7

A187835

ROD

LINK - wiper

1шт.

All of the above Refs. shown are included in L36339 canopy windshield and wiper kit on Figure 9-114.

1шт.

8

A187836

CROSS SHAFT

SHAFT - pivot

1шт.

All of the above Refs. shown are included in L36339 canopy windshield and wiper kit on Figure 9-114.

1шт.

9

N8356

SCREW,Phillips Drive, Flat HD, M5 x 8mm

- bracket

4шт.

All of the above Refs. shown are included in L36339 canopy windshield and wiper kit on Figure 9-114.

1шт.

10

L112088

WASHER

- flat, 20 x 29 x 1 mm, shaft

1шт.

All of the above Refs. shown are included in L36339 canopy windshield and wiper kit on Figure 9-114.

1шт.

11

L112087

NUT

- hex, 20 mm - 1, shaft

1шт.

All of the above Refs. shown are included in L36339 canopy windshield and wiper kit on Figure 9-114.

1шт.

12

L112089

WASHER

- spring, 8 mm

2шт.

All of the above Refs. shown are included in L36339 canopy windshield and wiper kit on Figure 9-114.

1шт.

13

L112090

NUT

- hex, 8 mm, retaining

2шт.

All of the above Refs. shown are included in L36339 canopy windshield and wiper kit on Figure 9-114.

1шт.

14

L112081

CAP

- wiper

2шт.

All of the above Refs. shown are included in L36339 canopy windshield and wiper kit on Figure 9-114.

1шт.

15

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

All of the above Refs. shown are included in L36339 canopy windshield and wiper kit on Figure 9-114.

1шт.

16

414-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

- hex, 1/4 NF x 3/4 inch

1шт.

All of the above Refs. shown are included in L36339 canopy windshield and wiper kit on Figure 9-114.

1шт.

17

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

SCREW - 1/4 NC x 3/4 inch, special

4шт.

All of the above Refs. shown are included in L36339 canopy windshield and wiper kit on Figure 9-114.

1шт.

18

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

4шт.

All of the above Refs. shown are included in L36339 canopy windshield and wiper kit on Figure 9-114.

1шт.

18a

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

All of the above Refs. shown are included in L36339 canopy windshield and wiper kit on Figure 9-114.

1шт.

19

1339586C1

COVER

- mounting, front wiper

1шт.

All of the above Refs. shown are included in L36339 canopy windshield and wiper kit on Figure 9-114.

1шт.

20

353-401

PLUG,Dome, .312" hole, Nylon

- 5/16 inch, black, wiper cover

1шт.

All of the above Refs. shown are included in L36339 canopy windshield and wiper kit on Figure 9-114.

1шт.

21

A186219

GASKET,1.5mm Thk

- pivot

1шт.

All of the above Refs. shown are included in L36339 canopy windshield and wiper kit on Figure 9-114.

1шт.

22

A186220

PIVOT ASSY.

PIVOT - wiper arm

1шт.

All of the above Refs. shown are included in L36339 canopy windshield and wiper kit on Figure 9-114.

1шт.

23

A187964

WIPER ARM

ARM - 680 mm long, windshield wiper, replaces A187573

1шт.

All of the above Refs. shown are included in L36339 canopy windshield and wiper kit on Figure 9-114.

1шт.

24

A187574

WIPER BLADE

BLADE - 700 mm long, windshield wiper

1шт.

Ref. 24 now has a refill #234594a1. The refill does not have a metal strip. You need to use the metal strip from the old blade.

1шт.

All of the above Refs. shown are included in L36339 canopy windshield and wiper kit on Figure 9-114.

1шт.

25

1970002C1

JET

NOZZLE - fluid, windshield wiper

1шт.

26

1964827C1

PIPE

HOSE - 810 mm long, Serial Range: nozzle-elbow

1шт.

27

1970003C1

CLIP,ELECTRICAL

CLIP - hose, to wiper arm

2шт.

28

1968053C1

ELBOW

CONNECTOR - bulkhead, 90 degree

1шт.

29

N8361

SPRING WASHER

- spring, retaining

1шт.

30

825-1408

NUT,M8, Cl 8

1шт.

31

1964828C1

PIPE

HOSE - 1145 mm long, elbow to fluid reservoir

1шт.

32

425-106

NUT,3/8"-16, Cl 5

If used 3/8"-16, G5

3шт.

33

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch, if used

3шт.

34

R14668

CLAMP

- harness retaining, if used

3шт.

35

A187527

RESERVOIR ASSY.

RESERVOIR ASSEMBLY - with pump, windshield wiper fluid

1шт.

36

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

SCREW - 1/4 NC x 3/4 inch, special

2шт.

37

1990502C1

WASHER

- flat, 17/64 x 13/16 x 5/64 inch

2шт.

38

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

39

1981919C1

WIPER SEAL

- 260 mm long, adhesive back, no longer available, order Ref. 41, one piece seal

2шт.

40

1340076C1

WIPER SEAL

- 150 mm long, adhesive back, no longer available, order Ref. 41, one piece seal

2шт.

41

1994815C1

WIPER SEAL

- one piece, adhesive back

1шт.

All of the above Refs. shown are included in L36339 canopy windshield and wiper kit on Figure 9-114.

1шт.
