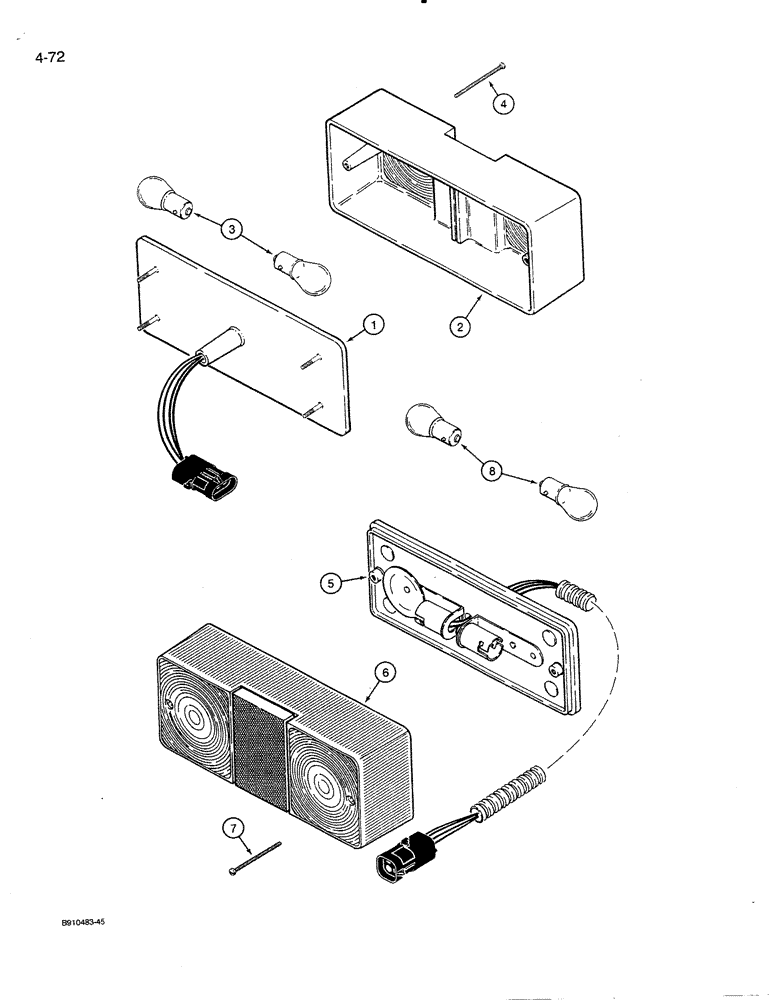

Запчасти Case 821 (4-072) - TURN SIGNAL, FLASHER (04) - ELECTRICAL SYSTEMS

A186292

LIGHT ASSY.

LAMP ASSEMBLY - turn signal and flasher, left or right-hand, see Figure 4-066 for mounting, no longer available, order A187992 right-hand or A187993 left-hand lamp, Includes: Ref. 1 - 4

2шт.

A187992

LIGHT ASSY.,24V, 27W, Amber/Clear

LAMP ASSEMBLY - turn signal and flasher, right hand, see Figure 4-066 for mounting, Includes: Ref. 1 - 4

1шт.

A187993

LIGHT ASSY.,24V, 27W, Amber/Clear

LAMP ASSEMBLY - turn signal and flasher, left hand, see Figure 4-066 for mounting, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

2

A186293

LENS

- lamp

1шт.

3

T39535

BULB

- No. 1251, flasher, A186292 lamp only

1шт.

3

A15084

LAMP

BULB - No. 1683, flasher, A187992 or A187993 lamps only

1шт.

3

A15084

LAMP

BULB - No. 1683, turn signal

1шт.

4

226668A1

SCREW,M3.5 x 45mm

- lens mounting

2шт.

A186294

LIGHT ASSY.

LAMP ASSEMBLY - stop and tail, left or right hand, see Figure 4-068 for mounting, no longer available, order A187961 right-hand or A187962 left-hand lamp, Includes: Ref. 5 -8

2шт.

A187961

LAMP, TAIL

LAMP ASSEMBLY - stop and tail, right hand, see Figure 4-068 for mounting, Includes: Ref. 5 - 8

1шт.

A187962

LAMP, TAIL

LAMP ASSEMBLY - stop and tail, left hand, see Figure 4-068 for mounting, Includes: Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - lamp, stop and tail

1шт.

6

A186295

LENS

- lamp, stop and tail

1шт.

7

226668A1

SCREW,M3.5 x 45mm

- lens mounting, stop and tail lamp

2шт.

8

A15084

LAMP

BULB - lamp, No. 1683, turn signal, stop and tail

1шт.

8

L33194

BULB

- lamp, No. 1662, stop and tail, A186294 lamp only

1шт.

8

A15084

LAMP

BULB - lamp, No. 1683, stop and tail, A187961 or A187962 lamp only

1шт.
