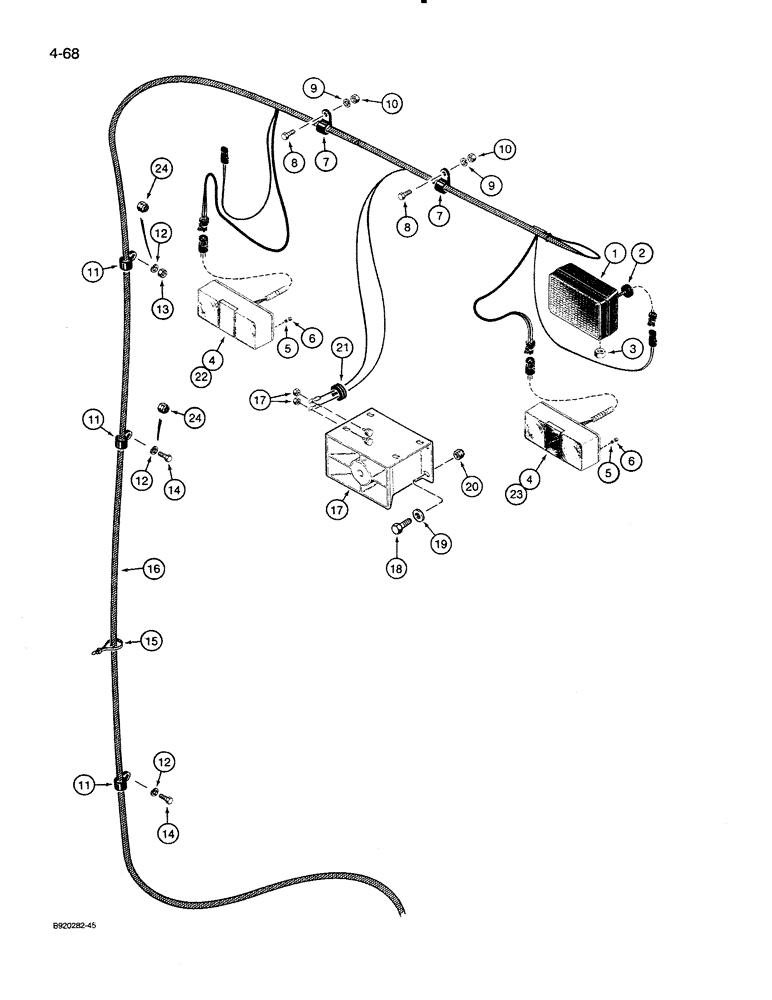

Запчасти Case 821 (4-068) - REAR LAMP AND BACKUP ALARM MOUNTING (04) - ELECTRICAL SYSTEMS

1

A187520

LIGHT ASSY.,24V, 70W, Clear

LAMP ASSEMBLY - flood, parts list Figure 4-070

2шт.

2

L124504

GROMMET

- split

2шт.

3

131-1402

THIN NUT,1/2"-13, GB, Thin

NUT, LOCK, 1/2"-13, GB, Thin

2шт.

4

A186294

LIGHT ASSY.

LAMP - stop and tail, parts list Figure 4-072, no longer available, order Ref. 22, A187962 and/or Ref. 23, A187961 lamps

2шт.

5

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

8шт.

6

825-1405

NUT,M5, Cl 8

8шт.

7

49838

CLAMP

- mounting, harness

2шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

9

492-11038

LOCK WASHER,3/8"

2шт.

10

425-106

NUT,3/8"-16, Cl 5

2шт.

11

NLS

NO LONGER SERVICED

- harness

2-3шт.

12

492-11038

LOCK WASHER,3/8"

if used 3/8"

3шт.

13

425-106

NUT,3/8"-16, Cl 5

If used 3/8"-16, G5

1шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, if used

2шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - harness retaining, if used

1шт.

16

L125425

HARNESS

- rear, see Figures 4-048 - 4-052 for continuation of harness

1шт.

17

D121972

ALARM

- backup, electric, rectangular type, includes nuts

1шт.

18

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

4шт.

19

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

4шт.

20

86625061

NUT,1/4"-20, GB

NUT - light hex, self-locking, 1/4 inch NC

4шт.

21

L124504

GROMMET

- wire

1шт.

22

A187962

LAMP, TAIL

LAMP - stop and tail, left-hand, parts list Figure 4-072

1шт.

23

A187961

LAMP, TAIL

LAMP - stop and tail, right-hand, parts list Figure 4-072

1шт.

24

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, , If used 3/8"-16, GB

2шт.
