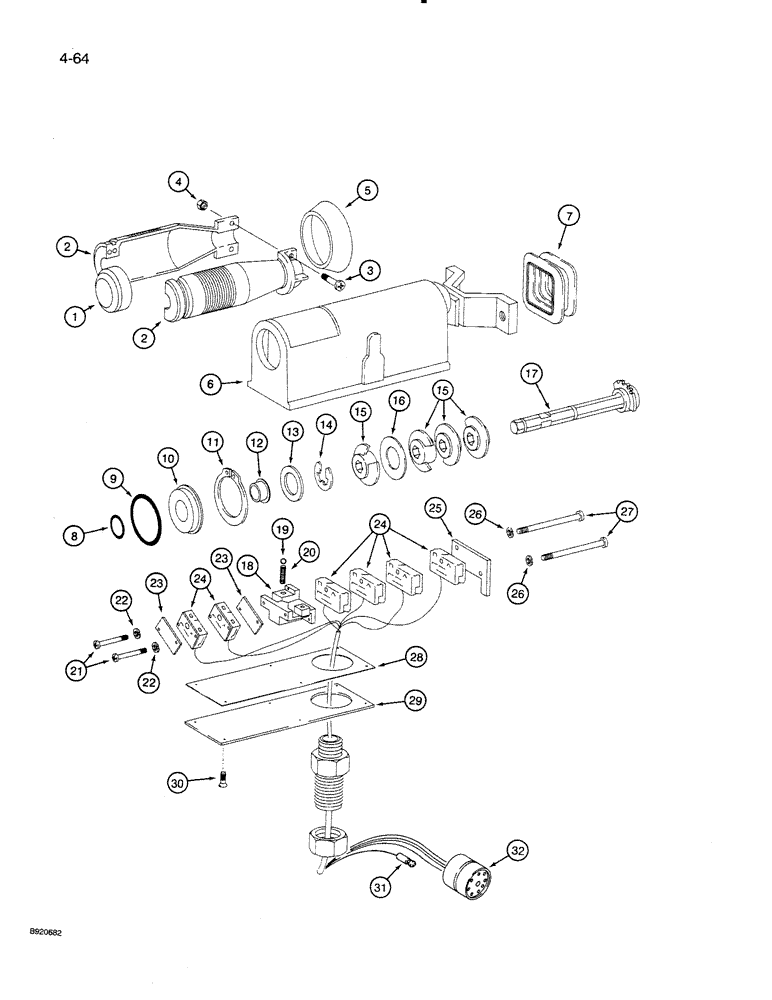

Запчасти Case 821 (4-064) - TRANSMISSION SPEED SELECTOR CONTROL ASSEMBLY (04) - ELECTRICAL SYSTEMS

A187760

SELECTOR

CONTROL ASSEMBLY - transmission speed selector, see Figure 4-024 for mounting, Includes: Ref. 1 - 32

1шт.

75239663R

REMAN-JOYSTICK

821 CASE WHEEL LOADER (NORTH AMERICA), CONTROL ASSEMBLY - transmission speed selector, Reman for New PN A187760

1шт.

75239663C

CORE-JOYSTICK

Return Number

1шт.

1

109889A1

CAP

- hand grip

1шт.

109890A1

HANDLE

GRIP ASSEMBLY - hand, speed elector control, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

GRIP - hand, two piece

1шт.

3

NSS

NOT SOLD SEPARAT

BOLT - special

2шт.

4

NSS

NOT SOLD SEPARAT

NUT - special

2шт.

5

NSS

NOT SOLD SEPARAT

RETAINER - hand grip

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - speed selector control, 198777A1

1шт.

In the Artwork is the Housing. The Bracket attached to the housing, toward Ref #7 should be Ref #6A.

1шт.

7

109896A1

BELLOWS

BOOT - rubber

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

10

NSS

NOT SOLD SEPARAT

PIVOT - shaft

1шт.

11

NSS

NOT SOLD SEPARAT

RING - snap

1шт.

12

NSS

NOT SOLD SEPARAT

SEAT - pivot

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - seat

1шт.

14

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

15

109895A1

CAM

- speed selector, see service manual or instructions for position of cams

4шт.

16

NSS

NOT SOLD SEPARAT

SPACER - cam

1шт.

17

NSS

NOT SOLD SEPARAT

SHAFT - speed selector

1шт.

18

NSS

NOT SOLD SEPARAT

BRACKET - microswitch mounting

1шт.

19

109894A1

BALL

- detent

1шт.

20

198778A1

SPRING

- detent

1шт.

21

NSS

NOT SOLD SEPARAT

BOLT - special, short

2шт.

22

NSS

NOT SOLD SEPARAT

WASHER - lock, special

2шт.

23

NSS

NOT SOLD SEPARAT

SPACER - microswitch

2шт.

24

1987434C1

IGNITION SWITCH

MICROSWITCH - speed selector

6шт.

25

NSS

NOT SOLD SEPARAT

PLATE - microswitch mounting

1шт.

26

NSS

NOT SOLD SEPARAT

WASHER - lock, special

2шт.

27

NSS

NOT SOLD SEPARAT

BOLT - special, long

2шт.

28

NSS

NOT SOLD SEPARAT

GASKET - cover

1шт.

29

NSS

NOT SOLD SEPARAT

COVER - control housing

1шт.

30

NSS

NOT SOLD SEPARAT

SCREW - special

6шт.

31

225052C1

ELEC. TERMINAL PIN,Male, 0.50 - 1.20 mm2

TERMINAL - connector

1шт.

32

225226C1

CONNECTOR, ELEC

CAB PLSTC RCP 9C

1шт.
