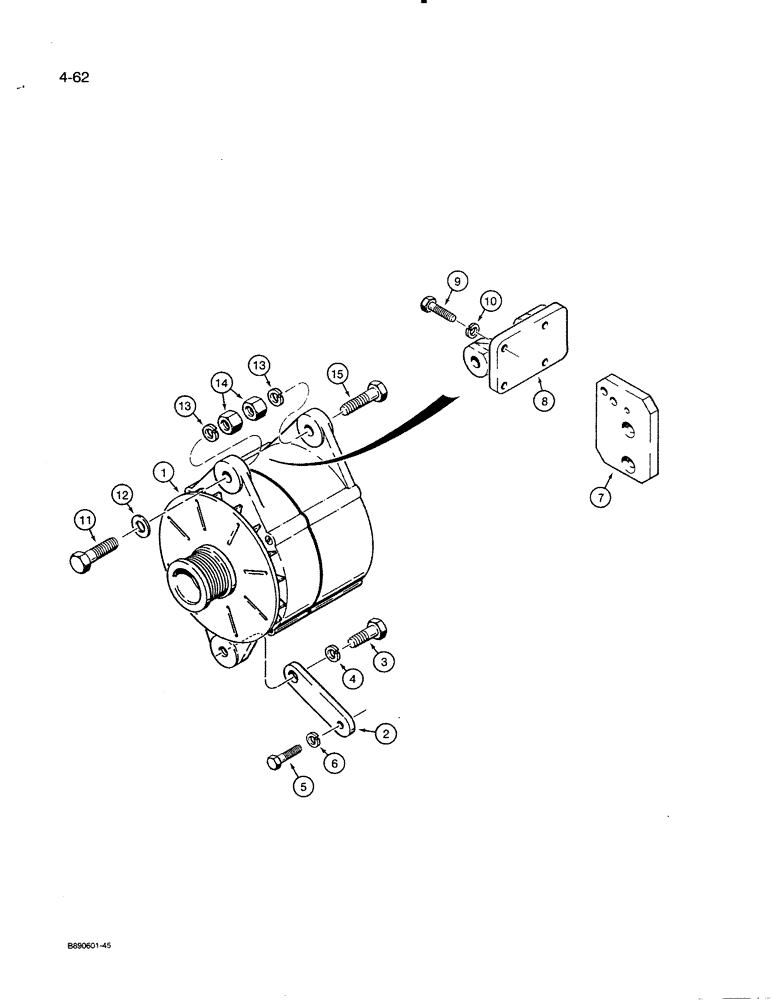

Запчасти Case 821 (4-062) - 65 AMP ALTERNATOR AND MOUNTING PARTS (04) - ELECTRICAL SYSTEMS

1

1964860C1

ALTERNATOR,24V, 60A, W/O Pulley

ALTERNATOR ASSEMBLY - 24 volt, 65 amperes, Robert Bosch part number 0 120 468 054, parts list Figure 4-004

1шт.

1

1964860C1GV

ALTERNATOR

Value

1шт.

1

1964860C1R

REMAN-ALTERNATOR

821 CASE WHEEL LOADER (NORTH AMERICA), ALTERNATOR ASSEMBLY, 24 volt, 65 amperes

1шт.

1

1964860C1C

CORE-ALTERNATOR

Return Number

1шт.

2

J911485

SUPPORT

BRACE - alternator

1шт.

3

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

BOLT - hex, 1/2 NC x 1-1/4 inch

1шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

5

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT - hex, 8 mm - 1.25 x 30 mm

1шт.

6

892-1108

LOCK WASHER,M8

LOCK WASHER, M8

1шт.

7

J911473

BRACKET

BRACKET - belt tensioner

1шт.

8

J918544

SUPPORT

SUPPORT - mounting, alternator, was J911480

1шт.

9

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT, HH, CL 8.8, M8 x 1.25 x 30

4шт.

10

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

11

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

Bolt, Hex, M12 x 50, 8.8

1шт.

12

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

WASHER, M13.5 x 24 x 2.5

1шт.

13

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

14

829-1412

NUT,M12, Cl 10.9

NUT - hex, 12 mm - 1.75, class 10

2шт.

15

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

BOLT - hex, 12 mm - 1.75 x 70 mm

1шт.
