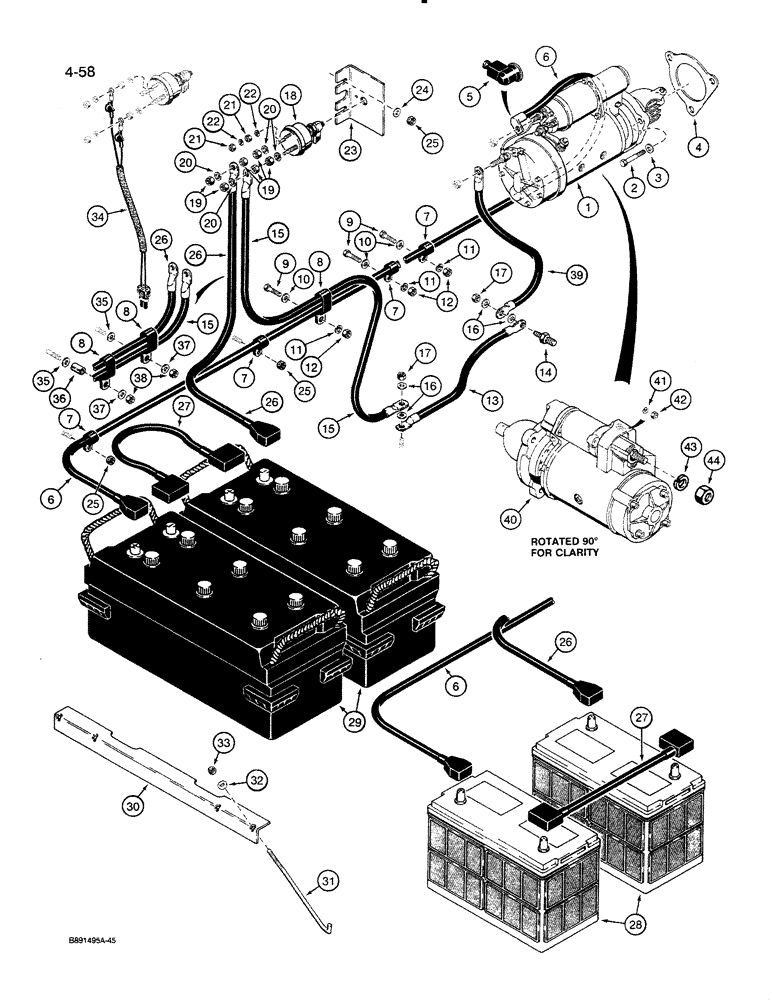

Запчасти Case 821 (4-058) - STARTER, BATTERIES, AND BATTERY CABLES (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

STARTER ASSEMBLY - Delco Remy, parts list Figures 4-006 - 4-010, no longer available, order Ref. 40, A187722

1шт.

2

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

Bolt, Hex, M12 x 50, 8.8

3шт.

3

R24323

WASHER

WASHER - flat, 13.5 ID x 25 OD, hardened

3шт.

4

A27933

GASKET

GASKET - starting motor, if used

1шт.

5

L126713

BOOT

BOOT - plastic, harness at starter

1шт.

6

L125621

CABLE

CABLE - battery to starter, positive terminal

1шт.

7

NLS

NO LONGER SERVICED

- battery cable to rear frame

4-5шт.

8

L71188

CLAMP,15.75mm ID, Coated, 13.46mm Bolt Hole, P Type

CLAMP - double, battery cable to rear frame

1-3шт.

9

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

BOLT - hex, 3/8 NC x 1-1/4 inch

3шт.

10

D41740

WASHER

WASHER - flat, 25/64 x 1 x 7/64 inch, hardened

3шт.

11

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.

12

425-106

NUT,3/8"-16, Cl 5

NUT, 3/8"-16, G5

3шт.

13

L126351

CABLE

CABLE - ground, at starter

1шт.

14

L127553

STUD

ADAPTER - stud, brass, cable mounting

1шт.

15

L128711

CABLE

CABLE - ground, at disconnect switch, was L126682

1шт.

16

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

WASHER - flat, brass, special

3-4шт.

17

L127555

NUT,Hex, 3/8" - 16

NUT - hex, brass, special

2шт.

L126256

SWITCH

SWITCH - master disconnect, Includes: Ref. 18 - 22

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - switch

1шт.

19

129-187

NUT,5/16"-24, Brass

NUT - hex, 3/8 inch NF, brass

6шт.

20

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

21

131-573

NUT,#10-32

NUT - hex, self-locking, No. 10 NF

4шт.

22

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

23

L126108

SUPPORT

BRACKET - mounting, disconnect switch

1шт.

24

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

WASHER, (Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

25

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

4шт.

26

L125105

CABLE

CABLE - ground, disconnect switch to negative battery terminal

1шт.

27

L124738

CABLE

CABLE - jumper, Serial Range: battery-battery

1шт.

28

BMF31E

DRY BATTERY

BATTERY - standard, 12 volt, dry type, service replacement

2шт.

29

BHC4DA

BATTERY, DRY

BATTERY DRY BATTERY - heavy duty, 12 volt, dry type, service replacement

2шт.

30

L124221

SUPPORT

BRACKET - battery hold down

2шт.

31

L124224

BOLT

BOLT - special, J-type, battery hold down

4шт.

32

495-21038

WASHER,5/16"

WASHER, (flat, 3/8 x 7/8 x 5/64") 5/16"

4шт.

33

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

34

L127676

WIRE HARNESS

HARNESS - disconnect

1шт.

35

S95569

WASHER

WASHER - flat, 9/16 x 1-3/8 x 9/64 inch, hardened, if used

2шт.

36

R46461

SPACER

SPACER - clamp, if used

1шт.

37

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

WASHER, (Flat, 13/32 x 13/16 x 1/16"), If used 3/8", SAE

2шт.

38

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8, if used

2шт.

39

L126351

CABLE

CABLE - ground, with Delco Remy starter only, if used

1шт.

40

A187722

STARTING MOTOR

STARTER ASSEMBLY - Nippondenso No. 128000-7020, parts list Figure 4-012

1шт.

40

AR187722

REMAN-STARTER

Remanufactured Starter

1шт.

40

AC187722

CORE-STARTER

Return Number

1шт.

41

492-11010

LOCK WASHER,#10

WASHER, LOCK, , If Used #10

1шт.

42

225-14210

NUT,#10-32

NUT, , If used #10-32

1шт.

43

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , If used 1/2"

1шт.

44

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, if used 1/2"-13, G5

1шт.
