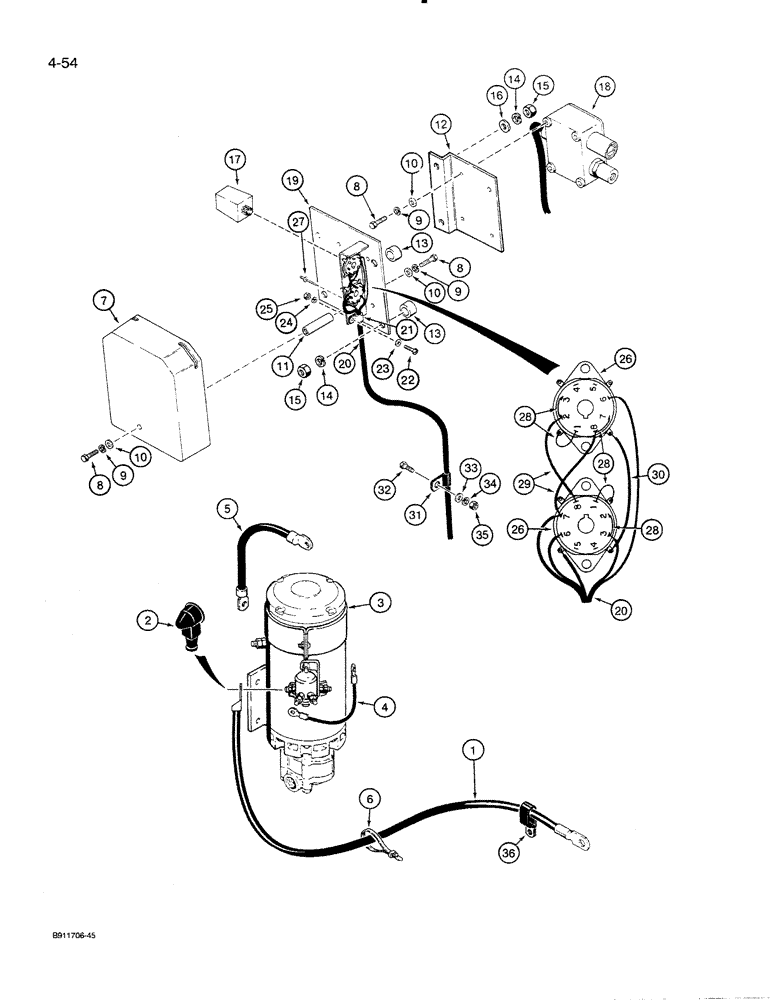

Запчасти Case 821 (4-054) - AUXILIARY STEERING ELECTRICAL CIRCUIT, P.I.N. JAK0024165 AND AFTER (04) - ELECTRICAL SYSTEMS

1

L130015

CABLE ASSY.

CABLE - starter to auxiliary steering pump

1шт.

2

L126713

BOOT

- plastic, cable at steering pump

1шт.

3

L116118

PUMP, HYDRAULIC

PUMP AND MOTOR ASSEMBLY - auxiliary steering, see Figure 5-018 for mounting hardware, parts list Figure 5-020

1шт.

4

A18457

ELECTRICAL WIRE

WIRE - jumper

1шт.

5

L57536

CABLE

WIRE - ground, pump

1шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

7

L114612

COVER

- relay panel

1шт.

8

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

6шт.

9

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

10

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

6шт.

11

L114195

SPACER

- cover to socket assembly

1шт.

12

L129945

BRACKET

- relay mounting

1шт.

Ref. 12, bracket, and 18 pressure switch attach to Ref. 1, L124084, relay mounting panel shown on Figure 4-052.

1шт.

13

S77915

SPACER

- bracket to socket assembly

2шт.

14

492-11038

LOCK WASHER,3/8"

4шт.

15

425-106

NUT,3/8"-16, Cl 5

4шт.

16

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

17

L113460

RELAY,24V

- auxiliary steering

2шт.

18

L126826

IGNITION SWITCH

SWITCH - pressure, auxiliary steering, see Figure 5-018 for pressure hose and auxiliary steering hydraulic circuit

1шт.

Ref. 12, bracket, and 18 pressure switch attach to Ref. 1, L124084, relay mounting panel shown on Figure 4-052.

1шт.

L129933

SOCKET

ASSEMBLY - relay, auxiliary steering, Includes: Ref. 19 - 30

1шт.

19

NSS

NOT SOLD SEPARAT

BRACKET - relay socket mounting

1шт.

20

NSS

NOT SOLD SEPARAT

HARNESS - relay

1шт.

21

L73526

CLAMP

- relay harness

1шт.

22

140-104

SCREW,Cross Pan Hd, #8 - 32 x 3/4"

1шт.

23

495-21019

WASHER,#8

1шт.

24

492-11008

LOCK WASHER,#8

Washer, Lock, #8

1шт.

25

225-14108

NUT,#8-32

- hex, No. 8 NC

1шт.

26

L57132

SOCKET

- relay

2шт.

27

151-526

RIVET,Pop, 1/8" x .337"

- pop, 1/8 x 9/32 inch

4шт.

28

L70845

ELECTRICAL WIRE

WIRE - ground

5шт.

29

NSS

NOT SOLD SEPARAT

WIRE -, Serial Range: relay-relay

2шт.

30

NSS

NOT SOLD SEPARAT

WIRE -, Serial Range: socket-socket

1шт.

31

S15543

CLAMP,7/16", Insul, 1/2" Bolt

- relay harness to hydraulic tank

1шт.

32

33-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT - carriage, 3/8 NC x 1-1/4 inch

1шт.

33

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

34

492-11038

LOCK WASHER,3/8"

1шт.

35

425-106

NUT,3/8"-16, Cl 5

1шт.

36

L71188

CLAMP,15.75mm ID, Coated, 13.46mm Bolt Hole, P Type

- harness, replaces Ref. 17 clamp, 49858, shown on Figure 4-052, models with auxiliary steering, uses existing hardware

2шт.
