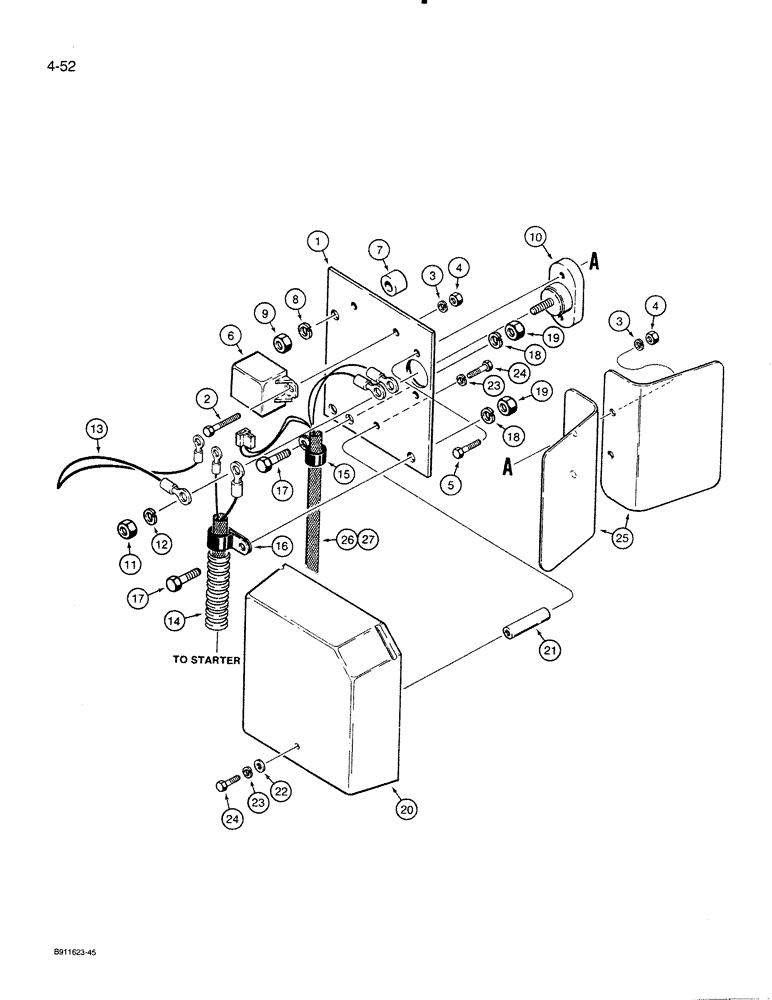

Запчасти Case 821 (4-052) - REAR HARNESS TO RELAY PANEL (04) - ELECTRICAL SYSTEMS

1

L124084

LARGE PLATE

PANEL - relay mounting

1шт.

2

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

3

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

4

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

5

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

2шт.

6

1546485C1

RELAY,24V

- 24 volt, starter, production, order 1546542C1 for service

1шт.

6

1546542C1

RELAY

- 24 volt, starter, service

1шт.

7

S77915

SPACER

- relay panel mounting

2шт.

8

492-11038

LOCK WASHER,3/8"

2шт.

9

425-106

NUT,3/8"-16, Cl 5

2шт.

L124085

CONNECTOR, ELEC

BLOCK - terminal, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - terminal block, includes flat washer

1шт.

11

425-106

NUT,3/8"-16, Cl 5

1шт.

12

492-11038

LOCK WASHER,3/8"

1шт.

13

L124102

ELECTRICAL WIRE

WIRE - jumper

1шт.

14

L126516

HARNESS

CABLE -, Serial Range: relay-starter

1шт.

15

49838

CLAMP

- mounting, harness

1шт.

16

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- medium closed, 3/4 inch diameter

1шт.

17

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

18

492-11038

LOCK WASHER,3/8"

2шт.

19

425-106

NUT,3/8"-16, Cl 5

2шт.

20

L114612

COVER

- relay panel

1шт.

21

L114195

SPACER

- relay cover

1шт.

22

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

1шт.

23

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

24

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

25

L128055

SUPPORT

SHIELD - heat, terminal block, two used on models with auxiliary steering

1-2шт.

26

L125425

HARNESS

- rear, see Figures 4-048 and 4-050 for continuation of the harness, Serial Range: -JAK0024165

1шт.

27

L129034

HARNESS

- rear, see Figures 4-048 and 4-050 for continuation of the harness, Start Serial: JAK0024165

1шт.
