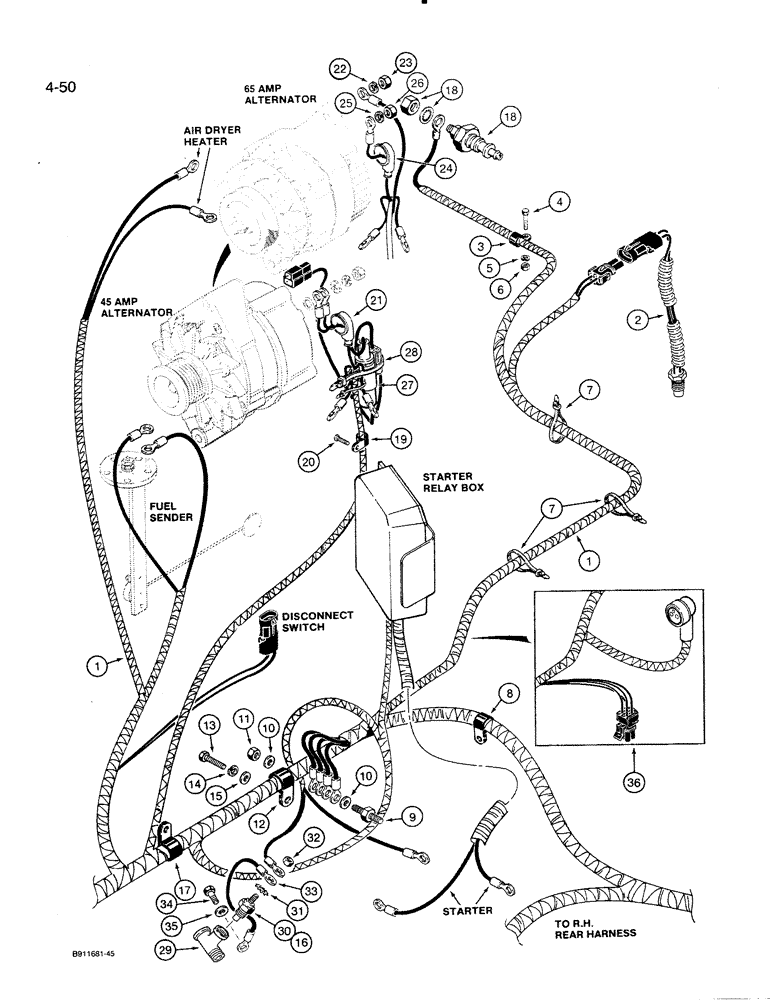

Запчасти Case 821 (4-050) - REAR HARNESS, ENGINE LEFT-HAND SIDE (04) - ELECTRICAL SYSTEMS

1

L125425

HARNESS

- rear, see Figures 4-048 and 4-052 for continuation of the harness, Includes: Ref. 1A, Serial Range: -JAK0024165

1шт.

1a

A186288

RELAY

- control, transmission to shifter, shown on Figure 4-048, Ref. 2

1шт.

2

A187530

TEMPERATURE SENDER

SWITCH - temperature, hydraulic oil

1шт.

3

49845

CLAMP

- harness, at filter

1шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

5

492-11038

LOCK WASHER,3/8"

1шт.

6

425-106

NUT,3/8"-16, Cl 5

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

8

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- included with harness, uses transmission hardware

2шт.

9

L127553

STUD

ADAPTER - stud, brass, engine ground mount

1шт.

10

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

- flat, special, brass

2шт.

11

L127555

NUT,Hex, 3/8" - 16

- hex, special, brass

1шт.

12

S88820

CLAMP

- retaining, part of harness

1шт.

13

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

1шт.

14

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

15

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

16

A187529

TEMPERATURE SENDER

SENDER - engine temperature, Serial Range: -JAK0023992

1шт.

17

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- medium closed, 3/4 inch diameter, models with standard steering, uses existing hardware

2шт.

17a

L71188

CLAMP,15.75mm ID, Coated, 13.46mm Bolt Hole, P Type

- harness, replaces Ref. 17 above, on models with auxiliary steering, not shown

2шт.

18

N13268

PRESSURE SWITCH

INDICATOR ASSEMBLY - restriction, hydraulic oil, parts list Figure 8-010

1шт.

19

49836

CLAMP

- 1/2 inch diameter, if used

1шт.

20

814-12016

BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 16 mm, if used

1шт.

21

L126713

BOOT

- plastic, models with 45 amp alternator

1шт.

22

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Models with 65 amp alternator 7/16"

1шт.

23

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC, Models with 65 amp alternator

1шт.

24

S64612

BOOT

- rubber, models with 65 amp alternator

1шт.

25

892-11004

LOCK WASHER,M4

WASHER, LOCK, , Models with 65 amp alternator M4

1шт.

26

825-1404

NUT,M4, Cl 8

Models with 65 amp alternator M4, Cl 8

1шт.

27

L127475

HARNESS

- includes capacitor, models with 45 amp alternator

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

29

221-1693

TEE,Street, 1/2" NPT

- street, 1/2 inch PT

1шт.

30

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER - engine temperature, Start Serial: JAK0023992

1шт.

31

493-11020

LOCK WASHER,5.08mm ID x 12.75mm OD x 1.02mm Thk

WASHER, LOCK, (3/16") Ext-Int Tooth, #10

1шт.

32

225-20210

NUT,#10-32, Brass

1шт.

33

L129823

ELECTRICAL WIRE

WIRE - resistor, engine coolant temperature sender to engine, use with A191109 instrument cluster, Ref. 2, Figure 4-016, Start Serial: JAK0024018

1шт.

(Contains a built-in 1/2 watt 2.7K ohm resistor. This resistor is N.S.S.)

1шт.

34

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 - 1.25 x 16 mm

1шт.

35

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.

36

L129034

HARNESS

- rear, see Figures 4-048 and 4-052 for continuation of harness, Start Serial: JAK0024165

1шт.
