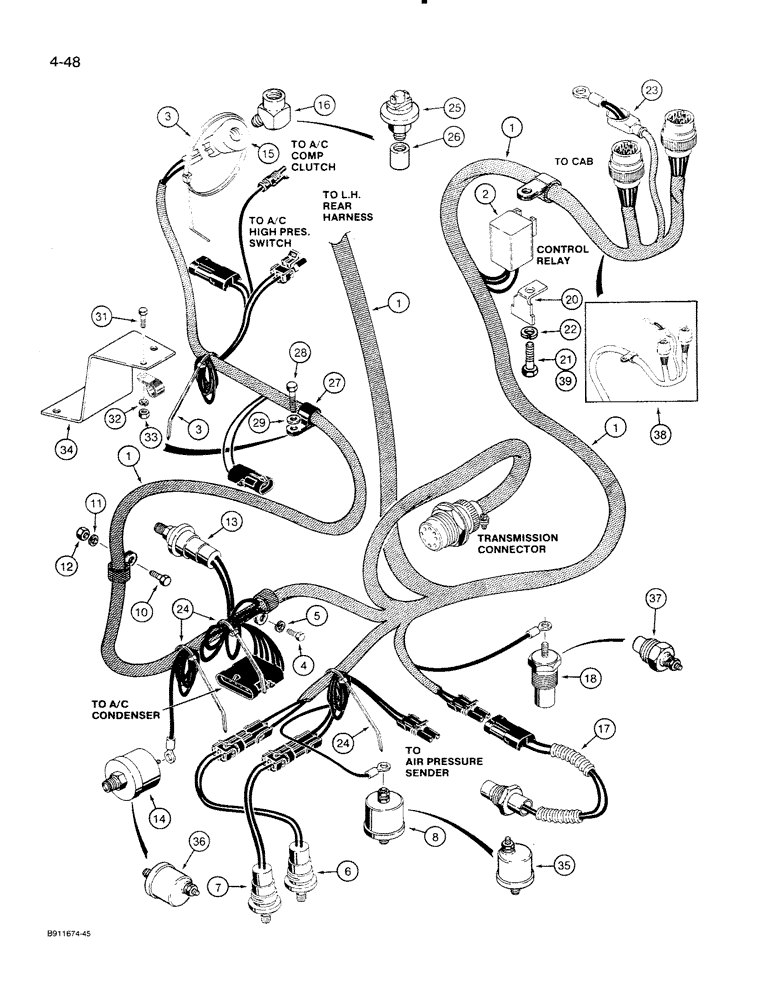

Запчасти Case 821 (4-048) - REAR HARNESS, ENGINE RIGHT-HAND SIDE (04) - ELECTRICAL SYSTEMS

1

L125425

HARNESS

- rear, see Figures 4-050 and 4-052 for continuation of the harness, Includes: Ref. 2, Serial Range: -JAK0024165

1шт.

2

A186288

RELAY

- control, Serial Range: transmission-shifter

1шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

4

814-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 20 mm

1шт.

5

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

6

1546463C1

SWITCH, PRESSURE

SWITCH - declutch, low air, replaced A187770

1шт.

7

A187531

SWITCH

- pressure, low air

1шт.

8

A187532

PROBE

SENDER - air pressure, brake, use with A187539 gauge, Ref. 4 on Figure 4-018

1шт.

10

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

11

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

13

A187723

SENDER UNIT

SWITCH - engine oil pressure

1шт.

14

677161R92

SENDER UNIT

SENDER - engine oil pressure, use with A187537 gauge, Ref. 2 on Figure 4-018

1шт.

15

A172784

RESTRICTION SWITCH

SWITCH - restriction, no longer available, order Ref. 25, 1983233C1, and Ref. 26, 221-1335

1шт.

16

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

Street, Use with Ref. 15, A172784 switch 45º, 1/8"-27 Female x 1/8"-27 Male

1шт.

17

A187530

TEMPERATURE SENDER

SWITCH - temperature, transmission oil

1шт.

18

S111010

TEMPERATURE SENDER

SENDER - temperature, transmission oil, use with A187538 gauge, Ref. 3 on Figure 4-018

1шт.

20

L127449

SUPPORT

BRACKET - mounting, transmission shift relay, L125425 harness

1шт.

21

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch, use with L127449 bracket

1шт.

22

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

23

L126713

BOOT

- plastic, harness at floor of operators compartment

1шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

25

1983233C1

RESTRICTION SWITCH

SWITCH - air restriction

1шт.

26

221-1335

COUPLING,Pipe, 1/8" NPT

1шт.

27

49833

CLAMP

- harness retaining, at fuel lines on units without air conditioning using hardware Refs. 28 and 29; at bracket on units with air conditioning using hardware Refs. 31, 32, and 33

1шт.

28

J903609

SCREW

BOLT - hex, 5 mm - 0.8 x 20 mm

1шт.

29

J903723

WASHER

- flat, 6 x 10 x 1 mm

1шт.

31

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

1шт.

32

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

33

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

34

L125956

SUPPORT

BRACKET - hose clamp, units with air conditioning

1шт.

35

L128324

SENDER UNIT

SENDER - air pressure, brake, use with L125855 gauge, Ref. 4 on Figure 4-020

1шт.

36

L127534

SENDER UNIT

SENDER - engine oil pressure, use with L125853 gauge, Ref. 2 on Figure 4-020

1шт.

37

L127532

TEMPERATURE SENDER,1/2" - 14

SENDER - temperature, transmission oil, use with L125854 gauge, Ref. 3 on Figure 4-020

1шт.

38

L129034

HARNESS

- rear, see Figures 4-050 and 4-052 for continuation of the harness, Start Serial: JAK0024165

1шт.

39

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch, if used

1шт.
