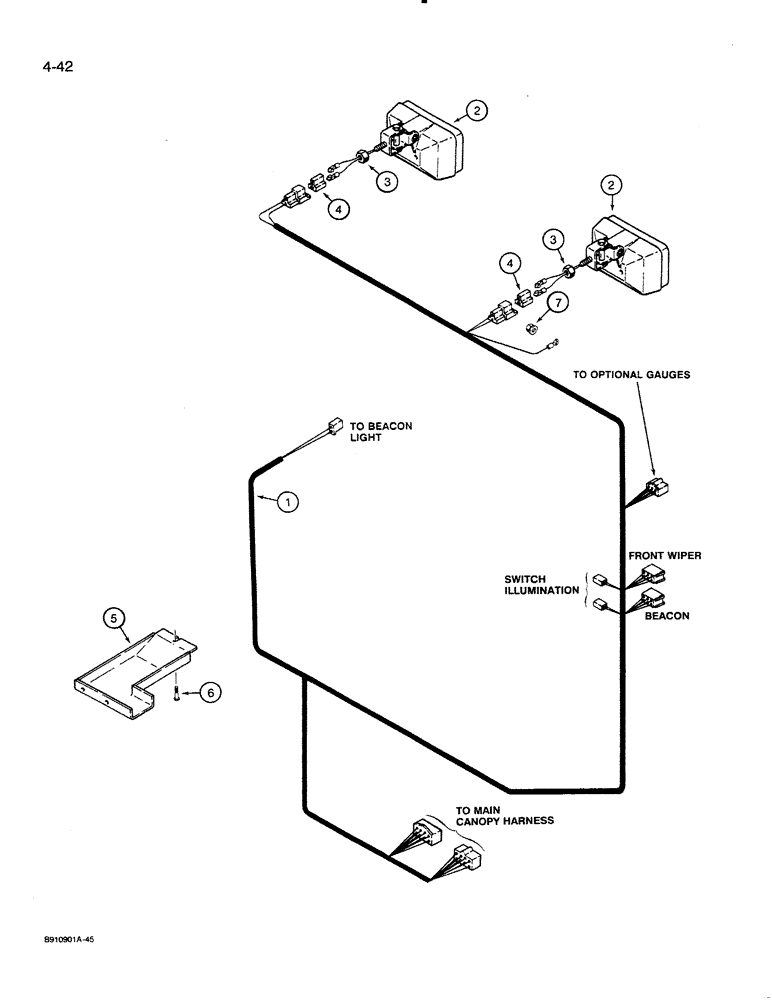

Запчасти Case 821 (4-042) - CANOPY ROOF HARNESS, *P.I.N. JAK0024165 AND AFTER (04) - ELECTRICAL SYSTEMS

1

1546502C1

HARNESS

- roof, ROPS canopy

1шт.

2

A187541

LIGHT ASSY.,Halogen, 24V, 70W, Clear

LAMP ASSEMBLY - flood, upper, parts list Figure 4-070

2шт.

3

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

2шт.

4

877291R1

ELEC CONNECTOR,Female

CONNECTOR - harness to flood lamp

2шт.

5

1973511C5

COVER

- harness, upper right-hand rear

1шт.

6

140-112

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

3шт.

7

1999948C1

FLANGE NUT

- hex flange, 5/16 inch, special, mounts ground wire to canopy frame

1шт.
