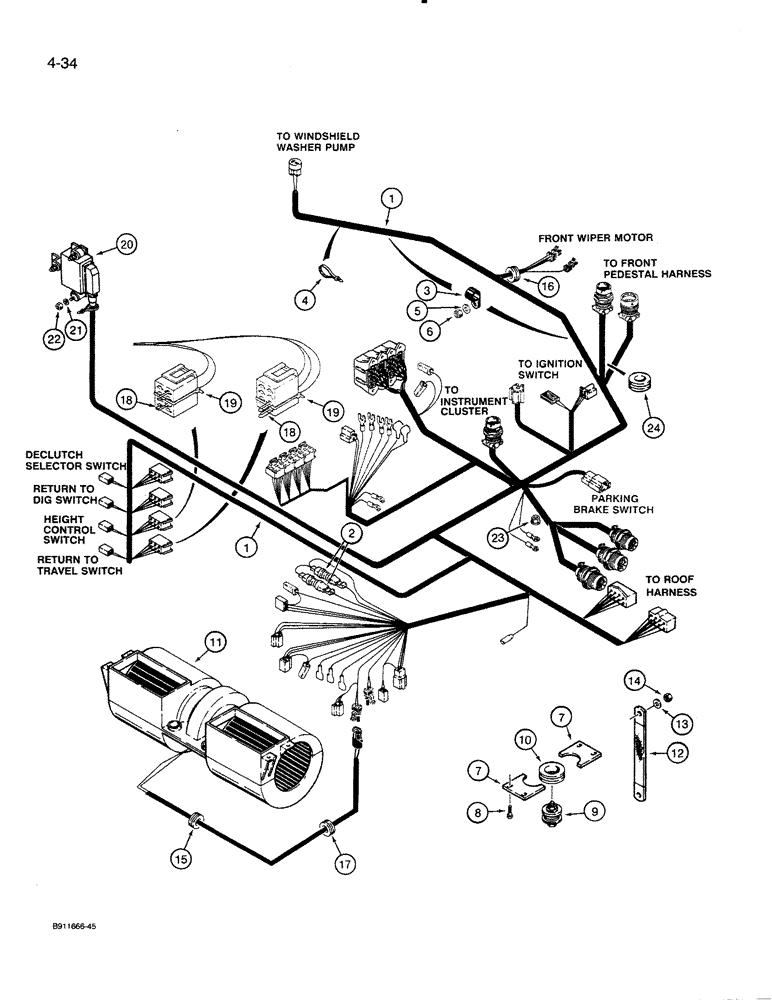

Запчасти Case 821 (4-034) - MAIN CAB HARNESS, TRANSMISSION CONTROL, *P.I.N. JAK0024165 AND AFTER (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
1546470C1
HARNESS
- main cab, Includes: Ref. 2
1шт.
2
548239R2
RECTIFIER
- module diode
2шт.
3
R14668
CLAMP
- harness retaining
2шт.
4
L18337
CABLE TIE,9.95"-12.1" lg
STRAP - tie, 15 inch, nylon
1шт.
5
495-21031
WASHER,1/4"
- flat, 5/16 x 47/64 x 1/16 inch
2шт.
6
7770
NUT,Hex, 1/4 - 20, Cl 5
- hex, 1/4 inch NC
2шт.
7
1970030C1
LARGE PLATE
PLATE - harness guide
2шт.
8
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
- hex, 1/4 NC x 3/4 inch
4шт.
9
A187523
JUNCTION BLOCK
CONNECTOR - harness, includes hardware
1шт.
10
A187875
GROMMET
- rubber, cab floor
1шт.
11
REF
INSTRUCTION
BLOWER ASSEMBLY - cab, parts list Figure 4-080
1шт.
12
L126051
GROUND STRAP
STRAP - ground
1шт.
13
L127554
WASHER,0.395" ID x 0.875" OD x 0.064" Thk
- flat, 11 x 25 x 2 mm, brass
2шт.
14
L127555
NUT,Hex, 3/8" - 16
- hex, 3/8 inch NC, brass
2шт.
15
96901C1
GROMMET
- blower wire
1шт.
16
117975
GROMMET,5/8" ID x 1 3/8" x .062", Diag Cut
- wiper wire
1шт.
17
1546537C1
GROMMET
- wire
1шт.
18
L127013
ELECTRICAL WIRE
CABLE - jumper, use when height control and return-to- transport option is not used
2шт.
19
L18337
CABLE TIE,9.95"-12.1" lg
STRAP - tie, 15 inch, nylon
2шт.
20
A187988
TESTER
CONTROL - transmission
1шт.
This is the EST 17 Brain (Black Box) that translates gear selector lever controller movement into proper transmission gear selection. This control is located in the cab, behind the panel that is in back of the seat.
1шт.
20
138496A1R
REMAN ELECT CONTROL
821, REMAN for Part No. A187988, N.A. Only
1шт.
20
138496A1C
CORE-ELECTRONIC CONT
Return Number, For N.A. Only
1шт.
21
492-11010
LOCK WASHER,#10
WASHER, LOCK, #10
3шт.
22
225-14110
NUT,#10-24
3шт.
23
1999948C1
FLANGE NUT
- hex flange, 5/16 inch, special, mounts ground wire to cab frame
1шт.
24
1970021C1
GROMMET
- harness, branch to front pedestal harness, if used
1шт.
Выбрано товаров: 27
