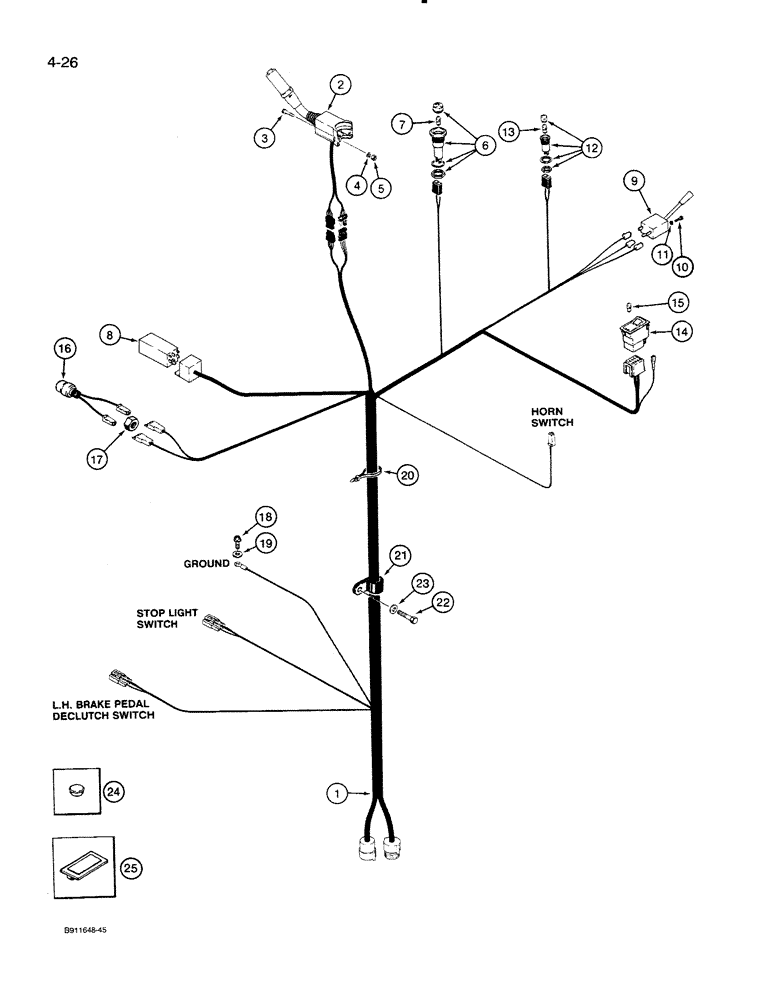

Запчасти Case 821 (4-026) - HARNESS - PEDESTAL, *P.I.N. JAK0024165 AND AFTER (04) - ELECTRICAL SYSTEMS

1

1546472C1

HARNESS

- pedestal

1шт.

2

A187943

CONTROL

LEVER - transmission control

1шт.

The backup alarm is activated by the reverse function in Ref. 2

1шт.

The EST 17 Brain (Black Box) control unit that works in conjunction with this shift controller is A187988, (Shown on Figure 4-34 Ref. 20) .

1шт.

2

245614A1R

REMAN ELECT CONTROL

821, REMAN for Part No. A187943

1шт.

2

245614A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

3

864-5020

HEX SOC SCREW,M5 x 20mm, Cl 8.8

SCREW, Hex Soc Hd, M5 x 20, 8.8

2шт.

4

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

2шт.

5

825-1405

NUT,M5, Cl 8

2шт.

A186268

LAMP

ASSEMBLY - master warning, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - lamp, includes lens cap and mounting hardware

1шт.

7

193067

BULB,C2F, #313, 28V

- lamp, No. 313

1шт.

8

A187940

FLASHER UNIT

FLASHER - turn signal

1шт.

9

1987555C1

SWITCH

LEVER - turn signal

1шт.

10

614-4012

BOLT,Hex, M4 x 0.7 x 12mm, Cl 8.8, Full Thd

- hex, full threads, 4 - 0.7 x 12 mm

2шт.

11

892-11004

LOCK WASHER,M4

WASHER, LOCK, M4

2шт.

A187667

LAMP

ASSEMBLY - indicator, turn signal

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - lamp, includes lens cap and mounting hardware

1шт.

13

T39215

BULB

- indicator lamp, No. 1820

1шт.

14

A187984

SWITCH

- rocker, flasher lamp

1шт.

This switch does not come with any lens to cover the bulb per supplier.

1шт.

15

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1

1шт.

16

A135520

SWITCH

- cold start

1шт.

17

425-1110

NUT,5/8"-18, G5

1шт.

18

281-34812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

SCREW - self-tapping, hex washer head, 5/16 NC x 3/4 inch

1шт.

19

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

21

R14668

CLAMP

- harness retaining

1шт.

22

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

23

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

1шт.

24

353-406

PLUG,Dome, .625" hole, Nylon

- nylon, 5/8 inch, used on units without Ref. 12 and 13, A187667

1шт.

25

245918C1

LENS

PLUG - rocker switch, used on units without Ref. 14, A187984

1шт.

26

1973557C1

GROMMET

- parking brake wire, not shown

1шт.
