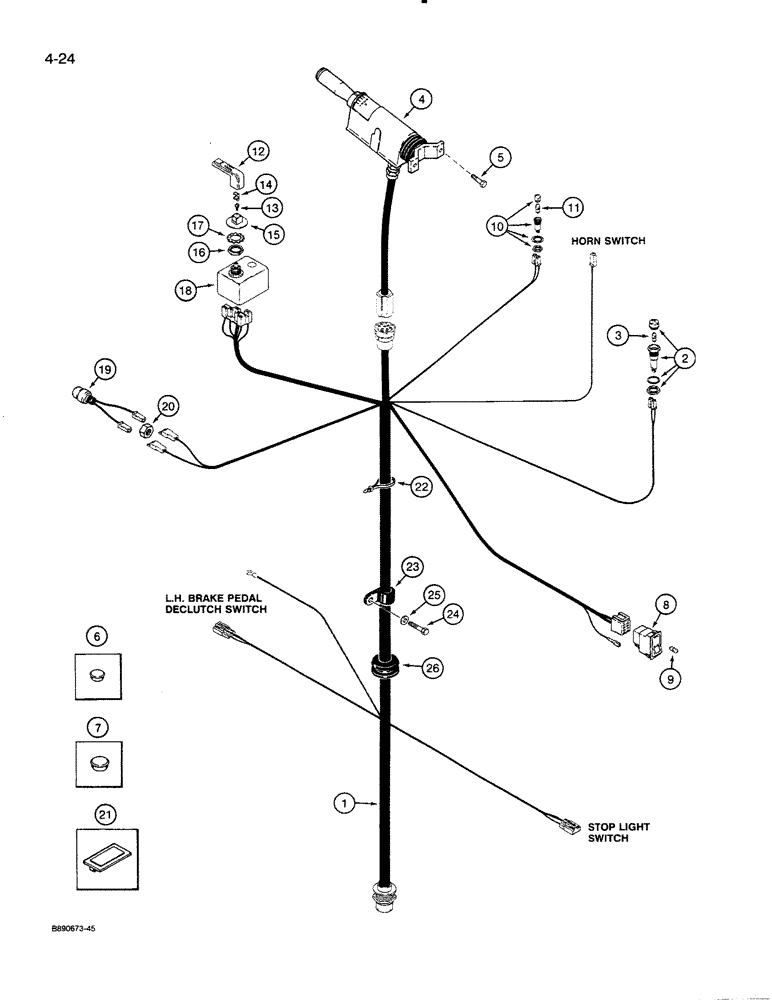

Запчасти Case 821 (4-024) - HARNESS - PEDESTAL, *PRIOR TO P.I.N. JAK0024165 (04) - ELECTRICAL SYSTEMS

1

A187710

HARNESS

- pedestal

1шт.

2

A186268

LAMP

ASSEMBLY - master warning, Includes: Ref. 3

1шт.

3

193067

BULB,C2F, #313, 28V

- lamp, No. 313

1шт.

4

A187760

SELECTOR

CONTROL ASSEMBLY - transmission, speed selector, Figure 4-064, Includes: P/N 109889A1 Hand Grip Cap, P/N Hand Grip Assembly, P/N 109896A1 Rubber Boot, P/N 109895A1 Can,P/N 109894A2. Ball.

1шт.

Internal parts are shown in 721 Parts Cat., but 8-4412 the bracket assembly (mounting of Ref 4) is 198777A1 and the spring is198778A1. Backup alarm is activated by reverse function in Ref. 4.

1шт.

4

75239663R

REMAN-JOYSTICK

821 CASE WHEEL LOADER (NORTH AMERICA), CONTROL ASSEMBLY - transmission, speed selector, Includes: P/N 109889A1 Hand Grip Cap, P/N Hand Grip Assembly, P/N 109896A1 Rubber Boot, P/N 109895A1 Can,P/N 109894A2. Ball., Reman for New PN A187760

1шт.

4

75239663C

CORE-JOYSTICK

Return Number

1шт.

5

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex flange, 8mm - 1.25 x 25 mm

2шт.

6

353-406

PLUG,Dome, .625" hole, Nylon

- nylon, 5/8 inch, units without Ref. 19, A135520

1шт.

7

353-412

PLUG,Dome, 1.093" hole, Nylon

- nylon, 1-3/16 inch, units without Ref. 18, L127265

1шт.

8

A187589

SWITCH

- rocker, flasher lamp, Includes: Ref. 9

1шт.

9

926645C1

BULB,W5, 12V, 1.2W

LAMP - W5/1, 2 24V1

1шт.

A187667

LAMP

ASSEMBLY - indicator, turn signal, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - lamp, includes lens cap and mounting hardware

1шт.

11

T39215

BULB

- indicator lamp, No. 1820

1шт.

12

97103C3

LEVER

- turn signal

1шт.

13

182-566

SCREW

- pan head, No. 5 NC x 3/8 inch

1шт.

14

1329896C1

CLASP

CLIP - retaining, lever

1шт.

15

97102C1

ADAPTER

- lever, turn signal

1шт.

16

D91352

JAM NUT

- jam, 3/4 inch NS

1шт.

17

193-98

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

1шт.

18

L127265

SWITCH

- turn signal

1шт.

19

A135520

SWITCH

- cold start

1шт.

20

129-127

NUT,5/8"-18, G5

1шт.

21

245918C1

LENS

PLUG - rocker switch, units without Ref. 8, A187589

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

23

R14668

CLAMP

- harness retaining

1-2шт.

24

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1-2шт.

25

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

1-2шт.

26

1970021C1

GROMMET

- harness, cab floor

1шт.
