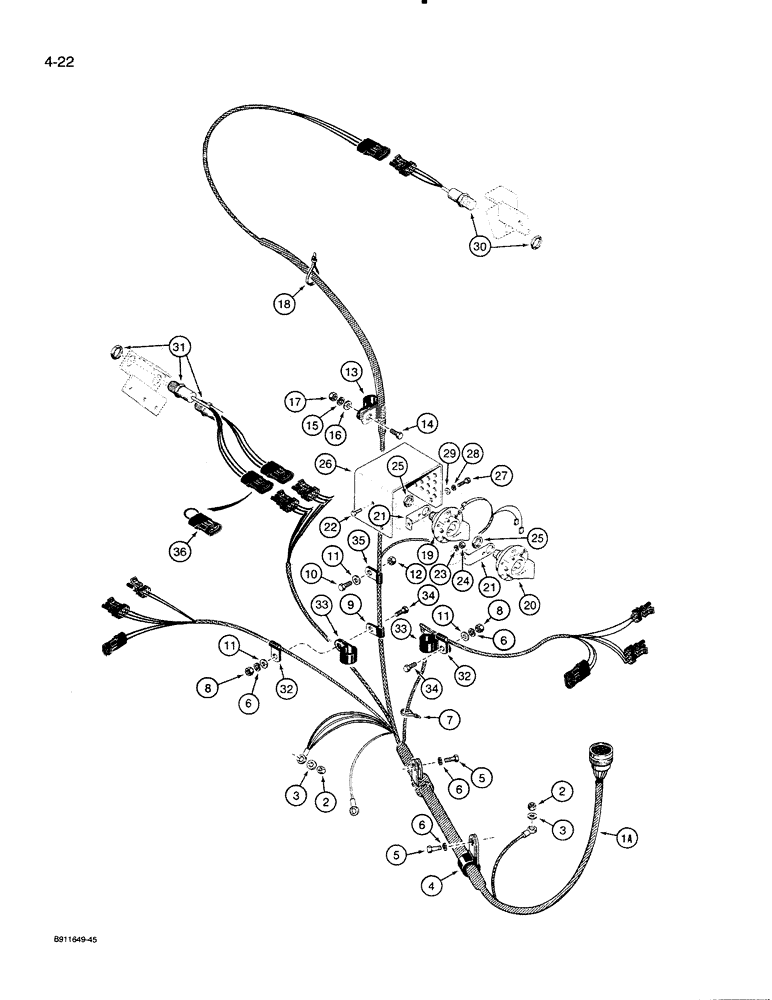

Запчасти Case 821 (4-022) - FRONT HARNESS - LAMPS AND SWITCHES (04) - ELECTRICAL SYSTEMS

1

L125337

HARNESS

- front, not shown, prior to P.I.N. JAK0024165

1шт.

L125337 is identical to L129090 except that it has a connector for auxiliary steering in the area of the ground wire to the rear frame.

1шт.

1a

L129090

HARNESS

- front, P.I.N. JAK0024165 and after

1шт.

2

L127555

NUT,Hex, 3/8" - 16

- hex, brass, special

2шт.

3

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

- flat, brass, special

2шт.

4

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- harness, use existing hardware

1шт.

5

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

6

492-11038

LOCK WASHER,3/8"

4шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

8

425-106

NUT,3/8"-16, Cl 5

2шт.

9

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- harness, to clamp on left-hand bucket cylinder tube

1шт.

10

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

11

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

3шт.

12

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

1шт.

13

R13931

CLAMP

- harness, to clamp on upper bucket cylinder tube

1шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

15

492-11038

LOCK WASHER,3/8"

1шт.

16

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

17

425-106

NUT,3/8"-16, Cl 5

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

19

R40730

HORN

- electric, F note, left-hand

1шт.

20

L10353

HORN

- electric, A note, right-hand

1шт.

21

L73799

BRACKET

- horn mounting

2шт.

22

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

23

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

24

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

25

L30866

LOCK NUT

- hex, 7/8 NC, special

2шт.

26

L125950

COVER

- horn

1шт.

27

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

28

492-11038

LOCK WASHER,3/8"

2шт.

29

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

30

1546497C1

SWITCH

- proximity, return to dig, includes hardware

1шт.

31

A186283

IGNITION SWITCH

SWITCH - proximity, height control and return to transport, includes hardware

2шт.

32

49838

CLAMP

- harness, lower, to bucket cylinder tubes

2шт.

33

D34033

CLAMP

- tube, lower, right-hand

2шт.

34

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

35

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- harness

1шт.

36

L127785

HARNESS

CONNECTOR - jumper wire, use when height control and return to transport option is not used

2шт.
