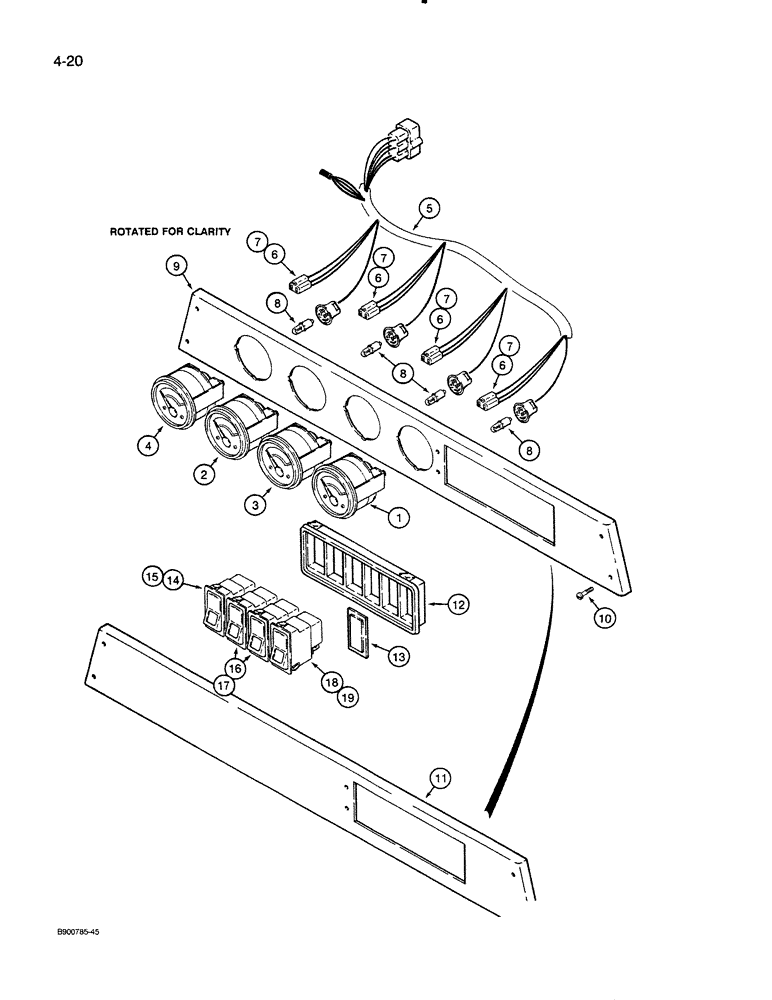

Запчасти Case 821 (4-020) - OPTIONAL GAUGES WITH BLADE TYPE TERMINALS, AND OVERHEAD SWITCHES (04) - ELECTRICAL SYSTEMS

1

L125857

VOLTMETER

GAUGE - voltmeter

1шт.

2

L125853

PRESSURE GAUGE

GAUGE - engine oil pressure, use with Ref. 36 sender shown on Figure 4-048

1шт.

3

L125854

GAUGE

- transmission oil temperature, use with Ref. 37 sender shown on Figure 4-048

1шт.

4

L125855

PRESSURE GAUGE

GAUGE - air pressure, use with Ref. 35 sender shown on Figure 4-048

1шт.

5

A187814

HARNESS

- optional gauge, Includes: Ref. 6 and 7

1шт.

6

L127566

CONNECTION

CONNECTOR - electrical

4шт.

7

L127569

SPADE TERMINAL,Female, 0.75 - 2 mm2

TERMINAL - blade type, not shown

12шт.

8

S116543

BULB

- gauge, No. 456

4шт.

9

1339563C2

PANEL, INSTRUMENTS

PANEL - instrument, overhead, use on units with optional gauges

1шт.

10

182-582

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- machine, pan Phillips, 1/4 NC x 3/4 inch

4шт.

11

1339868C2

PANEL, INSTRUMENTS

PANEL - instrument, overhead, use on units without optional gauges

1шт.

12

A187580

PANEL

- mounting, switch

1шт.

13

245918C1

LENS

PLUG - blanking

1шт.

14

A187622

SWITCH

- rocker, windshield washer

1шт.

See Figures 9-118 and 9-120 for rocker switch decals.

1шт.

15

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1, 2W

1шт.

16

A187621

SWITCH

- rocker, wiper, front and rear

2шт.

See Figures 9-118 and 9-120 for rocker switch decals.

1шт.

One A187621 wiper switch is included in L36339 canopy windshield and wiper kit shown on Figure 9-116.

1шт.

17

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1, 2W

1шт.

18

1913507C1

SWITCH ASSY

SWITCH - rocker, beacon

1шт.

See Figures 9-118 and 9-120 for rocker switch decals.

1шт.

19

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1, 2W

1шт.

20

353-401

PLUG,Dome, .312" hole, Nylon

- nylon, 5/16 inch, used with Ref. 9, 1339563C2, and Ref. 11, 1339868C2 panels, not shown

2-4шт.
