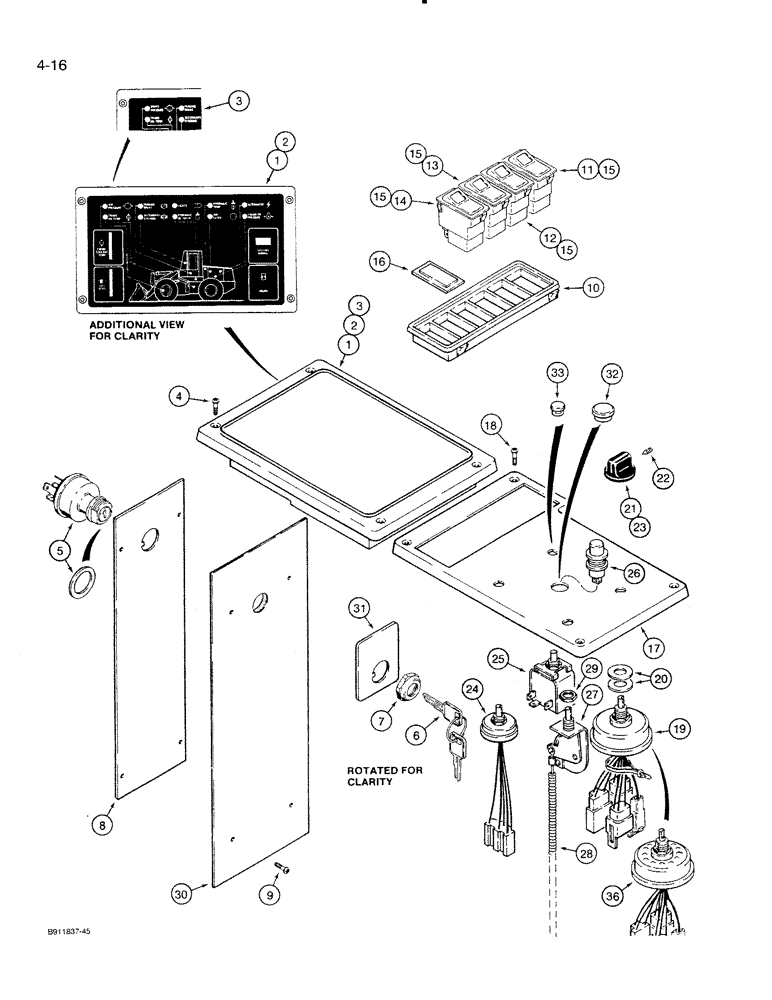

Запчасти Case 821 (4-016) - INSTRUMENT PANEL AND IGNITION SWITCH (04) - ELECTRICAL SYSTEMS

1

A187790

PANEL

- Ref monitoring system, no longer available, order Ref 30, sender, 33, resistor wire, 34, bolt, and 35, washer shown on Figure 4-050 and 8-78441 instruction sheet

1шт.

See Figures 9-118 and 9-120 for environmental control panel and rocker switch decals. See your Case dealer for service and parts information for the FACT coupler.

1шт.

185653A2R

REMAN-INSTR CLUSTER

821, Reman For New PN A187790

1шт.

185653A2C

CORE-CLUSTER, INSTR

Return Number

1шт.

2

A191109

CLUSTER

PANEL - instrument, with graphics, monitoring system with words AIR PRESSURE, no longer available, order 1987532C1 panel with words BRAKE PRESSURE

1шт.

See Figures 9-118 and 9-120 for environmental control panel and rocker switch decals. See your Case dealer for service and parts information for the FACT coupler.

1шт.

185653A2R

REMAN-INSTR CLUSTER

821, Reman For New PN A191109

1шт.

185653A2C

CORE-CLUSTER, INSTR

Return Number

1шт.

3

1987532C1

CLUSTER

PANEL - instrument, with graphics, monitoring system

1шт.

Replaced by 185653A1 Cluster. This cluster includes the 248316A1 Hourmeter, Wheel and 248317A1 Buzzer, Wheel.

1шт.

See Figures 9-118 and 9-120 for environmental control panel and rocker switch decals. See your Case dealer for service and parts information for the FACT coupler.

1шт.

185653A2R

REMAN-INSTR CLUSTER

821, Reman For New PN 1987532C1

1шт.

185653A2C

CORE-CLUSTER, INSTR

Return Number

1шт.

4

99997C1

SELF-TAP SCREW,Cross Pan Hd, #10-24 x 3/4"

SCREW - special, pan Phillips head, No. 10 NC x 1 inch

4шт.

4 pcs of 131-876 U-Nut are used to retain these Ref #4 Screws .

1шт.

D134737

IGNITION SWITCH

SWITCH ASSEMBLY - ignition, Includes: Ref 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

SWITCH - ignition

1шт.

6

A77313

SET OF 2 KEYS

KEY - switch, includes set of two keys; metal without padding

1шт.

7

A77314

NUT

- hex, special, key switch mounting

1шт.

8

1339909C1

LARGE PLATE

PLATE - mounting, ignition switch

1шт.

9

140-112

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

4шт.

10

A187580

PANEL

- mounting, switch

1шт.

11

A187762

SWITCH

- rocker, declutch selector, Includes: Ref 15

1шт.

See Figures 9-118 and 9-120 for environmental control panel and rocker switch decals. See your Case dealer for service and parts information for the FACT coupler.

1шт.

12

1913507C1

SWITCH ASSY

SWITCH - rocker, return to dig, Includes: Ref 15

1шт.

See Figures 9-118 and 9-120 for environmental control panel and rocker switch decals. See your Case dealer for service and parts information for the FACT coupler.

1шт.

13

1913507C1

SWITCH ASSY

SWITCH - rocker, height control, Includes: Ref 15

1шт.

See Figures 9-118 and 9-120 for environmental control panel and rocker switch decals. See your Case dealer for service and parts information for the FACT coupler.

1шт.

14

A187798

SWITCH

- rocker, return to transport and height control, Includes: Ref 15

1шт.

See Figures 9-118 and 9-120 for environmental control panel and rocker switch decals. See your Case dealer for service and parts information for the FACT coupler.

1шт.

15

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1, 2W, included with Refs. 11, 12, 13, and 14

1шт.

16

245918C1

LENS

PLUG - rocker switch, if used

1шт.

17

1970047C3

PANEL

- control, environmental

1шт.

18

140-112

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

4шт.

19

A187680

SWITCH

- lamp, five position, uses Ref 21 knob

1шт.

20

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

21

1339926C1

BUTTON

KNOB - control, uses Ref 22 set screw, if used

2-4шт.

22

178-7

SET SCREW,Hex Soc, #8-32 x 1/2"

SCREW - set, hex socket headless, No. 8 NC x 1/2 inch, cone

2-4шт.

23

1994720C1

KNOB

- push on, five position lamp and heater switches, if used

2шт.

24

92100C2

SWITCH

- blower motor

1шт.

25

A187954

SWITCH

- thermostat, units with air conditioning

1шт.

26

A187881

LAMP

- No. 1820, pressure indicator, amber lens, units with air conditioning, replaced A186299 lamp with red lens

1шт.

1977535C2

CABLE

ASSEMBLY - heater, for service order Refs. 27, switch and 28, cable, Includes: Ref 27 and 28

1шт.

27

1954651C2

CONTROL

SWITCH - heater, uses Ref 23 push on knob

1шт.

28

1954648C2

CABLE

- heater

1шт.

29

109311H

JAM NUT

- hex jam, 7/16 inch - 28 thread

1шт.

30

1969939C1

LARGE PLATE

FOAM - ignition switch mounting plate

1шт.

31

1339931C1

LARGE PLATE

PLATE - ignition switch

1шт.

32

353-407

PLUG,Dome, .687" hole, Nylon

- button, 11/16 inch, units without air conditioning

1шт.

33

353-403

PLUG,Dome, .437" hole, Nylon

Units without air conditioning Dome, .437" hole, Nylon

1шт.

34

S300775

SWITCH

- rocker, FACT coupler, not shown

1шт.

See your Case dealer for service and parts information for the FACT coupler.

1шт.

35

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1, 2W, not shown

1шт.

36

1994716C1

LIGHT SWITCH

SWITCH - Lamp, five position, uses Ref 23 push on knob

1шт.
