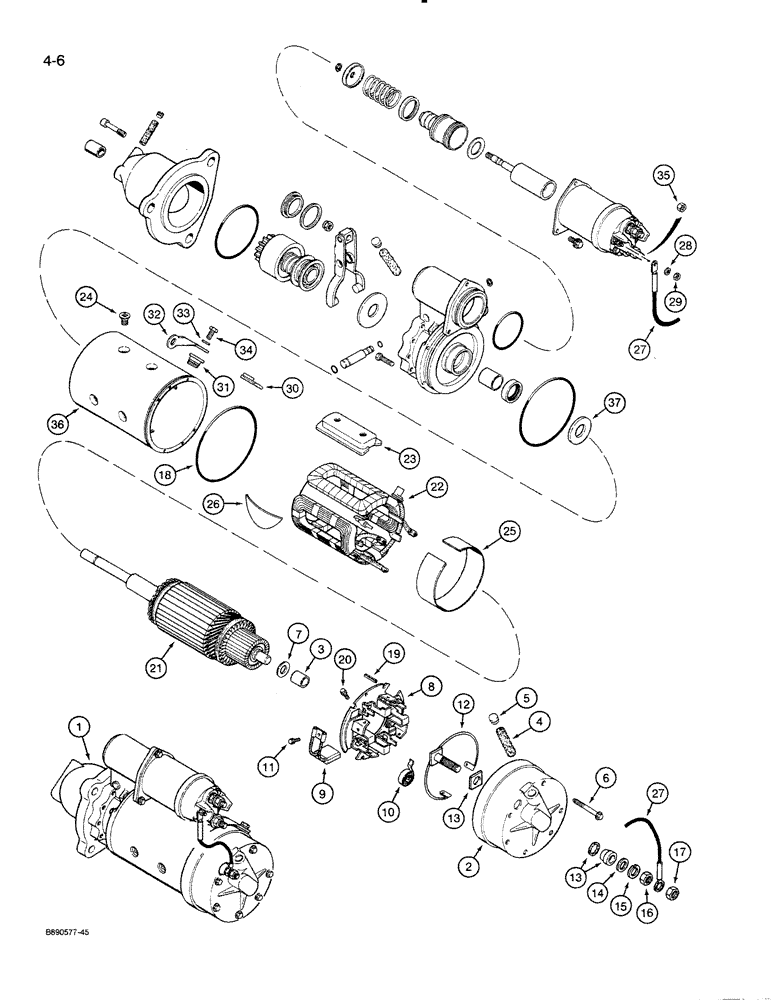

Запчасти Case 821 (4-006) - STARTER ASSEMBLY (04) - ELECTRICAL SYSTEMS

A186270

STARTING MOTOR

STARTER ASSEMBLY - production only, 24 volt, Delco-Remy No. 1993796, no longer used, order A187722 starter assembly, parts list Figures 4-012 and 4-014, Includes: Ref. 2 - 37

1шт.

1

A187568

STARTING MOTOR

STARTER ASSEMBLY - service replacement only, Delco-Remy No. 1990453, no longer used, order A187722 starter assembly, parts list Figure 4-012, Includes: Ref. 2 - 37

1шт.

2

A187561

COVER

ASSEMBLY - commutator end, Includes: Ref. 3 - 5

1шт.

3

A40868

BUSHING

- cover, commutator

1шт.

Part of bushing kit P/N A187514 and Figure 4-8

1шт.

4

A49769

WICK

- oil

1шт.

Part of bushing kit P/N A187514 and Figure 4-8

1шт.

5

A49573

PLUG

- oil wick

1шт.

Part of bushing kit P/N A187514 and Figure 4-8

1шт.

6

A187511

CAPTIVE WASHER SCREW

BOLT ASSEMBLY - with washer and seal, end cover

6шт.

Part of bushing kit P/N A187514 and Figure 4-8

1шт.

7

195-2056

WASHER,5/8" x 1" x .065"

- flat, 9/16 x 1 x 1/16 inch

1шт.

Part of bushing kit P/N A187514 and Figure 4-8

1шт.

8

A49778

BRUSH ASSY.

BRUSH ASSEMBLY - starter, Includes: Ref. 9 - 11

1шт.

9

A49777

COMMUTATOR BRUSH

BRUSH - starter

4шт.

10

A49575

SPRING

- brush

4шт.

11

A47894

SCREW,#8 - 32 x 5/16"

- brush retainer

4шт.

12

A49764

TERMINAL CONNECTOR

BOLT - terminal, lead

1шт.

13

A49768

KIT

INSULATOR KIT - terminal, commutator end

1шт.

14

195-2067

WASHER,33/64" x 7/8" x .065"

- flat, 1/2 x 7/8 x 1/16 inch

1шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

16

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

17

A47890

NUT

NUT - connector, terminal

1шт.

18

A49749

O-RING,4.737" ID x 4.943" OD

- field frame to commutator end cover

1шт.

Part of bushing kit P/N A187514 and Figure 4-8

1шт.

19

A49753

PIN, SPLIT (COTTER)

PIN - roll, end cover locating

2шт.

20

A47894

SCREW,#8 - 32 x 5/16"

- brush retainer

4шт.

21

A49770

ARMATURE

- starter

1шт.

22

A49776

COIL ASSY.

COIL ASSEMBLY - field

1шт.

23

R15115

SHOE

- pole

4шт.

24

A42127

SCREW,3/8" - 24 x 0.20"

- flat slotted head, pole shoe

8шт.

25

A49767

RUBBER INSULATOR

INSULATOR - terminal, field coil

1шт.

26

A41977

RUBBER INSULATOR

INSULATION - coil end

2шт.

27

A47895

ELECTRICAL WIRE

WIRE - field coil, Serial Range: terminal-solenoid

1шт.

28

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

29

129-667

NUT,#10-32, LH

1шт.

30

A49501

RUBBER INSULATOR

INSULATOR - inner, field terminal

1шт.

31

A49500

RUBBER INSULATOR

INSULATOR - outer, field terminal

1шт.

32

A49779

TERMINAL CONNECTOR

CONNECTOR - terminal, Serial Range: field-solenoid

1шт.

33

A42100

WASHER

- flat, field terminal

1шт.

34

A49751

BOLT,Hex, 1/4" - 20 x 9/16"

- connector, field terminal

1шт.

35

A47890

NUT

NUT - connector, terminal

1шт.

36

NSS

NOT SOLD SEPARAT

FRAME - field, order A187568 starter assembly

1шт.

37

A40892

WASHER

- thrust, armature center

1шт.

Part of bushing kit P/N A187514 and Figure 4-8

1шт.

A187513

KIT

BRUSH KIT - includes Refs. 6, 9, 10, 11, and 18 above

1шт.

A187514

KIT

BUSHING KIT - Includes Refs. 2, 3, 4, 5, 6, 7, 18, 37 and Figure 4-008

1шт.
