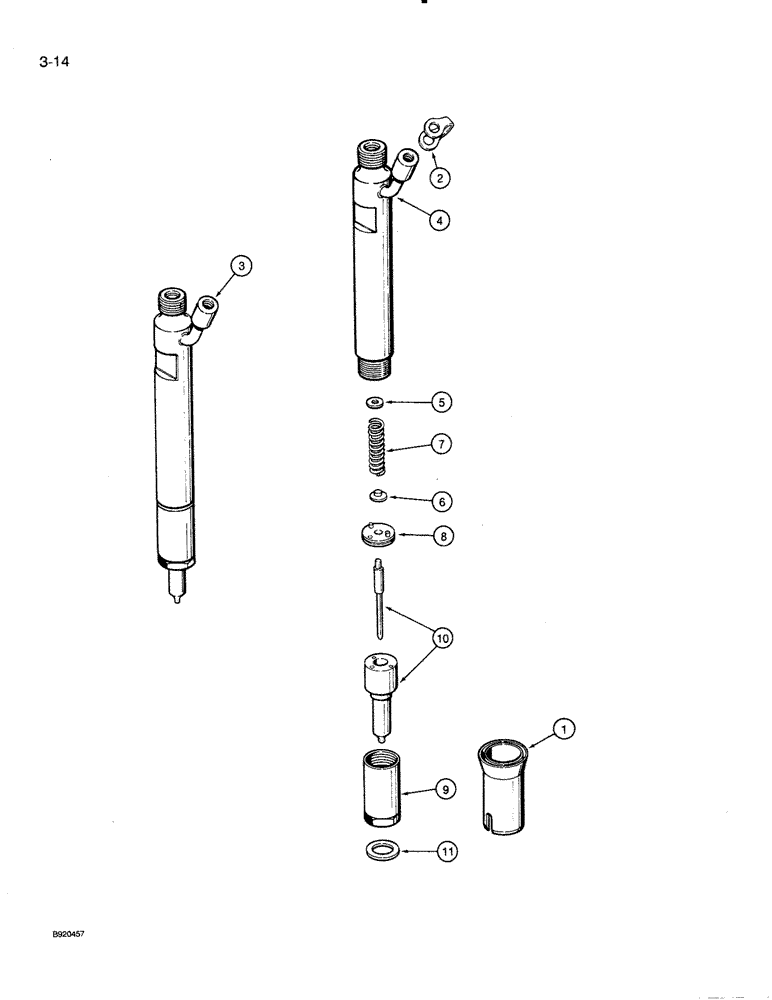

Запчасти Case 821 (3-014) - FUEL INJECTION NOZZLE, 6T-830 ENGINE (03) - FUEL SYSTEM

A77622

NOZZLE INJECTION

NOZZLE KIT - injector, Includes: Ref. 1 - 10

6шт.

JR908507

REMAN-FUEL INJECTOR

Remanufactured Injection Nozzle

6шт.

JC908507

CORE-FUEL INJECTOR

Return Part Number, Injection Pump

6шт.

1

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - injector

1шт.

2

J903380

SEAL

SEAL - connector

1шт.

3

NSS

NOT SOLD SEPARAT

INJECTOR ASSEMBLY - fuel, Includes: Ref. 4 - 10

1шт.

Whenever a nozzle is removed from cylinder head, J906659 gasket must be replaced before nozzle is installed.

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - injector

1шт.

A48186

KIT

KIT - shim, nozzle opening pressure, Includes: Ref. 5

1шт.

5

1806233C1

SHIM,1.00mm Thk

SHIM, , Nozzle (5 in kit) 1.00mm Thk

1шт.

5

1806234C1

SHIM,1.04mm Thk

SHIM, , Nozzle (5 in kit) 1.04mm Thk

1шт.

5

1806235C1

SHIM,1.08mm Thk

SHIM, , Nozzle (5 in kit) 1.08mm Thk

1шт.

5

1806236C1

SHIM,1.10mm Thk

SHIM, , Nozzle (5 in kit) 1.10mm Thk

1шт.

5

1806237C1

SHIM,1.14mm Thk

SHIM, , Nozzle (5 in kit) 1.14mm Thk

1шт.

5

1806238C1

SHIM,1.18mm Thk

SHIM, , Nozzle (5 in kit) 1.18mm Thk

1шт.

5

1806239C1

SHIM,1.20mm Thk

SHIM, , Nozzle (5 in kit) 1.20mm Thk

1шт.

5

1806240C1

SHIM,1.24mm Thk

SHIM, , Nozzle (5 in kit) 1.24mm Thk

1шт.

5

1806241C1

SHIM,1.28mm Thk

SHIM, , Nozzle (5 in kit) 1.28mm Thk

1шт.

5

1806242C1

SHIM,1.30mm Thk

SHIM, , Nozzle (5 in kit) 1.30mm Thk

1шт.

5

1806243C1

SHIM,1.34mm Thk

SHIM, , Nozzle (5 in kit) 1.34mm Thk

1шт.

5

1806244C1

SHIM,1.38mm Thk

SHIM, , Nozzle (5 in kit) 1.38mm Thk

1шт.

5

1806245C1

SHIM,1.40mm Thk

SHIM, , Nozzle (5 in kit) 1.40mm Thk

1шт.

5

1806246C1

SHIM,1.44mm Thk

SHIM, , Nozzle (5 in kit) 1.44mm Thk

1шт.

5

1806247C1

SHIM,1.48mm Thk

SHIM, , Nozzle (5 in kit) 1.48mm Thk

1шт.

5

1806248C1

SHIM,1.50mm Thk

SHIM, , Nozzle (5 in kit) 1.50mm Thk

1шт.

5

1806249C1

SHIM,1.54mm Thk

SHIM, , Nozzle (5 in kit) 1.54mm Thk

1шт.

5

1806250C1

SHIM,1.58mm Thk

SHIM, , Nozzle (5 in kit) 1.58mm Thk

1шт.

5

1806251C1

SHIM,1.60mm Thk

SHIM, , Nozzle (5 in kit) 1.60mm Thk

1шт.

5

1806252C1

SHIM,1.64mm Thk

SHIM, , Nozzle (5 in kit) 1.64mm Thk

1шт.

5

1806253C1

SHIM,1.68mm Thk

SHIM, , Nozzle (5 in kit) 1.68mm Thk

1шт.

5

1806254C1

SHIM,1.70mm Thk

SHIM, , Nozzle (5 in kit) 1.70mm Thk

1шт.

5

1806255C1

SHIM,1.74mm Thk

SHIM, , Nozzle (5 in kit) 1.74mm Thk

1шт.

5

1806256C1

SHIM,1.78mm Thk

SHIM, , Nozzle (5 in kit) 1.78mm Thk

1шт.

5

1806257C1

SHIM,1.80mm Thk

SHIM, , Nozzle (5 in kit) 1.80mm Thk

1шт.

5

1806258C1

SHIM,1.84mm Thk

SHIM, , Nozzle (5 in kit) 1.84mm Thk

1шт.

5

1806259C1

SHIM,1.88mm Thk

SHIM, , Nozzle (5 in kit) 1.88mm Thk

1шт.

5

1806260C1

SHIM,1.90mm Thk

SHIM, , Nozzle (5 in kit) 1.90mm Thk

1шт.

5

1806261C1

SHIM,1.94mm Thk

SHIM, , Nozzle (5 in kit) 1.94mm Thk

1шт.

5

1806262C1

SHIM,1.98mm Thk

SHIM, , Nozzle (5 in kit) 1.98mm Thk

1шт.

6

NSS

NOT SOLD SEPARAT

SEAT - nozzle pressure spring

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - nozzle pressure

1шт.

8

NSS

NOT SOLD SEPARAT

STOP - nozzle valve

1шт.

9

NSS

NOT SOLD SEPARAT

NUT - cap, nozzle tip

1шт.

10

NSS

NOT SOLD SEPARAT

TIP - injector nozzle

1шт.

11

J906659

SEAL

GASKET - nozzle

6шт.

Whenever a nozzle is removed from cylinder head, J906659 gasket must be replaced before nozzle is installed.

1шт.
