(3-012) - FUEL INJECTION PUMP AND DRIVE, 6T-830 ENGINE

Запчасти Case 821 (3-012) - FUEL INJECTION PUMP AND DRIVE, 6T-830 ENGINE (03) - FUEL SYSTEM

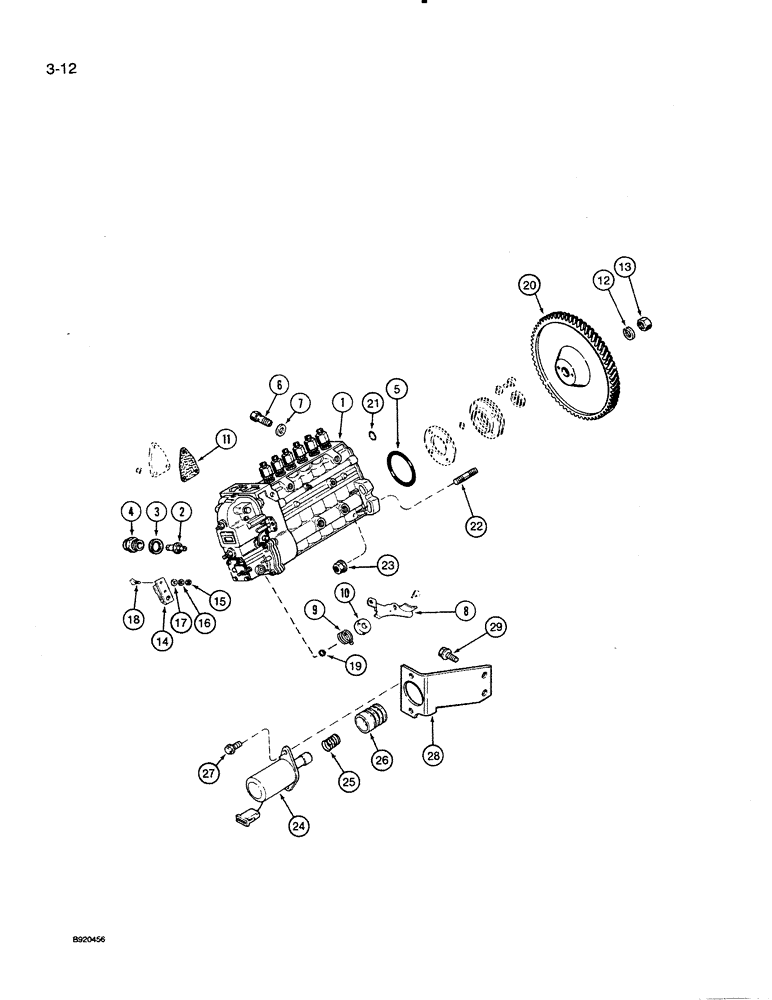

Схема запчастей Case 821 - (3-012) - FUEL INJECTION PUMP AND DRIVE, 6T-830 ENGINE (03) - FUEL SYSTEM
29
21
22
24
10
4
20
14
17
25
28
9
18
12
11
15
2
13
16
26
6
7
19
23
5
9
1
3
27
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

JR915974

REMAN-INJECTION PUMP

PUMP ASSEMBLY - injection, remanufactured (North America only), component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 2 - 19

1шт.

JC913339

CORE

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly, Includes: Ref. 2 - 19

1шт.

1

J915974

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, new, Includes: Ref. 2 - 19

1шт.

2

A77720

PIN

- timing

1шт.

3

933222R1

SEALING WASHER,M18 x 22 x 1.5

Plug M18 x 22 x 1.5

1шт.

4

J912888

PLUG

- timing

1шт.

5

A41856

O-RING,3mm Thk x 75mm ID

- sealing

1шт.

6

J912886

VALVE

- overflow

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

WASHER - valve sealing

1шт.

8

J910979

LEVER

- pump shutoff, replaces J914094

1шт.

9

J912890

SPRING

- lever shutoff

1шт.

10

691292C1

RETAINER

HOUSING - spring return

1шт.

11

A46322

GASKET

- cover plate

1шт.

12

A77775

LOCK WASHER

- lock, replaces J912895

1шт.

13

A41852

LOCK NUT

- hex lock

1шт.

14

1808728C1

LEVER

- throttle control

1шт.

15

1806312C1

NUT

- throttle lever

1шт.

16

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

18

1808822C1

THUMB SCREW,M6 x 26mm

BOLT - throttle lever

1шт.

19

680187C1

O-RING,2.5mm Thk x 9mm ID

- special sealing

1шт.

20

J912614

GEAR

- fuel pump

1шт.

(Not included with basic engine) .

1шт.

21

J916284

O-RING

- sealing

1шт.

22

J915036

STUD

- pump mounting, replaces J907978, 55 mm (2-5/32 in)

4шт.

23

J902662

FLANGE NUT

- hex flange, 10 mm

4шт.

24

J918601

SOLENOID

- fuel shutoff, replaces J914371, Includes: Ref. 25 and 26

1шт.

25

A77702

SPRING

- return, plunger

1шт.

26

A77681

BOOT

- protective, plunger

1шт.

27

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

2шт.

28

J916142

SUPPORT

BRACKET - solenoid mounting

1шт.

29

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 20 mm, class 10.9

2шт.
