Запчасти Case 821 (3-010) - FUEL FILTER AND TRANSFER PUMP, 6T-830 ENGINE (03) - FUEL SYSTEM

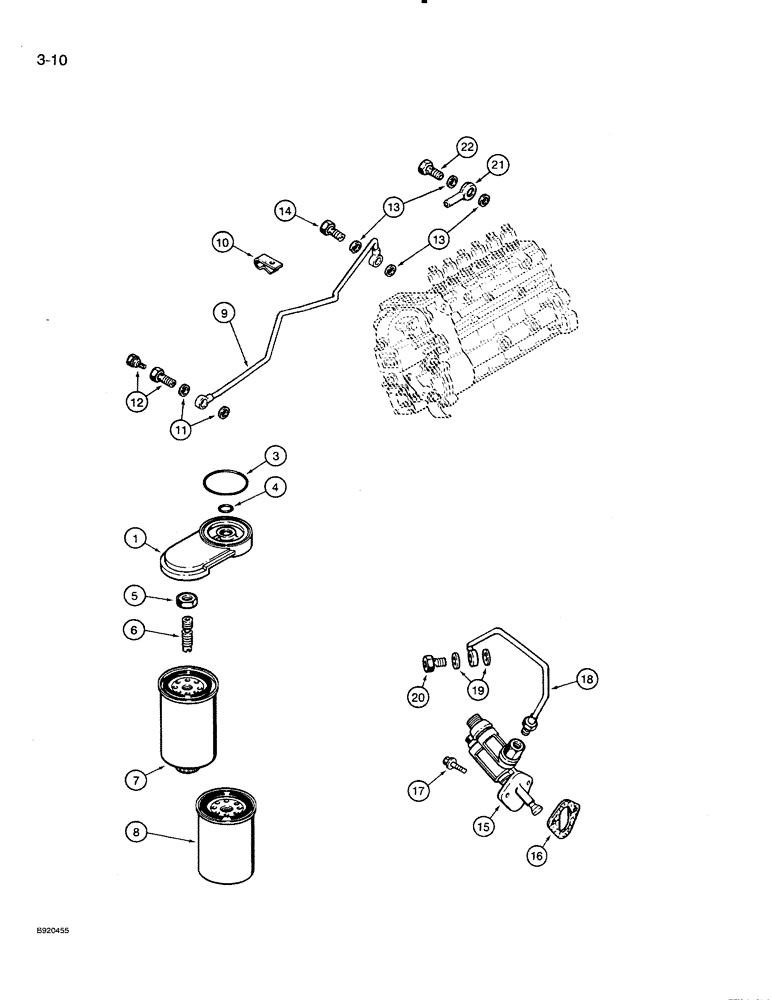

Схема запчастей Case 821 - (3-010) - FUEL FILTER AND TRANSFER PUMP, 6T-830 ENGINE (03) - FUEL SYSTEM
17
12
18
8
22
15
13
19
3
9
16
10
6
14
5
1
13
21
20
11
7
4

Артикул

Название

Примечание

Количество

1

J915240

SUPPORT

HEAD - fuel filter, replaces J904362

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, 70 mm ID

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, 14 mm ID

1шт.

5

J903293

JAM NUT

- hex, 16 mm - 2.0

1шт.

6

J903845

BANJO BOLT

ADAPTER - fuel

1шт.

A77470

SEPARATOR

KIT - fuel filter, Includes: Ref. 7 and 8

1шт.

7

J903410

FILTER

- fuel, primary

1шт.

8

J903640

FILTER, FUEL

FILTER - fuel, secondary

1шт.

9

J912923

FUEL TUBE,8 mm OD x 509.8 mm L

TUBE - fuel supply

1шт.

10

J914711

CLIP

- tube retaining, replaces A77436

1шт.

11

J918191

PACKING RING

WASHER - sealing, 12 x 18 x 1 mm, replaces J903037

2шт.

12

J905860

BANJO BOLT

BOLT - banjo hex, special

1шт.

13

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, 14 x 20 x 1 mm, replaces J914896

2шт.

14

J907541

BANJO BOLT

BOLT - connector, banjo

1шт.

15

J917998

PUMP

- fuel transfer, see Ref. 23 for repair kit

1шт.

16

J914304

GASKET

- mounting, pump

1шт.

17

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 20 mm

2шт.

18

J906790

FUEL TUBE,8 mm OD x 306.3 mm L

TUBE - supply

1шт.

19

J918191

PACKING RING

WASHER - sealing, replaces J903037

2шт.

20

J916361

BANJO BOLT

BOLT - banjo connector, 12 - 1.50 x 24 mm, replaces J911446

1шт.

21

J911447

CONNECTOR, ELEC

CONNECTOR - banjo, fuel return

1шт.

22

J912886

VALVE

BOLT - banjo

1шт.

23

J920544

GASKET KIT

KIT - repair, transfer pump, not shown, Includes: Ref. 24 - 28

1шт.

24

NSS

NOT SOLD SEPARAT

VALVE - check

2шт.

25

NSS

NOT SOLD SEPARAT

GASKET - check valve

2шт.

26

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

27

NSS

NOT SOLD SEPARAT

O-RING - seal

3шт.

28

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

Выбрано товаров: 28
