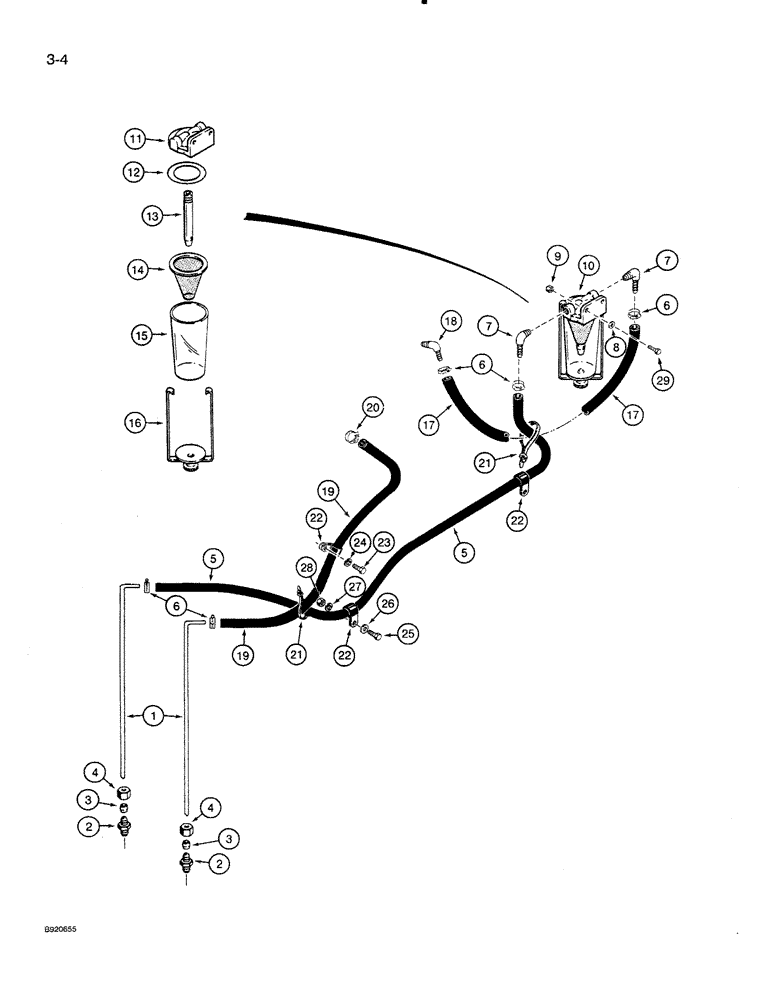

Запчасти Case 821 (3-004) - FUEL LINES AND SEDIMENT BOWL (03) - FUEL SYSTEM

1

L125266

FUEL TUBE,9.53 mm OD x 542, 46 mm L

TUBE - fuel

2шт.

222-638

FITTING,9/16"-24 x 3/8" NPT, Comp

ADAPTER - straight, 3/8 tube OD x 3/8 inch PT, Includes: Ref. 2 - 4

2шт.

2

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

3

222-654

FERRULE,3/8" Tube, Comp

- tapered, 3/8 inch tube OD

1шт.

4

222-664

TUBE NUT,9/16"-24, 45 Degree Fl, Comp

NUT - 9/16 - 24 inch thread, use with tapered sleeve

1шт.

5

L76635

HOSE,0.38" ID x 72.00", SAE 30R2 Type 1

0.38" ID x 72.00", SAE 30R2, Type I, Tank to Strainer

1шт.

6

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

- adj., includes screw #4, 0.25/0.62 Type F Worm

5шт.

7

217-293

FITTING,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

ELBOW - 90 degree, 3/8 barb stem x 1/4 inch PT

2шт.

8

496-21028

WASHER,.281" x 5/8" x .075", HDN

- flat, 9/32 x 5/8 x 5/64 inch, hardened

2шт.

9

86625061

NUT,1/4"-20, GB

NUT - hcx lock, 1/4 inch NC

2шт.

10

R18798

STRAINER ELEMENT

BOWL ASSEMBLY - sediment, fuel, Includes: Ref. 11 - 16

1шт.

11

R21356

HOUSING

BODY - sediment bowl

1шт.

12

R21357

GASKET

-, Serial Range: body-screen

1шт.

13

R21360

TUBE,0.687" DIA x 3.344" L

- sediment bowl

1шт.

14

R21359

FILTER SCREEN

SCREEN - strainer

1шт.

15

R21361

BOWL

- sediment

1шт.

16

R21358

CLAMP

RETAINER - sediment bowl

1шт.

17

S119750

HOSE,0.38" ID x 20.00", SAE 30R2 Type 3

- Strainer to pump, Cut from S118400 bulk shown below 0.38" ID x 20.00", SAE 30R2 Type 3

1шт.

18

217-293

FITTING,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

ELBOW - 90 degree, 3/8 barb stem x 1/4 inch PT

1шт.

19

D90237

FUEL HOSE,0.38" ID x 40.00", SAE 30R2

Return, Cut From A21562 Bulk Shown Below 0.38" ID x 40.00", SAE 30R2

1шт.

20

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

- adj., includes screw #4, 0.25/0.62 Type F Worm

1шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

22

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- hose, clamp on air reservoir bracket uses existing bracket hardware

3шт.

23

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

24

892-11010

LOCK WASHER,M10

1шт.

25

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

26

D41740

WASHER

- flat, 25/64 x 1 x 7/64 inch, hardened

1шт.

27

492-11038

LOCK WASHER,3/8"

1шт.

28

425-106

NUT,3/8"-16, Cl 5

1шт.

S118400

HOSE,0.38" ID x 300.00"

0.38" ID x 300.00"

1шт.

A21562

HOSE,0.38" ID x 25.00"

0.38" ID x 25.00'

1шт.

29

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.
