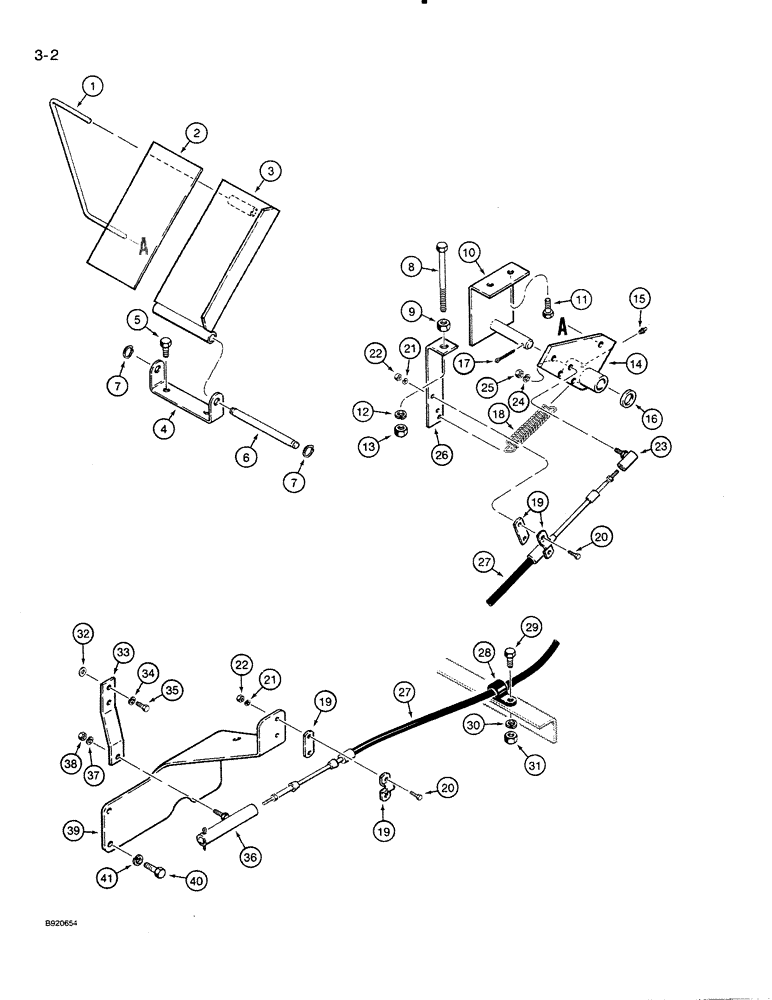

Запчасти Case 821 (3-002) - FOOT THROTTLE CONTROL (03) - FUEL SYSTEM

1

1339978C1

STEM

ROD - accelerator, foot, Serial Range: pedal-bellcrank

1шт.

2

L71193

ANTI-SKID STRIP

- accelerator pedal

1шт.

3

1969946C1

PEDAL

- accelerator, foot

1шт.

4

1969948C1

SUPPORT

MOUNT - accelerator pedal

1шт.

5

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

6

1969947C1

ROD

- pivot, pedal

1шт.

7

G46146

SNAP RING,#37, Ext

Ring, Snap, #37, Ext

2шт.

8

113-202

BOLT,Hex, 3/8" - 16 x 4", Gr 5

Hex, 3/8"-16 x 4", G5

1шт.

9

425-106

NUT,3/8"-16, Cl 5

1шт.

10

1969944C2

SUPPORT

BRACKET - accelerator pivot

1шт.

11

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

12

492-11038

LOCK WASHER,3/8"

1шт.

13

425-106

NUT,3/8"-16, Cl 5

1шт.

14

1339981C2

LEVER ASSY.

LEVER - accelerator pivot

1шт.

15

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

16

95-81116

WASHER,21/32" x 15/16" x .134"

- flat, 21/32 x 15/16 x 1/8 inch

1шт.

17

32-820

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

18

L106237

SPRING

- accelerator return

1шт.

19

L12441

CLAMP

- cable

2шт.

20

163-13

SCREW,Hex, #10 - 24 x 3/4"

- machine, hex, no. 10 NC x 3/4 inch

4шт.

21

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

22

225-14110

NUT,#10-24

Machine screw #10-24

4шт.

23

A76747

BALL JOINT,#10 -32 x 7/8" L

- ball, throttle cable, at accelerator pivot lever

1шт.

24

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

25

19694R1

LOCK NUT,1/4"-28, GB

NUT - hex, 1/4 NF

1шт.

26

L127151

SUPPORT

BRACKET - cable mounting

1шт.

27

L127491

CABLE

- accelerator

1шт.

28

49845

CLAMP

- cable

1шт.

29

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

30

492-11038

LOCK WASHER,3/8"

if used 3/8"

1шт.

31

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, self-locking, 3/8 inch NC

1шт.

32

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 7 x 13 x 2 mm

2шт.

33

L125821

LEVER

BAR - support, ball joint at engine

1шт.

34

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

35

814-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

36

1974525C1

BALL JOINT

JOINT - ball, throttle cable, at engine

1шт.

37

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

38

19694R1

LOCK NUT,1/4"-28, GB

NUT - hex, 1/4 NF

1шт.

39

L125822

BRACKET

- mounting, accelerator cable

1шт.

40

814-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

41

892-11010

LOCK WASHER,M10

2шт.
