Запчасти Case 821 (2-060) - CYLINDER BLOCK GASKET KITS 6T-830 ENGINE PRIOR TO ENGINE SERIAL NO 44500128 (02) - ENGINE

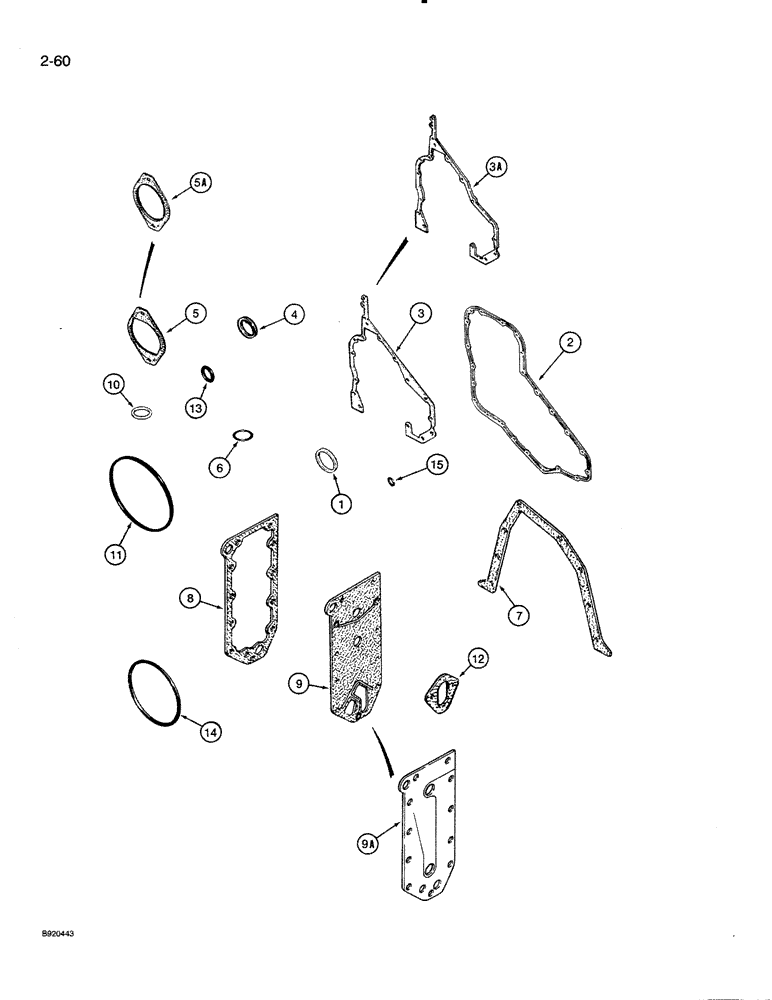

Схема запчастей Case 821 - (2-060) - CYLINDER BLOCK GASKET KITS 6T-830 ENGINE PRIOR TO ENGINE SERIAL NO 44500128 (02) - ENGINE
9
7
6
12
3
13
9a
4
11
1
10
3a
15
2
8
14
5
5a

Артикул

Название

Примечание

Количество

A77718

GASKET KIT

KIT - gasket, cylinder block, replaces A77631, Includes: Ref. 1 - 15

1шт.

The A77718 is prior to p.i.n. 44500128, and A77726 is p.i.n 44500128 and after.

1шт.

For complete engine overhaul order one each of valve grind kit, Figure 2-058, cylinder block kit, Figure 2-060, oil pan kit, Figure 2-028, front and rear crankshaft seal kit, Figure 2-050, and required cylinder head gasket, Figure 2-030.

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover

1шт.

2

J917780

GASKET,0.98mm Thk

GASKET - cover, gear, (replaces J913431, J917779)

1шт.

Ref #2, The gasket kits A77718 and A77726 will contain both, but for the 821 W.L. application, the J917779 should be discarded.

1шт.

3

J914303

SEAL

GASKET - housing, gear

1шт.

4

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - pin housing, replaces J914092

1шт.

5

J913288

SEAL

GASKET - cover, access

1шт.

6

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING - sealing, pump

1шт.

7

J914301

GASKET

- rear retainer

1шт.

8

J918174

GASKET,0.71mm Thk

- cooler core, replaces J914307

1шт.

9

J914308

GASKET

- filter head

1шт.

10

J901798

SEALING WASHER

WASHER - sealing

1шт.

11

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING -, Serial Range: housing-block

1шт.

12

J914304

GASKET

- mounting, pump

1шт.

13

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

14

J917737

O-RING,118.1 mm ID x 4 mm

- sleeve, replaces J907177

6шт.

15

J913994

O-RING

- sealing

1шт.

A77726

KIT

- gasket, cylinder block, Includes: Ref. 1 - 15

1шт.

For complete engine overhaul order one each of valve grind kit, Figure 2-058, cylinder block kit, Figure 2-060, oil pan kit, Figure 2-028, front and rear crankshaft seal kit, Figure 2-050, and required cylinder head gasket, Figure 2-030.

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover

1шт.

2

J917779

GASKET,0.98mm Thk

- cover, gear

1шт.

3a

J281721

GASKET

- housing, gear

1шт.

4

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - pin housing

1шт.

5a

J919601

GASKET

- cover, access

1шт.

6

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING - sealing, pump

1шт.

7

J914301

GASKET

- rear retainer

1шт.

8

J918174

GASKET,0.71mm Thk

- cooler core

1шт.

9a

J918332

GASKET

- filter head

1шт.

11

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING -, Serial Range: housing-block

1шт.

12

J914304

GASKET

- mounting, pump

1шт.

13

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

14

J917737

O-RING,118.1 mm ID x 4 mm

- sleeve

6шт.

15

J913994

O-RING

- sealing

1шт.

Выбрано товаров: 35
