Запчасти Case 821 (2-054) - PISTONS, 6T-830 ENGINE PISTONS PRIOR TO ENGINE SERIAL NO 44536857 (02) - ENGINE

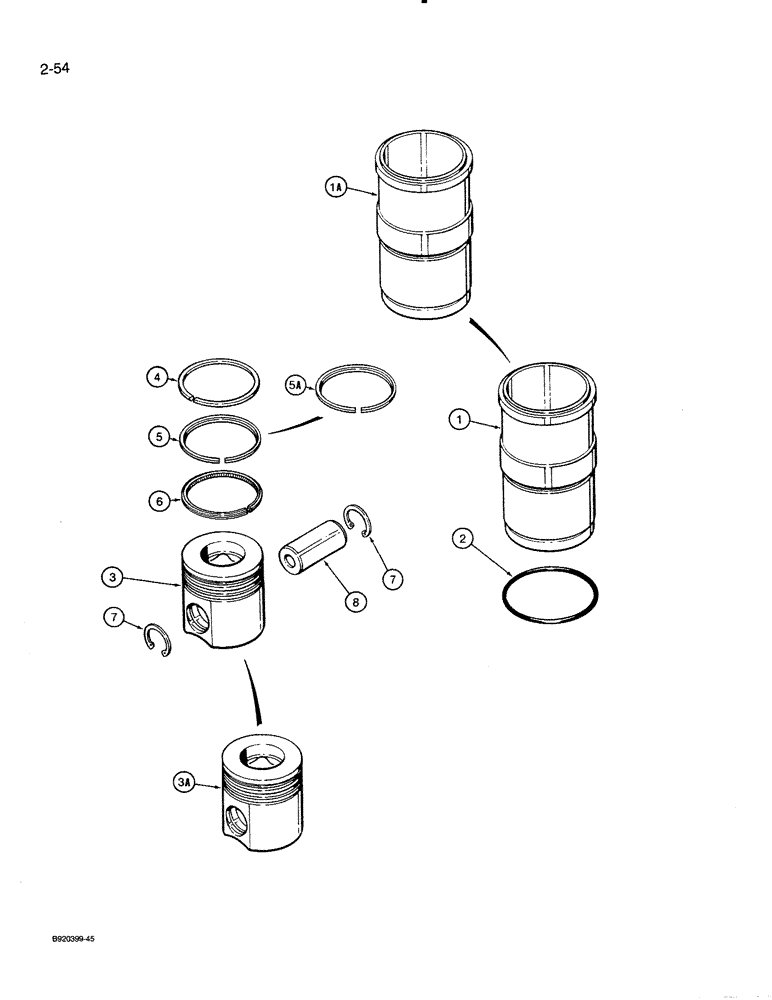

Схема запчастей Case 821 - (2-054) - PISTONS, 6T-830 ENGINE PISTONS PRIOR TO ENGINE SERIAL NO 44536857 (02) - ENGINE
5a
3
2
6
5
1
7
1a
4
7
3a
8

Артикул

Название

Примечание

Количество

A77598

CYLINDER

KIT - piston and sleeve, Includes: Ref. 1 - 8

6шт.

1

J907792

SLEEVE CYLINDER

SLEEVE - piston

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve

1шт.

A77599

KIT

- piston, standard, no longer available, order A77745 piston kit, shown below, Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 8749

1шт.

A77562

PISTON RING SET

KIT - piston ring, used with piston stamped 8749

1шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

5

NSS

NOT SOLD SEPARAT

RING - rectangular, compression, middle

1шт.

6

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

7

J901996

RING

- retaining

2шт.

8

J901597

PIN

- piston S/N 44536857 to S/N 44706125

1шт.

Not part of the A77598 Kit.

1шт.

A77747

PACKAGE

KIT - piston and sleeve, includes piston stamped 9928, Includes: Ref. 1 - 7

6шт.

A77772

PACKAGE, REPAIR

KIT - piston and sleeve, includes piston stamped 9564 or 3163, Includes: Ref. 1 - 7

6шт.

1

J907792

SLEEVE CYLINDER

SLEEVE - piston

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve

1шт.

A77745

PACKAGE

KIT - piston, standard, includes piston stamped 9928, Includes: Ref. 3A - 6

1шт.

A77771

PISTON ASSY.

KIT - piston, standard, includes piston stamped 9564 or 3163, Includes: Ref. 3A - 6

1шт.

3a

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 9928

1шт.

3a

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 9564 or 3163

1шт.

A77744

PACKAGE

KIT - piston ring, used with pistons stamped 9928, 9564, or 3163, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

5a

NSS

NOT SOLD SEPARAT

RING - keystone with reverse twist, compression, middle

1шт.

6

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

7

J901996

RING

- retaining

2шт.

8

J901597

PIN

- piston S/N 44706126 &, Start Serial: after

1шт.

A77798

PACKAGE, REPAIR

KIT - piston and sleeve, includes piston stamped 9564, Includes: Ref. 1A - 6

6шт.

1a

J919937

SLEEVE CYLINDER,114.02mm ID x 130.66mm OD x 237.12mm L

SLEEVE - piston

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve

1шт.

A77771

PISTON ASSY.

KIT - piston, standard, includes piston stamped 9564 or 3163

1шт.

3a

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 9564 or 3163

1шт.

A77744

PACKAGE

KIT - piston ring, used with piston stamped 9564 or 3163, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

5a

NSS

NOT SOLD SEPARAT

RING - keystone with reverse twist, compression, middle

1шт.

6

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

7

J901996

RING

- retaining

2шт.

8

J901597

PIN

- piston

1шт.

Выбрано товаров: 37
