Запчасти Case 821 (2-052) - FLYWHEEL AND HOUSING, 6T-830 ENGINE (02) - ENGINE

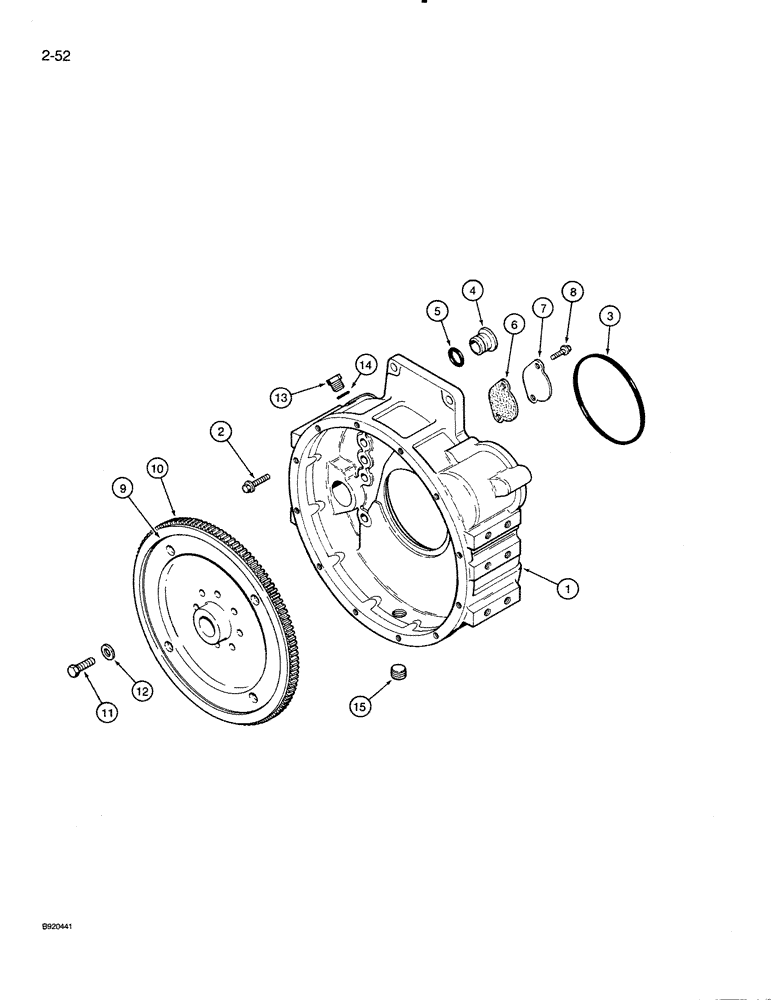

Схема запчастей Case 821 - (2-052) - FLYWHEEL AND HOUSING, 6T-830 ENGINE (02) - ENGINE
8
5
4
6
12
14
7
15
10
2
13
1
11
9
3

Артикул

Название

Примечание

Количество

1

J908799

HOUSING

- flywheel

1шт.

2

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

- heavy hex flange, 12 mm - 1.75 x 40 mm, Cl 10.9

12шт.

3

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING -, Serial Range: housing-block

1шт.

4

J910248

PLUG

- backing plate

1шт.

5

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

6

J908096

GASKET

- cover plate

1шт.

7

J908095

PLATE

- cover

1шт.

8

J902735

BOLT,M8 - 1.25 x 21 mm

- hex flange self tapping, 8 mm - 1.25 x 21 mm

2шт.

9

J919547

FLYWHEEL

ASSEMBLY - engine, replaces J917902, Includes: Ref. 10

1шт.

10

J905427

GEAR

- ring, flywheel

1шт.

11

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex, 12 mm - 1.25 x 32 mm

8шт.

12

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, flywheel bolt

8шт.

13

214389

PLUG,3/4" - 16 ORB

Includes Ref. 14 Hex Hd, 3/4"-16 ORB

1шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

15

221-845

PLUG,Hex Soc, 3/4"-14

- hex socket, 3/4 inch PT

1шт.

Выбрано товаров: 15
