Запчасти Case 821 (2-050) - CRANKSHAFT, 6T-830 ENGINE (02) - ENGINE

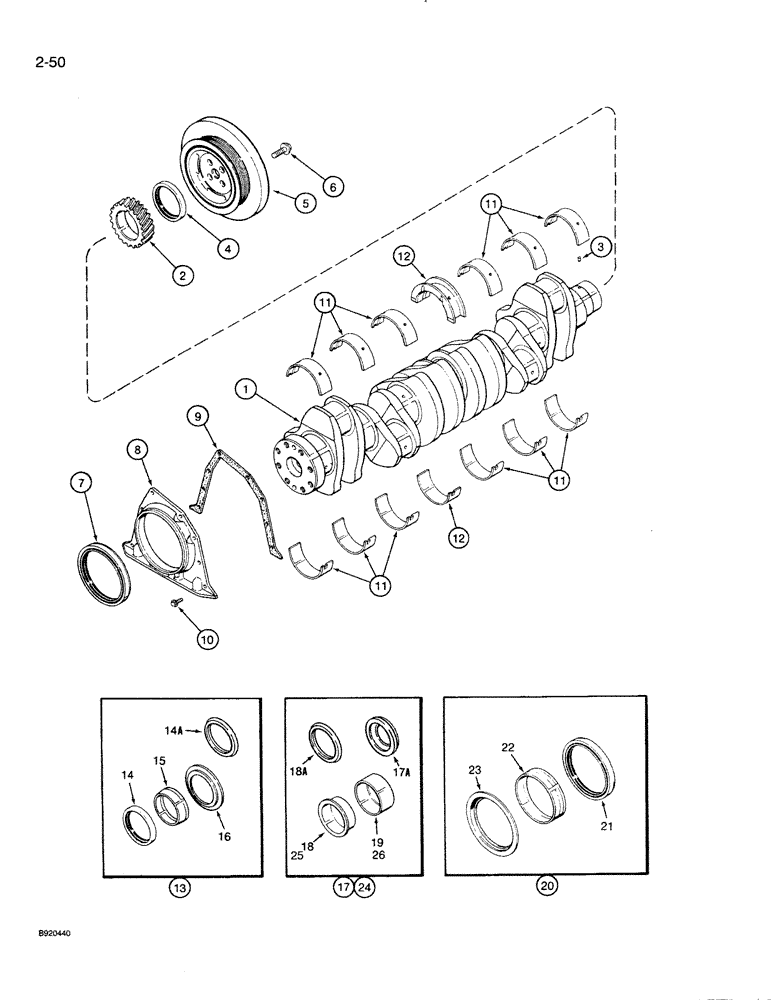

Схема запчастей Case 821 - (2-050) - CRANKSHAFT, 6T-830 ENGINE (02) - ENGINE
17
18
2
16
8
4
12
7
5
25
10
11
18a
12
9
11
15
11
14a
13
23
14
3
20
11
24
26
21
22
1
19
6
17a

Артикул

Название

Примечание

Количество

JR917443

REMAN-CRANKSHAFT

CRANKSHAFT - engine, remanufactured, (North America only), component parts shown on this Figure do not apply to the remanufactured assembly, replaces JR904363, Includes: Ref. 2 and 3

1шт.

JC917443

CORE-CRANKSHAFT

RETURN NUMBER - use this part number to return crankshaft for credit when using a remanufactured assembly, replaces JC904363, Includes: Ref. 2 and 3

1шт.

1

J917443

CRANKSHAFT

ASSEMBLY - engine, new, replaces J904363, Includes: Ref. 2 and 3

1шт.

2

J918380

GEAR

- crankshaft (Replaces J907645)

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

- dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil, front, order Ref. 13

1шт.

5

J914456

DAMPER

PULLEY - damper, vibration

1шт.

6

J906733

BOLT,Hex Flg, M14 x 1.5 x 35mm, Cl 12.9

- hex flange, 14 - 2.0 x 35 mm

4шт.

7

NSS

NOT SOLD SEPARAT

SEAL - oil, rear, order Ref. 20

1шт.

8

J921042

REAR COVER

RETAINER - rear seal, replaces J907535

1шт.

9

J914301

GASKET

- rear retainer

1шт.

10

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

8шт.

11

A77711

BEARING LINER

KIT - main bearing, upper and lower, standard, replaces A77569

6шт.

11

A77712

BEARING LINER

KIT - main bearing, upper and lower, 0.25 mm undersize, replaces A77570

6шт.

11

A77713

BEARING LINER

KIT - main bearing, upper and lower, 0.50 mm undersize, replaces A77571

6шт.

11

A77714

BEARING LINER

KIT - main bearing, upper and lower, 0.75 mm undersize, replaces A77572

6шт.

11

A77715

BEARING LINER

KIT - main bearing, upper and lower, 1.00 mm undersize, replaces A77573

6шт.

12

A77706

BEARING LINER

KIT - main thrust bearing, upper and lower, standard, replaces A77574

1шт.

12

A77707

SET

KIT - main thrust bearing, upper and lower, 0.25 mm undersize, replaces A77575

1шт.

12

A77708

BEARING LINER

KIT - main thrust bearing, upper and lower, 0.50 mm undersize, replaces A77576

1шт.

12

A77709

BEARING LINER

KIT - main thrust bearing, upper and lower, 0.75 mm undersize, replaces A77577

1шт.

12

A77710

BEARING LINER

KIT - main thrust bearing, upper and lower, 1.00 mm undersize, replaces A77578

1шт.

13

A77790

SEAL KIT

KIT - oil seal, crankshaft front, replaces J908139, Includes: Ref. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

14a

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

- dust

1шт.

15

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

16

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

17

A77791

GASKET KIT

KIT - wear sleeve, crankshaft front, replaces J908277, Includes: Ref. 17A - 19

1шт.

17a

NSS

NOT SOLD SEPARAT

SEAL - oil, use with Ref. 18, wear sleeve

1шт.

18

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

18a

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

- dust

1шт.

19

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

20

J909411

SEAL

KIT - oil seal, rear, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - oil, rear

1шт.

22

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

24

J906081

SLEEVE

KIT - wear sleeve, crankshaft rear, Includes: Ref. 25 and 26

1шт.

25

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

26

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

Выбрано товаров: 39
