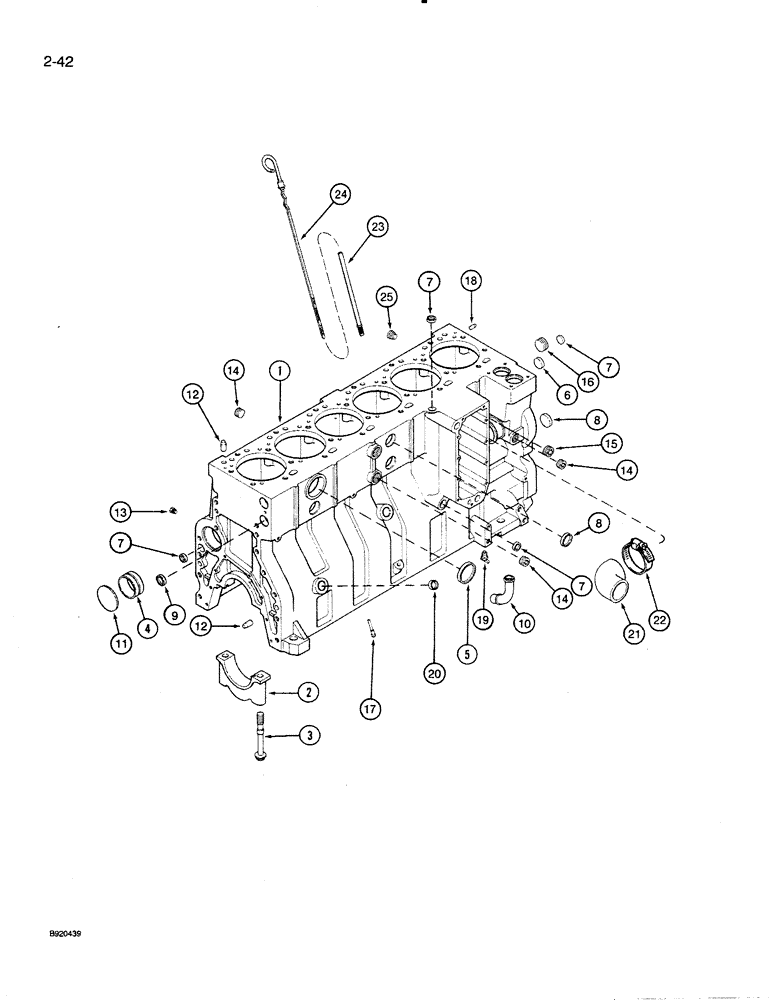

Запчасти Case 821 (2-042) - CYLINDER BLOCK 6T-830 ENGINE TWELVE PISTON COOLING NOZZLES ENGINE SERIAL NO 44487830 - 44706125 (02) - ENGINE

1989011C1

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY - complete, uses oil filter and cooler shown on Figure 2-024, for service order 1989098C2 basic engine shown on Figure 2-046

1шт.

Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe.

1шт.

1989011C3R

REMAN-REPLACEMENT EN

Remanufactured Replacement Engine

1шт.

6T-830C

CORE-REPLACEMENT ENG

Return Part Number, Complete

1шт.

1989011C2

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY - complete, uses oil filter and cooler shown on Figure 2-026, for service order 1989098C2 basic engine shown on Figure 2-046

1шт.

Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe.

1шт.

1989011C3R

REMAN-REPLACEMENT EN

Remanufactured Replacement Engine

1шт.

6T-830C

CORE-REPLACEMENT ENG

Return Part Number, Complete

1шт.

A174358

BASIC ENGINE

ENGINE ASSEMBLY - basic, new, engine serial number 44487830 - 44536857, uses Ref. 1, sleeve, and piston stamped 8749, shown on Figure 2-054, no longer available, order 1989098C2 basic engine shown on Figure 046

1шт.

Includes all parts except: starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front crank pulley, belt tensioner and turbocharger.

1шт.

Component parts shown on this Figure do not apply to the remanufactured assembly.

1шт.

47466038R

REMAN-BASIC ENGINE

Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

47466038C

CORE-BASIC ENGINE

Return Part Number

1шт.

1989098C1

BASIC ENGINE

ENGINE ASSEMBLY - basic, new, engine serial number 44536857 through 44706125, uses Ref. 1, sleeve, and pistons stamped 9928, 9564, or 3163, shown on Figure 2-054, no longer available, order 1989098C2 shown on Figure 2-046

1шт.

Includes all parts except: starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front crank pulley, belt tensioner and turbocharger.

1шт.

J921057

CRANKCASE

BLOCK ASSEMBLY - short, engine, new, (Includes stripped block, pistons, connecting rods and bearings and crankshaft). (Also order A77716), uses Ref. 1, sleeve and pistons stamped 8749, 9928, 9564, or 3163, shown on Figure 5-054

1шт.

Component parts shown on this Figure do not apply to the remanufactured assembly.

1шт.

JR921057

SKELETON ENGINE

Block Assembly, Short, Engine Remanufactured

1шт.

JC921057

CORE-SHORT ENGINE

Return Part Number, Engine Short Block, Use This Part Number To Return Block Core For Credit When Using a Remanufactured Assembly

1шт.

1

J920036

CYLINDER BLOCK

BLOCK ASSEMBLY - cylinder, stripped, new, (Also order A77716 kit)

1шт.

Component parts shown on this Figure do not apply to the remanufactured assembly.

1шт.

1

JR920036

CRANKCASE

Block Assembly, Cylinder, Stripped Remanufactured

1шт.

1

JC919374

CORE-ENGINE

Block Assembly, Use This Part Number To Return Stripped Block For Credit When Using a Remanufactured Assembly

1шт.

2

J917313

BEARING CAP

CAP - bearing, main

7шт.

3

J916369

FLANGE BOLT,Hex, M14 x 2 x 128mm, Cl 10.9

SCREW, Hex Flg Hd, M14 x 128

14шт.

4

REF

INSTRUCTION

BUSHING - camshaft, see Figure 2-036, Ref. 6

7шт.

5

A77782

PLUG

PLUG - expansion

1шт.

6

A77586

PLUG

PLUG - cup, 28.9 OD

1шт.

7

A77506

PLUG

PLUG - expansion, 21 mm O.D.

4шт.

8

J905401

PLUG

PLUG - expansion, 35 mm OD

3шт.

A77716

BLOCK

KIT - hardware, block

1шт.

9

A77530

PLUG

PLUG - expansion, 1-3/16 inch OD

2шт.

10

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - drain, turbocharger

1шт.

11

J901969

PLUG

PLUG - expansion, 69 mm OD

1шт.

12

J901846

PIN,12.01mm OD x 24mm L

PIN - dowel

4шт.

13

J906619

PLUG,1/8" - 27

PLUG - hex, 1/8 inch PT

6шт.

14

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

5шт.

15

A77505

PLUG

PLUG - hex, 3/4 inch PT

2шт.

16

A77533

PLUG

PLUG - hex, 1 inch PT

1шт.

17

J919003

NOZZLE INJECTION

NOZZLE - cooling, piston

12шт.

18

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, 16 mm

2шт.

19

A77425

DRAIN VALVE

VALVE - drain, coolant

1шт.

20

A77439

PLUG

PLUG - expansion, 22 mm OD

1шт.

21

J920762

ELBOW

HOSE - elbow, 79 mm (3-1/8 inch)

1шт.

22

J918521

HOSE CLAMP,59mm - 83mm

CLAMP - hose, 1-13/16 to 2-3/4 inch

1шт.

23

J905779

TUBE,9.52 mm OD x 228 mm L

TUBE - engine oil dipstick

1шт.

24

J908773

DIPSTICK,485.3mm L

DIPSTICK - oil gauge

1шт.

25

217-428

PLUG,Hex Soc, 1/8" - 27 NPTF

PLUG, , Replaces 1/8 inch plug behind air compressor Hex Soc, 1/8"-27, Brass

1шт.

26

A77595

KIT

KIT - heater, coolant, not shown, see Figure 2-040 for component parts

1шт.
