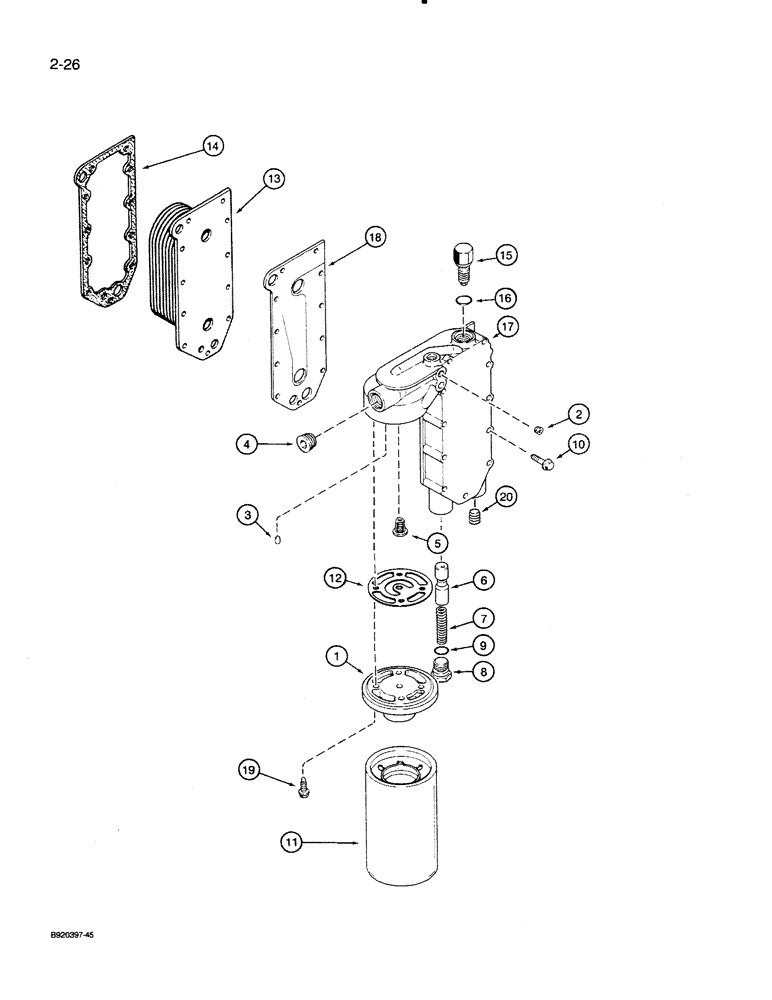

Запчасти Case 821 (2-026) - OIL FILTER AND COOLER, 6T-830 ENGINE, ENGINE SERIAL NO 44500128 AND AFTER (02) - ENGINE

1

J918334

FILTER HEAD

HEAD, FILTER

1шт.

2

J906619

PLUG,1/8" - 27

- hex socket, 1/8-27 inch PT

2шт.

3

A77722

PIN,7.95mm OD x 12.83mm L

- dowel, locating

1шт.

4

A77505

PLUG

- hex socket, 3/4-14 inch PT

1шт.

5

J902338

VALVE, PRESSURE RELI

VALVE - relief, pressure

1шт.

6

J918532

PLUNGER

- regulator

1шт.

7

A77541

SPRING

- compression

1шт.

8

J919016

PLUG

- regulator, hex, 24 mm - 1.50, Includes: Ref. 9

1шт.

9

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

-022, 70 Duro, .989" ID x .070" Thk

1шт.

10

845-8065

BOLT,Hvy Hex, M8 x 65mm, Cl 8.8

- hex flange, 8 - 1.25 x 65 mm

11шт.

11

J919562

ENGINE OIL FILTER

FILTER - oil, engine

1шт.

12

A77721

GASKET

- head, filter

1шт.

13

J918175

CORE, RADIATOR

CORE - cooler, oil

1шт.

14

J918174

GASKET,0.71mm Thk

- oil cooler core

1шт.

15

J919015

THERMOSTAT

- temperature, Includes: Ref. 16

1шт.

16

A77724

O-RING,3.05mm Thk x 23.62mm ID

SEAL - thermostat

1шт.

17

J918403

COVER

- oil cooler

1шт.

18

J918332

GASKET

- cover, oil cooler

1шт.

19

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

BOLT - hex flange, special, 8 - 1.25 x 25 mm

4шт.

20

221-1034

PLUG,Sq Soc, 1/2" MPTF

- square socket, 1/2 inch PT, water drain

1шт.
