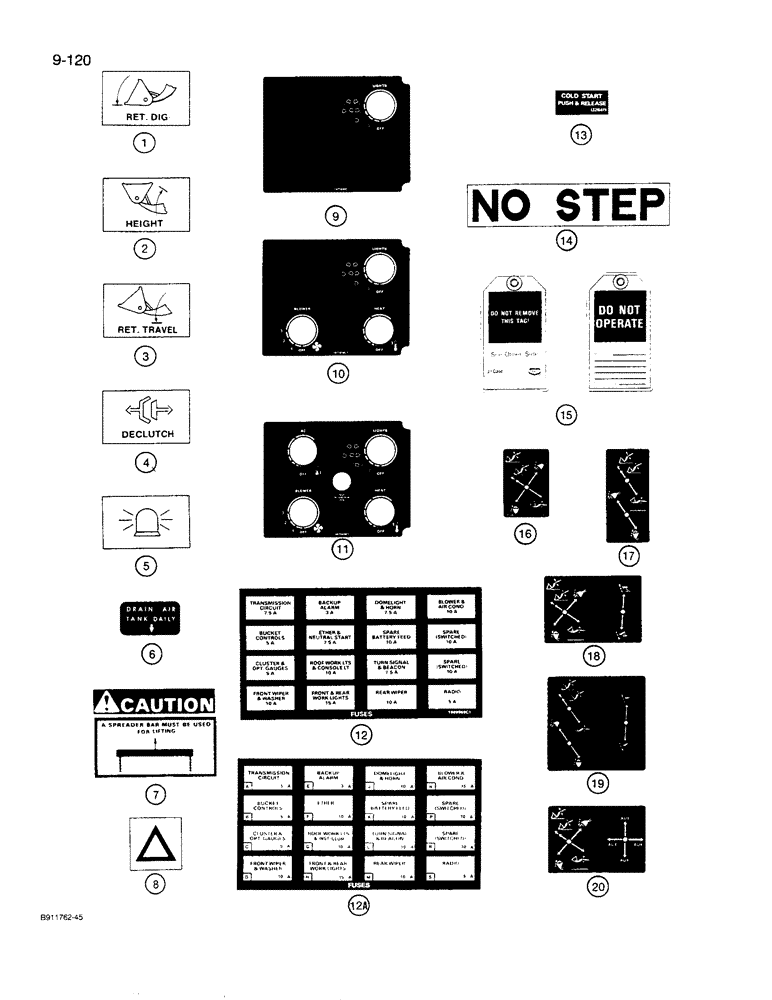

Запчасти Case 821 (9-120) - A187691 DECALS (09) - CHASSIS/ATTACHMENTS

1

A187691

IDEOGRAM

DECAL -, Serial Range: return-dig

1шт.

2

A187692

IDEOGRAM

DECAL - height control

1шт.

3

A187693

IDEOGRAM

DECAL - return to carry, bucket

1шт.

4

A187696

IDEOGRAM

DECAL - declutch selector

1шт.

5

245917C1

DECAL

DECAL - rotating beacon

1шт.

6

321-1077

DECAL

- Drain Air Tank Daily

1шт.

7

321-3574

DECAL

- Caution, a spreader bar must be used for lifting

3шт.

8

245916C1

DECAL

DECAL - flasher lamp switch

1шт.

9

1977820C1

DECAL

- environmental, canopy models

1шт.

10

1977818C1

DECAL

- environmental, cab models with heater

1шт.

11

1977819C1

DECAL

- environmental, cab models with heater and air conditioning

1шт.

12

1969969C1

DECAL

- fuses, cab and canopy models, Serial Range: -JAK0024165

1шт.

12a

1990800C2

DECAL

- fuses, cab and canopy models, Start Serial: JAK0024165

1шт.

13

L126411

DECAL

- cold start

1шт.

14

H239079

DECAL

- no step, located on air conditioning condenser

1шт.

15

321-4614

TAG

- do not operate

1шт.

16

1977319C2

DECAL

- loader control, use with L116443 or 107390A1 single lever remote control valve with two spool valve shown on Figure 8-052

1шт.

17

1977651C2

DECAL

- loader control, use with L118040 or 107389A1 dual lever remote control valve with two spool valve shown on Figure 8-054

1шт.

18

1977321C2

DECAL

- loader control, use with L116443 or 107390A1 single lever and L123917 auxiliary single lever remote control valves with three spool valve shown on Figure 8-058

1шт.

19

1977320C2

DECAL

- loader control, use with L118040 or 107389A1 dual lever and L123917 auxiliary single lever remote control valves with three spool valve shown on Figure 8-060

1шт.

20

1977322C2

DECAL

- loader control, use with (2) L116443 or 107390A1 single lever remote control valves with four spool valve shown on Figure 8-064

1шт.
