Запчасти Case 821 (2-022) - TURBOCHARGER, 6T-830 ENGINE (02) - ENGINE

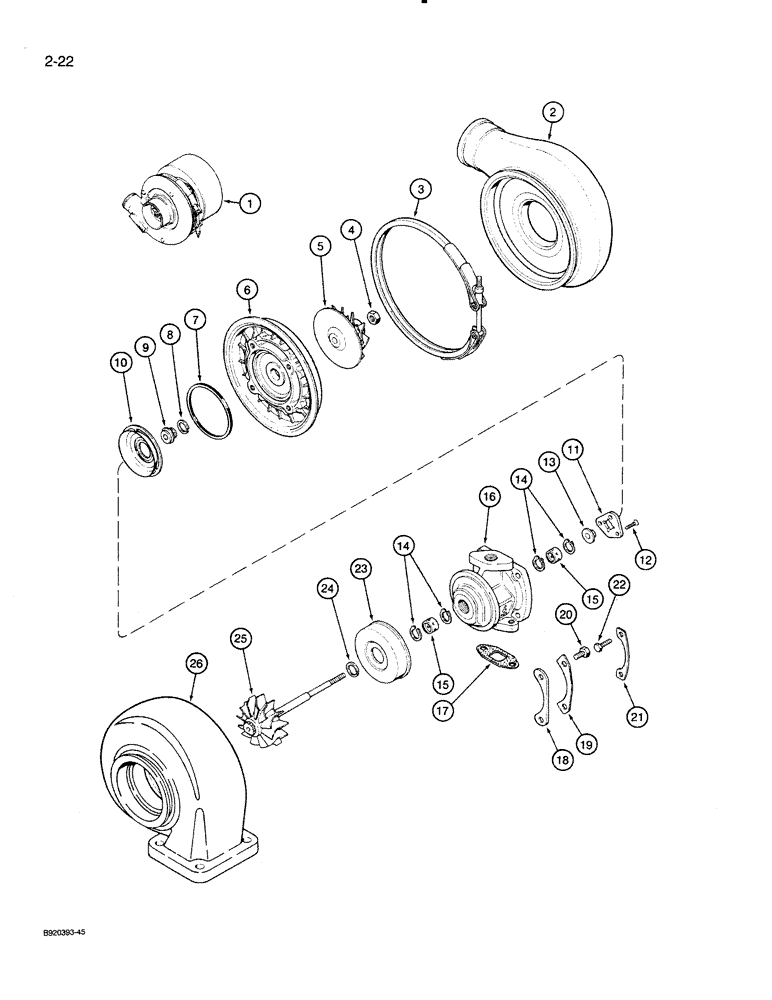

Схема запчастей Case 821 - (2-022) - TURBOCHARGER, 6T-830 ENGINE (02) - ENGINE
16
13
19
9
23
21
8
6
20
2
26
14
15
3
1
7
25
11
22
4
15
14
12
18
10
5
17
24

Артикул

Название

Примечание

Количество

1

J919199

TURBOCHARGER

TURBOCHARGER ASSEMBLY - engine, new, Includes: Ref. 2 - 26

1шт.

1

JR802303

REMAN-TURBOCHARGER

821, Reman For New P/N J919199

1шт.

1

JC528777

CORE-TURBOCHARGER

Return Part Number

1шт.

1

JR909308

TURBOCHARGER

TURBOCHARGER ASSEMBLY - engine, remanufactured (North America only), component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 2 - 26

1шт.

1

JC909308

TURBOCHARGER

RETURN NUMBER - use this part number to return turbocharger core for credit when using a remanufactured assembly, Includes: Ref. 2 - 26

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - compresor

1шт.

3

NSS

NOT SOLD SEPARAT

CLAMP - housing

1шт.

4

NSS

NOT SOLD SEPARAT

NUT - hex lock

1шт.

Part of overhaul, turbocharger, kit P/N J904772

1шт.

5

NSS

NOT SOLD SEPARAT

ROTOR - turbocharger

1шт.

6

NSS

NOT SOLD SEPARAT

DIFFUSER - compressor

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - diffuser

1шт.

Part of overhaul, turbocharger, kit P/N J904772

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - split ring

1шт.

Part of overhaul, turbocharger, kit P/N J904772

1шт.

9

NSS

NOT SOLD SEPARAT

SLINGER - oil

1шт.

10

NSS

NOT SOLD SEPARAT

BAFFLE - oil

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING - thrust

1шт.

Part of overhaul, turbocharger, kit P/N J904772

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW - flat head slotted

3шт.

Part of overhaul, turbocharger, kit P/N J904772

1шт.

13

NSS

NOT SOLD SEPARAT

COLLAR - thrust

1шт.

14

NSS

NOT SOLD SEPARAT

RING - snap retaining

4шт.

Part of overhaul, turbocharger, kit P/N J904772

1шт.

15

NSS

NOT SOLD SEPARAT

BEARING - impeller shaft

2шт.

Part of overhaul, turbocharger, kit P/N J904772

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING - bearing, turbine

1шт.

17

NSS

NOT SOLD SEPARAT

GASKET - oil drain

1шт.

18

NSS

NOT SOLD SEPARAT

PLATE - clamp, turbine housing

2шт.

19

NSS

NOT SOLD SEPARAT

PLATE - lock, turbine housing

2шт.

Part of overhaul, turbocharger, kit P/N J904772

1шт.

20

NSS

NOT SOLD SEPARAT

BOLT - hex, retaining

4шт.

Part of overhaul, turbocharger, kit P/N J904772

1шт.

21

NSS

NOT SOLD SEPARAT

PLATE - lock, turbine

2шт.

Part of overhaul, turbocharger, kit P/N J904772

1шт.

22

NSS

NOT SOLD SEPARAT

BOLT - hex lock

4шт.

Part of overhaul, turbocharger, kit P/N J904772

1шт.

23

NSS

NOT SOLD SEPARAT

SHIELD - heat, turbine

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - ring, turbine

1шт.

Part of overhaul, turbocharger, kit P/N J904772

1шт.

25

NSS

NOT SOLD SEPARAT

ROTOR - turbocharger

1шт.

26

NSS

NOT SOLD SEPARAT

HOUSING - turbocharger

1шт.

J904772

PACKAGE, REPAIR

KIT - overhaul, turbocharger, Includes Refs. 4, 7, 8, 11, 12, 14, 15, 19, 20, 21, 22 and 24

1шт.

Выбрано товаров: 43
