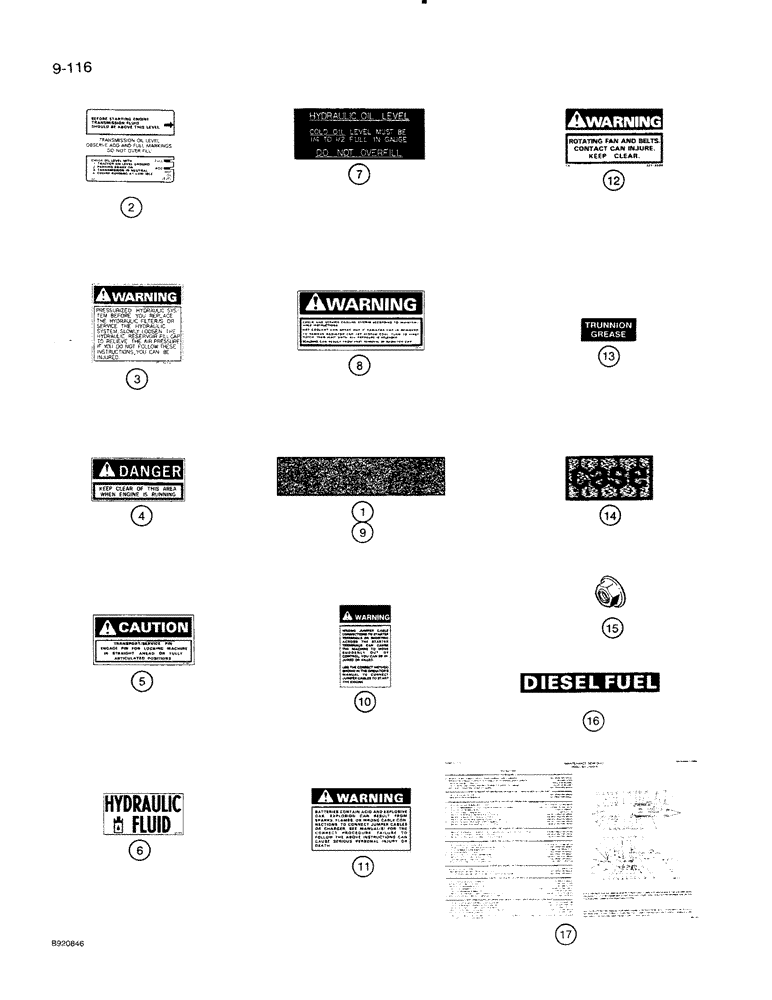

Запчасти Case 821 (9-116) - S243101 DECALS (09) - CHASSIS/ATTACHMENTS

1

S243101

WEAR PAD

PAD - non-skid, counterweight

1шт.

For additional decals see Figures 9-118 and 9-120

1шт.

Part of decal . instructions, kit P/N L36342 and Figure 9-118

1шт.

2

L125910

DECAL

- transmission oil level

1шт.

For additional decals see Figures 9-118 and 9-120

1шт.

Part of decal . instructions, kit P/N L36342 and Figure 9-118

1шт.

3

321-6666

DECAL

- Warning, pressurized hydraulic system

2шт.

For additional decals see Figures 9-118 and 9-120

1шт.

Part of decal . instructions, kit P/N L36342 and Figure 9-118

1шт.

4

321-3205

DECAL

- Danger, rear chassis

2шт.

For additional decals see Figures 9-118 and 9-120

1шт.

Part of decal . instructions, kit P/N L36342 and Figure 9-118

1шт.

5

321-3927

DECAL

- Caution, transport

1шт.

For additional decals see Figures 9-118 and 9-120

1шт.

Part of decal . instructions, kit P/N L36342 and Figure 9-118

1шт.

6

321-6376

DECAL

- Hydraulic Fluid

1шт.

For additional decals see Figures 9-118 and 9-120

1шт.

Part of decal . instructions, kit P/N L36342 and Figure 9-118

1шт.

7

L117520

DECAL

- hydraulic oil level

1шт.

For additional decals see Figures 9-118 and 9-120

1шт.

Part of decal . instructions, kit P/N L36342 and Figure 9-118

1шт.

8

321-6672

DECAL

- Warning, check and service cooling system

1шт.

For additional decals see Figures 9-118 and 9-120

1шт.

Part of decal . instructions, kit P/N L36342 and Figure 9-118

1шт.

9

D55216

PAD,2" x 9"

PAD - non-skid

24шт.

For additional decals see Figures 9-118 and 9-120

1шт.

Part of decal . instructions, kit P/N L36342 and Figure 9-118

1шт.

10

321-6718

DECAL

- Warning, wrong jumper cable connections to starter terminals

1шт.

For additional decals see Figures 9-118 and 9-120

1шт.

Part of decal . instructions, kit P/N L36342 and Figure 9-118

1шт.

11

321-6714

DECAL

- battery booster cable

1шт.

For additional decals see Figures 9-118 and 9-120

1шт.

Part of decal . instructions, kit P/N L36342 and Figure 9-118

1шт.

12

321-3596

DECAL

- Warning, rotating fan and belts

2шт.

For additional decals see Figures 9-118 and 9-120

1шт.

Part of decal . instructions, kit P/N L36342 and Figure 9-118

1шт.

13

L116271

DECAL

- trunnion lubrication

1шт.

For additional decals see Figures 9-118 and 9-120

1шт.

Part of decal . instructions, kit P/N L36342 and Figure 9-118

1шт.

14

321-4739

EMBLEM

- Case, on grille

1шт.

For additional decals see Figures 9-118 and 9-120

1шт.

Part of decal . instructions, kit P/N L36342 and Figure 9-118

1шт.

15

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - emblem retaining

2шт.

For additional decals see Figures 9-118 and 9-120

1шт.

Part of decal . instructions, kit P/N L36342 and Figure 9-118

1шт.

16

321-2601

DECAL

- Diesel Fuel

1шт.

17

L125694

DECAL

- maintenance

1шт.

For additional decals see Figures 9-118 and 9-120

1шт.

Part of decal . instructions, kit P/N L36342 and Figure 9-118

1шт.

L36342

DECAL

KIT - decal, Includes instructions, Refs. 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 and 17e and 9-118

1шт.
