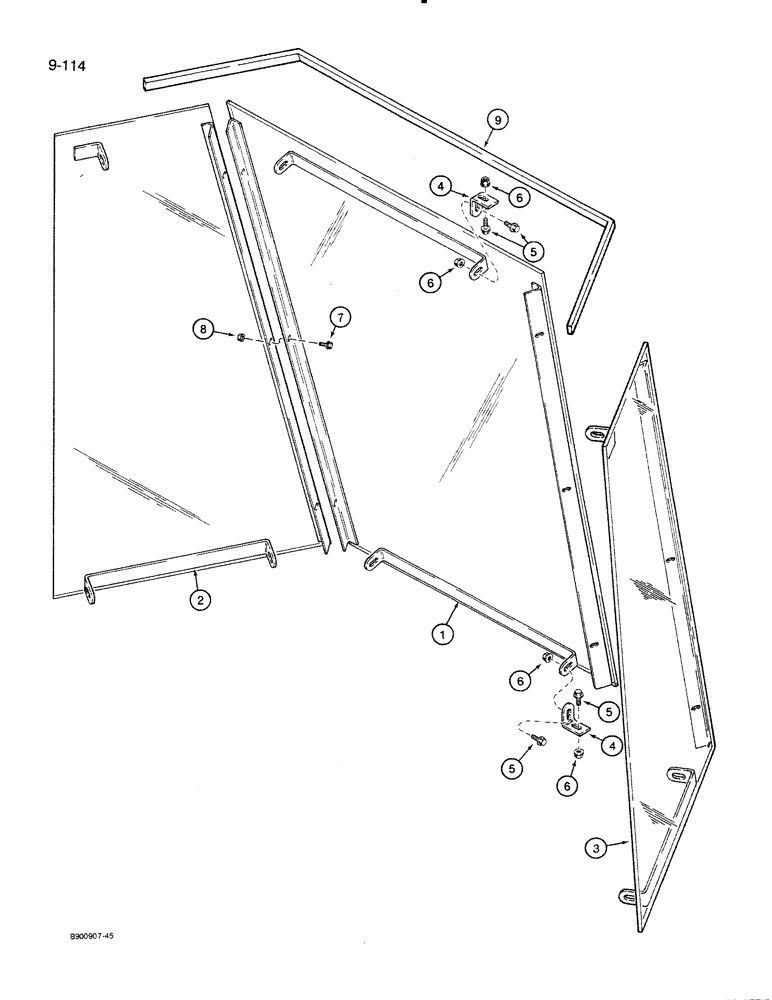

Запчасти Case 821 (9-114) - *CANOPY WINDSHIELD AND WIPER KIT (09) - CHASSIS/ATTACHMENTS

L36339

SET

KIT - windshield and wiper, includes instruction sheet, Includes: Ref. 1 - 12

1шт.

1

1344155C1

SHIELD

WINDSHIELD - canopy, includes brackets

1шт.

2

1344156C1

GLASS

- includes brackets, side, left-hand

1шт.

3

1344157C1

GLASS

- includes brackets, side, right-hand

1шт.

4

1344152C1

ANGLE

BRACKET - angle

10шт.

5

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

20шт.

6

231-5146

FLANGE NUT,3/8"-16

20шт.

7

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

SCREW - slotted truss, 1/4 NC x 1/2 inch

6шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

9

1344330C1

SEAL, GLASS

- 1475 mm long, adhesive back, cut from 1983809C1, see below

1шт.

10

A187621

SWITCH

- rocker, wiper, front, illustrated on Figures 4-018 and 4-020

1шт.

11

3231781R1

IDEOGRAM

DECAL - front wiper switch, illustrated on Figure 9-120

1шт.

12

A149800

FUSE,10 Amp

- 10 ampere (Red), illustrated on Figure 4-040

1шт.

1983809C1

SEAL

- 15240 mm long, adhesive back

1шт.
