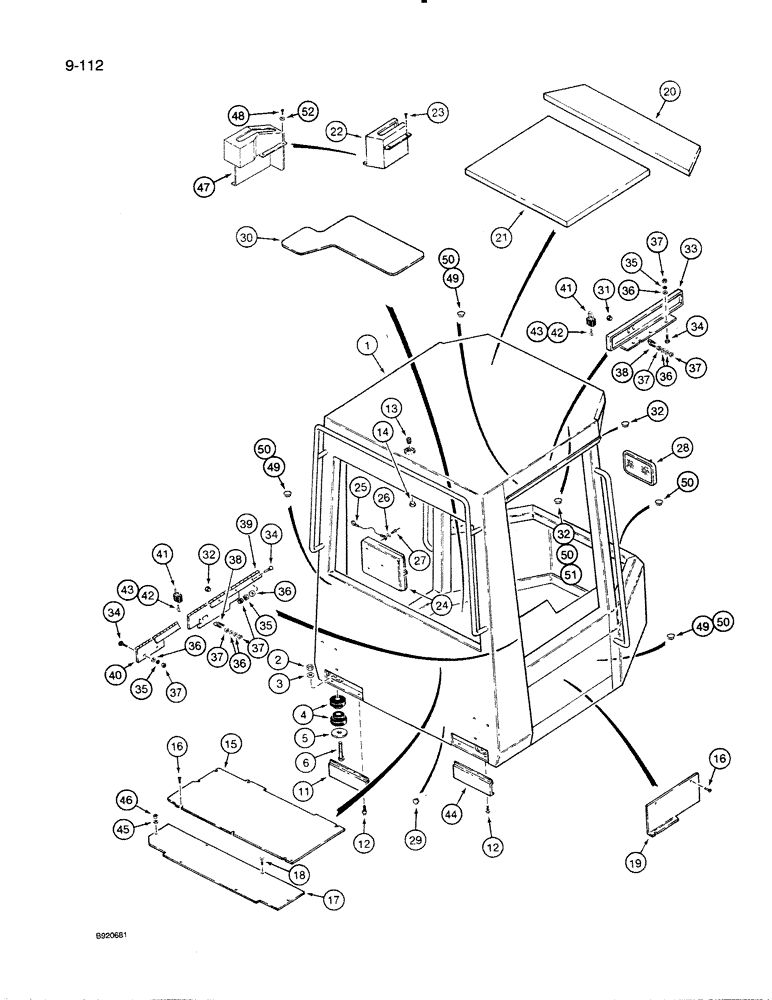

Запчасти Case 821 (9-112) - CANOPY (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CANOPY - ROPS, machinery item, order from Machinery Price List

1шт.

For current part numbers for service cabs and canopys see service bulletin.

1шт.

2

429-1014

NUT,7/8"-9, G8

- hex, 7/8 inch NC, grade 8

4шт.

3

25549R1

WASHER,15/16" x 1 3/4" x .219", HDN

- flat, 15/16 x 1-3/4 x 7/32 inch, hardened

4шт.

4

R54331

HITCH DAMPER

MOUNT - rubber, engine support

8шт.

5

1332154C1

WASHER,23mm ID x 95.3mm OD x 12.7mm Thk

- use as spacer, cab mounting

4шт.

6

426-1488

BOLT,Hex, 7/8" - 9 x 5-1/2", Gr 8

- hex, 7/8 NC x 5-1/2 inch, grade 8

4шт.

11

1339928C2

COVER

- rear, left-hand mounting access

1шт.

12

121-134

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, Hex Flg, 1/4"-20 x 3/4", G5, Full Thd

4шт.

13

221-846

PLUG,Hex Soc, 1"-11 1/2

- square socket head, 1 inch PT

1шт.

14

353-591

PLUG,2

- recessed head, inch 2

1шт.

15

1973523C3

COVER

- rear, seat support

1шт.

16

182-582

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- machine, pan head Phillips, 1/4 NC x 3/4 inch

10шт.

17

1973502C3

COVER

- drip pan cutout, if used

1шт.

18

187-1310

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW - self-tapping, hex head, 1/4 NC x 3/4 inch, if used

4шт.

19

1973535C3

COVER

- access, right-hand

1шт.

20

97381C2

PADDING

HEADLINER - canopy, front

1шт.

21

1973533C2

PADDING

HEADLINER - canopy

1шт.

22

97403C2

COVER

- lever, parking brake, canopy serial number JAB0087001, Serial Range: -JAK0024165

1шт.

23

182-582

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- machine, pan Phillips head, 1/4 NC x 3/4 inch

4шт.

24

R46464

CASE

BOX - operators manual

1шт.

25

R46465

CABLE,36mm L

CORD - manual retaining

1шт.

26

495-31022

WASHER,#10

3шт.

27

151-544

RIVET,Pop, 3/16" x .515"

- pop, 3/16 inch

3шт.

28

L74714

MIRROR

ASSEMBLY - rear view, includes mounting hardware

1шт.

29

353-411

PLUG,Dome, 1.000" hole, Nylon

Canopy frame Dome, 1.000" hole, Nylon

1шт.

30

L126989

FLOOR MAT

FLOORMAT - canopy, self-adhesive, non-skid

1шт.

31

353-402

PLUG,Dome, .375" hole, Nylon

- nylon, 3/4 inch

6шт.

32

353-404

PLUG,Dome, .500" hole, Nylon

4-9шт.

33

1977796C2

COVER

- gauge panel, overhead

1шт.

34

412-410

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 5/8", Gr 2

BOLT - carriage, 1/4 NC x 5/8 inch

8шт.

35

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

36

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

24шт.

37

425-144

JAM NUT,Jam, 1/4"-20, G5

- hex, 1/4 inch NC

24шт.

38

1977938C1

U-BOLT,1/4" - 20 x 1 7/16", Carbon Steel

- cover

4шт.

39

1977787C1

PANEL ASSY.

COVER - instrument panel, right-hand console

1шт.

40

1977792C1

COVER ASSY

COVER - control panel, right-hand console

1шт.

41

D93753

PADLOCK

- includes keys, if used, Includes: Ref. 41 and 42

2шт.

42

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, if used

2шт.

43

R29555

KEY

- for Master padlock only, if used

2шт.

44

1977687C3

COVER

- rear, right-hand mounting access

1шт.

45

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch, if used

2шт.

46

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, if used

2шт.

47

101714A1

COVER

- lever, parking brake, canopy serial number JAB0087001, Start Serial: JAK0024165

1шт.

48

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

SCREW - 1/4 NC x 3/4 inch, special

4шт.

49

353-400

PLUG,Dome, .250" hole, Nylon

6шт.

50

353-403

PLUG,Dome, .437" hole, Nylon

19шт.

51

353-410

PLUG,Dome, .875" hole, Nylon

- nylon, 7/8 inch

2шт.

52

195-81004

WASHER,0.31" ID x 0.75" OD x 0.07" Thk

- flat, 5/16 x 3/4 x 1/16 inch

4шт.
