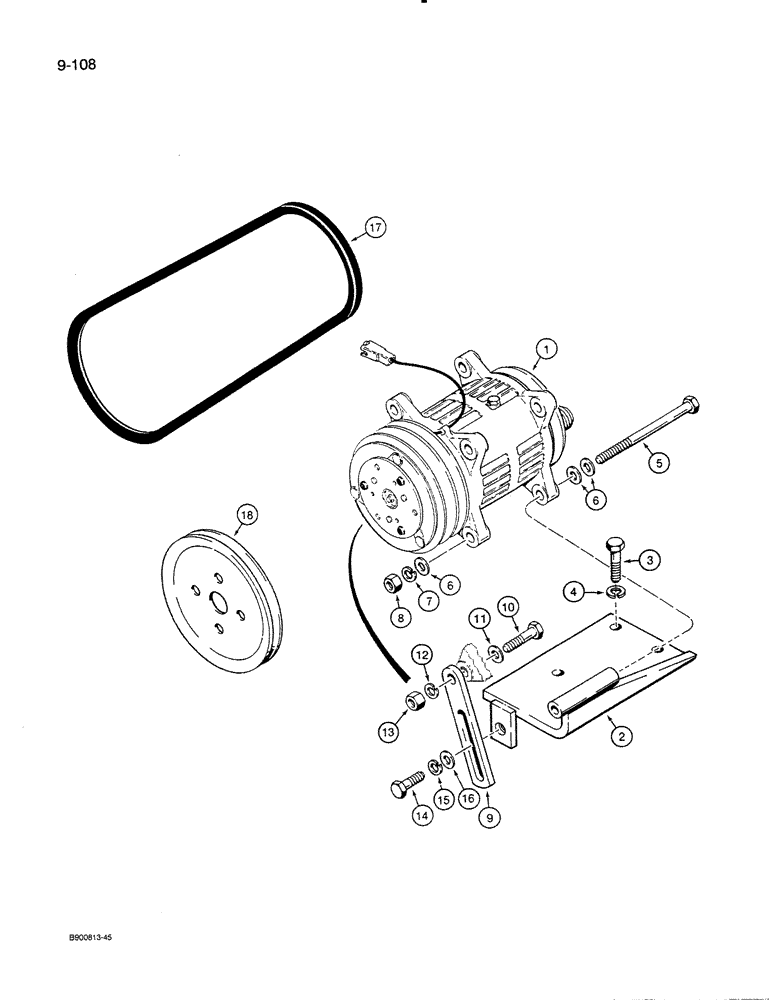

Запчасти Case 821 (9-108) - AIR CONDITIONING COMPRESSOR MOUNTING (09) - CHASSIS/ATTACHMENTS

1

97179C2

COMPRESSOR

ASSEMBLY - air conditioning, parts list Figure 9-110

1шт.

2

84715C1

BRACKET

- compressor mounting

1шт.

3

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex, 10 mm - 1.5 x 40 mm

4шт.

4

892-11010

LOCK WASHER,M10

4шт.

5

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

- hex, 10 mm - 1.5 x 130 mm

1шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

3шт.

7

892-11010

LOCK WASHER,M10

1шт.

8

825-1410

NUT,M10, Cl 8

1шт.

9

84716C1

SUPPORT

STRAP - adjusting, compressor

1шт.

10

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.5 x 35 mm

1шт.

11

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

12

892-11010

LOCK WASHER,M10

1шт.

13

825-1410

NUT,M10, Cl 8

1шт.

14

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

15

892-11010

LOCK WASHER,M10

1шт.

16

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

17

R50426

BELT

Compressor drive

1шт.

18

A189155

PULLEY

- drive, compressor

1шт.
