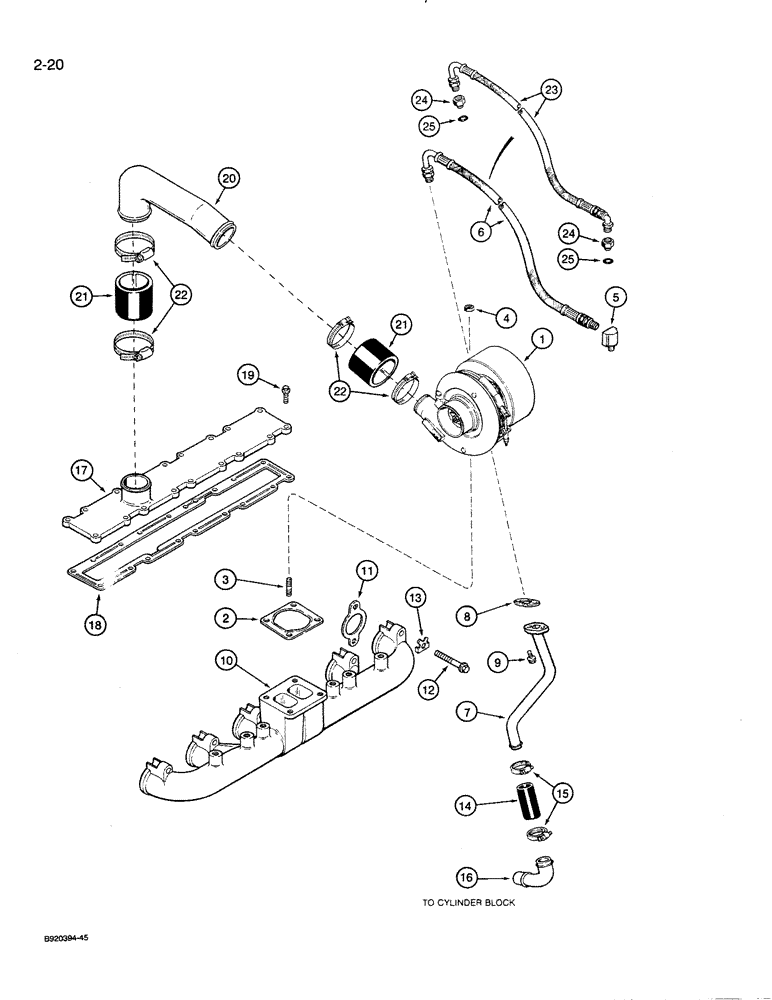

Запчасти Case 821 (2-020) - TURBOCHARGER SYSTEM AND MANIFOLDS, 6T-830 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine, parts list Figure 2-022

1шт.

2

J911941

GASKET

- turbocharger mounting

1шт.

3

J905417

STUD

- turbocharger mounting

4шт.

4

J901961

NUT

- hex, turbocharger mounting

4шт.

5

A77588

ELBOW

- adapter, 90 degree, prior to engine serial number 44487830

1шт.

6

J909548

HOSE

- oil supply, turbocharger, prior to engine serial number 44487830

1шт.

7

J917936

TUBE,22.22 mm OD x 340.6, 108.7 mm L

- drain, oil, replaces J906743

1шт.

8

J914388

GASKET

- drain tube

1шт.

9

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

2шт.

10

J906741

MANIFOLD

- exhaust

1шт.

11

J911942

GASKET

- manifold, exhaust

6шт.

12

813-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

- hex, 10 - 1.5 x 70 mm

12шт.

13

J914708

LOCKING PLATE

PLATE - locking, bolt

12шт.

14

J903745

LARGE HOSE

HOSE - turbocharger oil drain

1шт.

15

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

16

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

17

J906737

COVER ASSY

MANIFOLD - intake cover

1шт.

18

J914311

MANIFOLD GASKET

- cover, manifold

1шт.

19

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special, Intake manifold Hex Flg Hd, M8 x 1.25 x 25

18шт.

20

J906742

TUBE,63.5 mm OD

- air, cross over

1шт.

21

J916529

TRANSMISSION SLEEVE

HOSE - intake tube, replaces J904422

2шт.

22

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - hose, 1-13/16 to 2-3/4 inch

4шт.

23

J918562

HOSE

- oil supply, turbocharger, engine serial number 44487830 and after

1шт.

24

J916857

CONNECTOR, ELEC

ADAPTOR - supply hose, engine serial number 44487830 and after, Includes: Ref. 25

2шт.

25

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.
