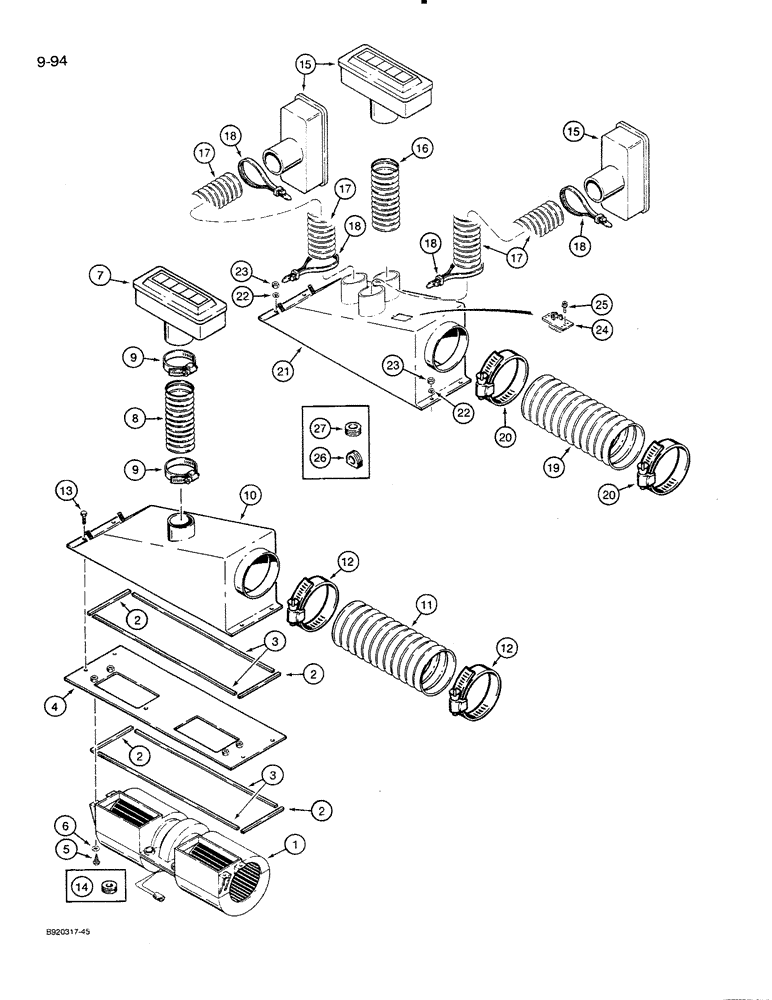

Запчасти Case 821 (9-094) - HEATING AND AIR CONDITIONING PLENUM (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

BLOWER ASSEMBLY - cab, parts list Figure 4-080

1шт.

2

1340071C1

SEAL

SEAL - 7-7/8 inch (200 mm) long, cut from 187874C2 bulk seal, see below, blower plate

4шт.

3

1340072C1

SEAL

SEAL - 20-7/8 inch (530 mm) long, cut from 187874C2 bulk seal, see below, blower plate

4шт.

4

1339685C3

PLATE ASSY.

PLATE - blower mounting

1шт.

5

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self-tapping, hex flange, 1/4 NC x 3/4 inch

4шт.

6

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

4шт.

7

1971238C1

VENT

LOUVER - heating and air conditioning, at rear window, cab s/n JAB0079501, Serial Range: -JAK0024165

1шт.

8

1970099C1

PIPE

HOSE - 63.5 ID x 163 mm long, air flow, upper, at louver, cab s/n JAB0079501, Serial Range: -JAK0024165

1шт.

9

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose retaining, cab s/n JAB0079501, Serial Range: -JAK0024165

2шт.

10

1969992C2

VENT MANIFOLD

DUCT - plenum, pressure chamber, heat and air, cab s/n JAB0079501, Serial Range: -JAK0024165

1шт.

11

1973528C1

PIPE

HOSE - 127 ID x 305 mm long, air flow, side, cab s/n JAB0079501, Serial Range: -JAK0024165

1шт.

12

214-272

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

CLAMP - side air hose, cab s/n JAB0079501, Serial Range: -JAK0024165

2шт.

13

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Cab S/N JAB0079501 Hex, 1/4"-20 x 1", G5, Serial Range: -JAK0024165

4шт.

14

1973558C1

GROMMET

- harness, rear deck, right-hand of blower mounting plate, cab s/n JAB0079501, Serial Range: -JAK0024165

1шт.

15

1971238C1

VENT

LOUVER - heating and air conditioning, cab s/n JAB0079501, Start Serial: JAK0024165

3шт.

16

1999765C1

HOSE

- 63.5 ID x 163 mm long, air flow, upper, at center louver, cut from 1999764C1 bulk hose, see below, cab s/n JAB0079501, Start Serial: JAK0024165

1шт.

17

1999754C1

AIR HOSE

HOSE - 63.5 ID x 535 mm long, air flow, upper, at side louvers, cut from 1999764C1 bulk hose, see below, cab s/n JAB0079501, Start Serial: JAK0024165

2шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon, cab s/n JAB0079501, Start Serial: JAK0024165

4шт.

19

1999763C1

HOSE

- 127 ID x 305 mm long, air flow, side, cut from 1999759C1 bulk hose, see below, cab s/n JAB0079501, Start Serial: JAK0024165

1шт.

20

214-272

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

CLAMP - adj, 4-7/8 - 5-3/4 inch dia, side air hose, cab s/n JAB0079501, Start Serial: JAK0024165

2шт.

21

1999767C1

DUCT

- plenum, pressure chamber, heat and air, cab s/n JAB0079501, Start Serial: JAK0024165

1шт.

22

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Cab S/N JAB0079501 1/4", Start Serial: JAK0024165

4шт.

23

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, cab s/n JAB0079501, Start Serial: JAK0024165

4шт.

24

F44903

RESISTOR

- blower, cab s/n JAB0079501, Start Serial: JAK0024165

1шт.

25

280-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, hex washer head, No. 10-16 x 1/2 inch, cab s/n JAB0079501, Start Serial: JAK0024165

2шт.

26

1546537C1

GROMMET

- blower wire, vertical, blower mounting plate, cab s/n JAB0079501, Start Serial: JAK0024165

1шт.

27

96901C1

GROMMET

- blower wire, horizontal, blower mounting plate, cab s/n JAB0079501, Start Serial: JAK0024165

1шт.

187874C2

SEAL

SEAL - bulk roll, 3/8 inch (10 mm) wide x 50 ft (15240 mm) long x 1/8 inch (3 mm) thick, cab s/n JAB0079501, Start Serial: JAK0024165

1шт.

1999764C1

AIR HOSE

HOSE - bulk, 63.5 ID x 50 feet, cab s/n JAB0079501, Start Serial: JAK0024165

1шт.

1999759C1

PLASTIC-RUBBER TUBE

HOSE - bulk, 127 ID x 25 feet, cab s/n JAB0079501, Start Serial: JAK0024165

1шт.
