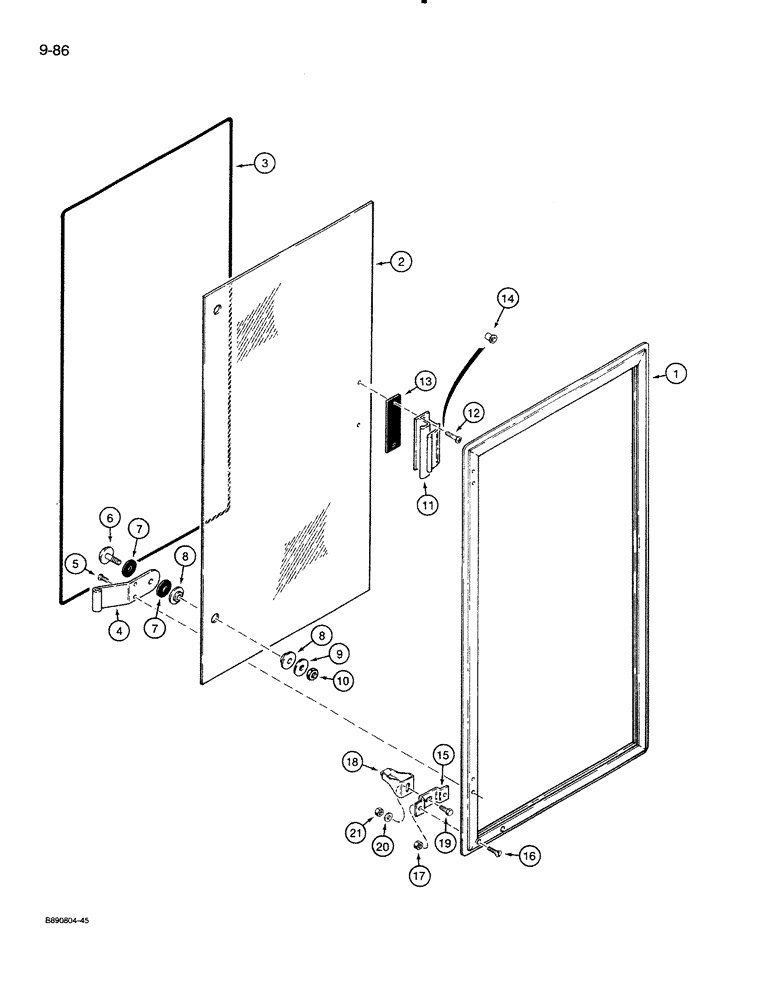

Запчасти Case 821 (9-086) - CAB DOOR WINDOW, CABS WITH ALUMINUM LATCHES FOR WINDOW (09) - CHASSIS/ATTACHMENTS

1969949C2

WINDOW ASSY

WINDOW ASSEMBLY - cab door, no longer available, order 108196A1 window assembly shown on Figure 9-088, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - window, cab door

1шт.

2

1977654C2

GLASS,CAB

GLASS - window

1шт.

4 1/4" between screw holes, center to center, for handle.

1шт.

3

1977655C1

SEAL

SEAL - 120 inch (3048 mm) long

1шт.

4

1339737C2

HINGE

- window retaining

2шт.

5

182-569

SCREW,Slotted Pan Hd, #10-32 x 1/2"

- pan head slotted, No. 10 NF x 1/2 inch

4шт.

6

1970077C1

BOLT

BOLT - round head, 1/2 NF x 1 inch

2шт.

7

1970078C1

WASHER

SEAL - rubber, 17/32 ID x 1-13/32 OD x 1/16 inch thick

4шт.

8

1970079C1

SEALING WASHER

SEAL - glass bushing

4шт.

9

1970080C1

WASHER

- flat, 17/32 x 1-13/32 x 3/32 inch

2шт.

10

1970081C1

NUT

- hex, 1/2 inch NF

2шт.

11

1339749C1

LOCK

- window

1шт.

4 1/4" between holes to fit into window Ref. 11.

1шт.

12

182-557

SCREW,Cross Pan Hd, #10-32 x 3/4"

- machine, pan Phillips head, No. 10 NF x 3/4 inch

2шт.

13

1970083C1

GASKET

- window lock

1шт.

14

1970082C1

ROUND NUT

- well, No. 10 NF

2шт.

15

1339736C1

SUPPORT

BRACKET - mounting, window catch

1шт.

16

73-414

SCREW,Slotted Fil Hd, 1/4"-20 x 7/8"

- flat slotted head, 1/4 NC x 7/8 inch

2шт.

17

129-886

CROWN NUT,Crown, 1/4"-20

- dome, 1/4 inch NC

2шт.

18

1981896C1

STOP

CATCH - window

1шт.

19

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

20

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch

1шт.

21

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

1шт.
