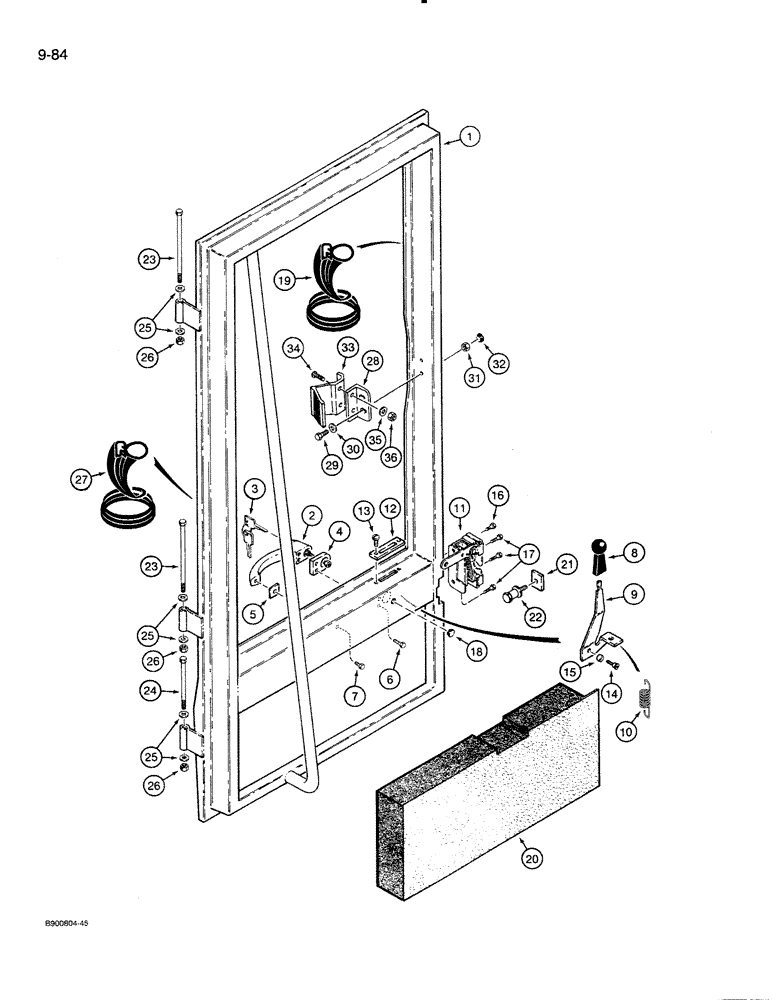

Запчасти Case 821 (9-084) - CAB DOOR AND MOUNTING, CABS WITH PLASTIC LATCHES FOR WINDOW (09) - CHASSIS/ATTACHMENTS

1

1340450C3

DOOR

FRAME - door

1шт.

2

1339958C1

HANDLE

- door, outer

1шт.

3

A77313

SET OF 2 KEYS

KEY - set of two, same as ignition key

1шт.

4

1969996C1

SUPPORT

SPACER - handle, front

1шт.

5

1969997C1

SUPPORT

SPACER - handle, rear

1шт.

6

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

7

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

1шт.

8

D135387

GRIP

KNOB - inner door handle

1шт.

9

1969988C2

HANDLE

- door, inner

1шт.

10

A163012

SPRING

- handle, inner door

1шт.

11

1339959C1

LOCK ASSY

LATCH - door striker

1шт.

12

1339925C1

LARGE PLATE

PLATE - inner door handle, if used

1шт.

13

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head slotted, self-tapping, No. 10-16 x 1/2 inch, if used

2шт.

14

61-33120

HEX SOC SCREW,5/16"-18 x 1 1/4"

BOLT - hex socket head, 5/16 NC x 1-1/4 inch

1шт.

15

1981767C1

SPACER

- handle

1шт.

16

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

1шт.

17

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

3шт.

18

353-404

PLUG,Dome, .500" hole, Nylon

1шт.

19

1987254C1

DOOR SEAL

SEAL - 3099 mm long, window, door frame

1шт.

20

1339939C2

LINING

PAD - interior cover, adhesive back, lower cab door

1шт.

21

1339560C1

LARGE PLATE

PLATE - striker

1шт.

22

R51754

STRIKER

STRIKER - door latch

1шт.

23

113-254

BOLT,Hex, 3/8" - 16 x 6-1/2", Gr 5

- hex, 3/8 NC x 6-1/2 inch

2шт.

24

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

1шт.

25

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

- thrust, plastic, hinge

6шт.

26

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, self-locking, 3/8 inch NC

3шт.

27

1987253C1

DOOR SEAL

- 4191 mm long, door

1шт.

28

1344258C1

ANGLE

BRACKET - latch mounting

1шт.

29

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

30

195-81004

WASHER,0.31" ID x 0.75" OD x 0.07" Thk

- flat, 5/16 x 3/4 x 1/16 inch

2шт.

31

131-2

NUT,1/4"-20, GB

NUT - light hex, self-locking, 1/4 inch NC

2шт.

32

353-251

PLUG,15/16"

- nylon, 15/16 inch

2шт.

33

97398C1

LOCK ASSY

LATCH - window, plastic

1шт.

34

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

35

195-81029

WASHER,#10

(7/32 x 31/64 x 3/64") #10

2шт.

36

F45165

SPECIAL NUT,#10-24

NUT - hex lock, special

2шт.
