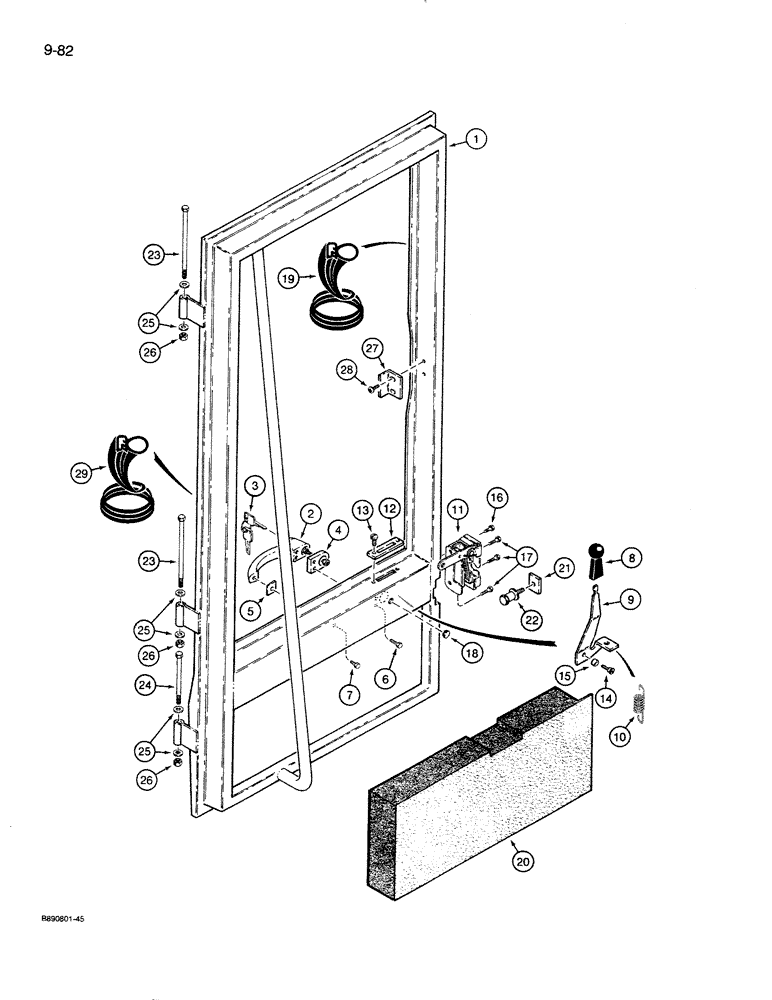

Запчасти Case 821 (9-082) - CAB DOOR AND MOUNTING, CABS WITH ALUMINUM LATCHES FOR WINDOW (09) - CHASSIS/ATTACHMENTS

1

1969995C4

DOOR

FRAME - door

1шт.

2

1339958C1

HANDLE

- door, outer

1шт.

3

A77313

SET OF 2 KEYS

KEY - set of two, same as ignition key

1шт.

4

1969996C1

SUPPORT

SPACER - handle, upper

1шт.

5

1969997C1

SUPPORT

SPACER - handle, lower

1шт.

6

814-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, 6 x 25 mm

2шт.

7

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

1шт.

8

D135387

GRIP

KNOB - inner door handle

1шт.

9

1969988C2

HANDLE

- door, inner

1шт.

10

A163012

SPRING

- handle, inner door

1шт.

11

1339959C1

LOCK ASSY

LATCH - door striker

1шт.

12

1339925C1

LARGE PLATE

PLATE - inner door handle

1шт.

13

187-1911

SELF-TAP SCREW,Slotted Pan Hd, #10 x 1/2"

SCREW - pan head slotted, self-tapping, No. 10-16 x 1/2 inch

2шт.

14

61-520

HEX SOC SCREW,5/16"-18 x 1 1/4"

BOLT - hex socket head, 5/16 NC x 1-1/4 inch

1шт.

15

1981767C1

SPACER

- handle

1шт.

16

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

17

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

18

353-404

PLUG,Dome, .500" hole, Nylon

1шт.

19

1987254C1

DOOR SEAL

SEAL - 3099 mm long, window, door frame

1шт.

20

1339939C2

LINING

PAD - interior cover, adhesive back, lower cab door

1шт.

21

1339560C1

LARGE PLATE

PLATE - striker

1шт.

22

R51754

STRIKER

STRIKER - door latch

1шт.

23

113-254

BOLT,Hex, 3/8" - 16 x 6-1/2", Gr 5

- hex, 3/8 NC x 6-1/2 inch

2шт.

24

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

1шт.

25

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

- thrust, plastic, hinge

6шт.

26

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, self-locking, 3/8 inch NC

3шт.

27

1973532C3

SUPPORT

BRACKET - window latch

1шт.

28

182-582

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- machine, pan Phillips head, 1/4 NC x 3/4 inch

2шт.

29

1987253C1

DOOR SEAL

- 4191 mm long, door

1шт.
